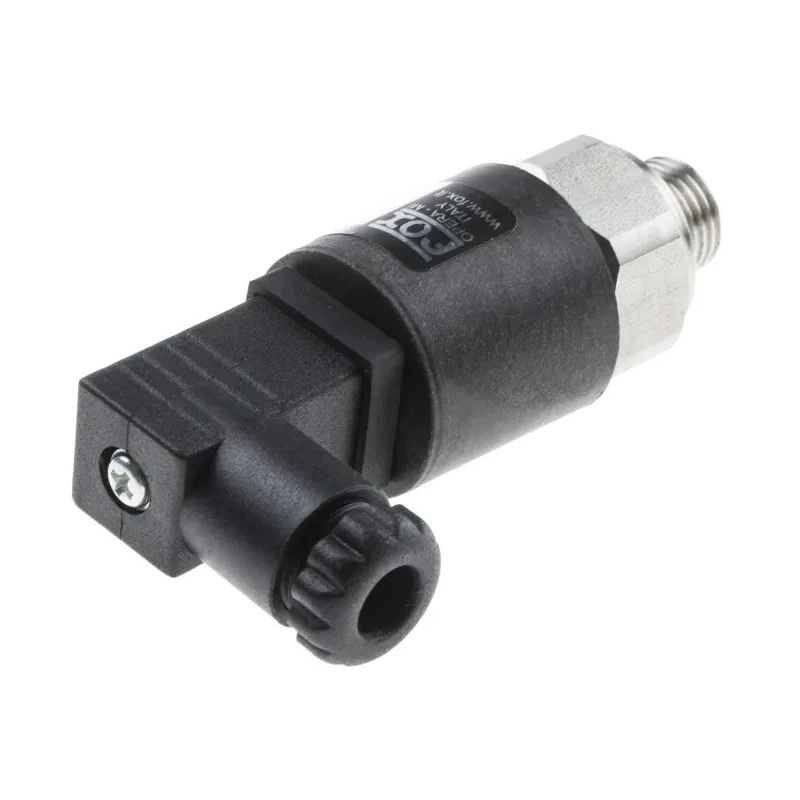

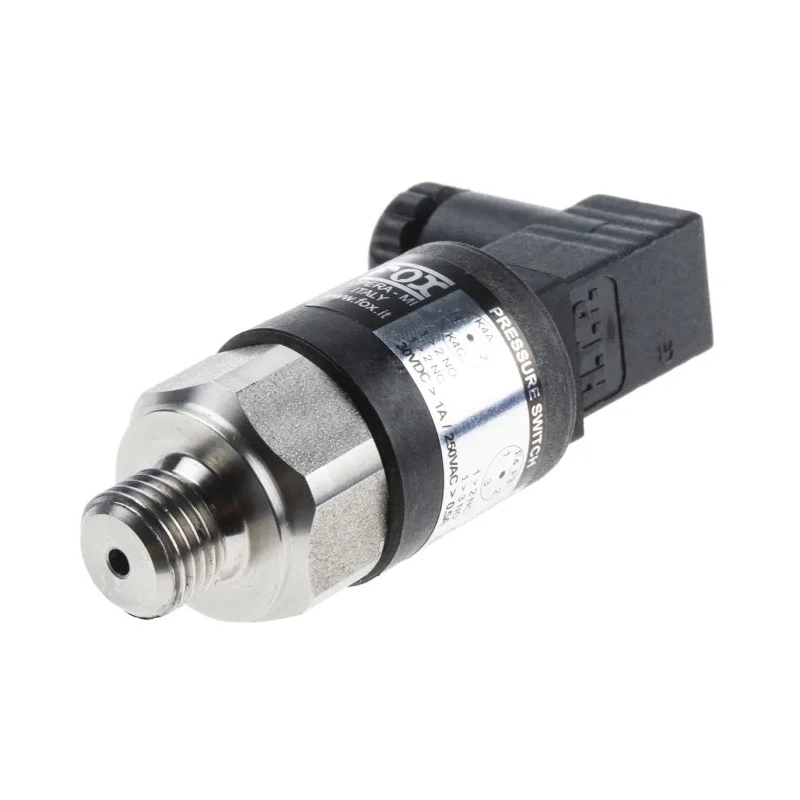

RS PRO Pressure Switch 1 NO/1 NC 1/4 in BSP Male Thread 1 bar to 12 bar 250V AC IP65 880-2289
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 250V ac |
| Brand | RS PRO |
| Maximum Operating Pressure | 12 bar |
| Current | 500mA |
| Model | 880-2289 |
| IP Rating | IP65 |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 1 NO/1 NC |
| Switch output | NO/NC |
| Port Size | 1/4 in |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | RoHS, EN, DIN, ANSI |
| Connection Thread Standard | G |
| Minimum Operating Pressure | 1bar |
| Suitable Medias | Fluid |
Key Features
- Operates at maximum pressure of 12 bar and voltage of 250V AC.
- Features 1 normally open and 1 normally closed electrical contact configuration.
- Suitable for fluids, with IP65 rating for dust and water spray resistance.
- Operates within temperature range of -25°C to +85°C for reliable performance.
- Connection thread standard G, ensuring compatibility with common fittings.
- Adjustable switching pressure via a central screw for easy setup.
- Equipped with a mechanical stop to prevent over-pressurisation damage.
- Accurate within 4% of set pressure for precise control.
Product Description
RS PRO 880-2289 Pressure Switch is designed to provide reliable pressure monitoring in hydraulic and pneumatic applications. Featuring a 1/4 inch BSP male thread and adjustable pressure range from 1 bar to 12 bar, this device ensures precise activation of electrical signals at preset pressures.
The switch’s contact configuration includes both normally open (NO) and normally closed (NC) contacts, allowing versatile integration into control circuits. Its compact design with IP65 ingress protection rating makes it suitable for harsh industrial environments where dust and water spray resistance are essential.
Operating voltage is rated at 250V AC with a maximum current of 500mA. The device is built to sustain temperatures between -25°C and +85°C and incorporates a mechanical stop feature to safeguard against overpressure damage, ensuring longevity and consistent performance.
Pressure setting is easily adjusted by turning a screw located centrally on the switch body, providing flexibility for specific application requirements. The switch meets key standards including RoHS, EN, DIN, and ANSI certifications, ensuring compliance with relevant industrial and safety regulations.
Typical applications include well water pumps, electronic gas compressor systems, and aircraft cabin pressure alarms where reliable pressure monitoring is critical. The device mounts in any orientation, and its DIN 43650 electrical connection provides ease of installation.
Operates in hydraulic and pneumatic systems involving fluids. 1/4 inch BSP male threaded connection for compatibility. Adjustable pressure range from 1 bar to 12 bar with 4% accuracy. IP65 rated for protection against dust and water spray.
Operating temperature range from -25°C to +85°C. Meets RoHS and international standards EN, DIN, ANSI. Equipped with mechanical stop to prevent overpressure damage. Includes 1 normally open and 1 normally closed contact for versatile switching.
Suitable for well water pumps, gas compressors, aircraft pressure alarms. Explore more Pressure Switches and pneumatic components in the Industrial Tools category at EnvMart for trusted solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable pressure range of this pressure switch is from 1 bar to 12 bar.
This model has an IP65 rating, providing protection against dust and water spray.
It features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact.
The maximum operating temperature for this device is 85°C.
The voltage rating of this pressure switch is 250V AC.
The minimum operating temperature is -25°C.
The maximum current this pressure switch can handle is 500mA.
The connection thread standard for this model is G, suitable for common fittings.
This pressure switch is suitable for fluids in hydraulic and pneumatic applications.
It complies with RoHS, EN, DIN, and ANSI standards.
The pressure setting is adjusted via a central screw located on the switch body.
Yes, this pressure switch can be mounted in any orientation.
