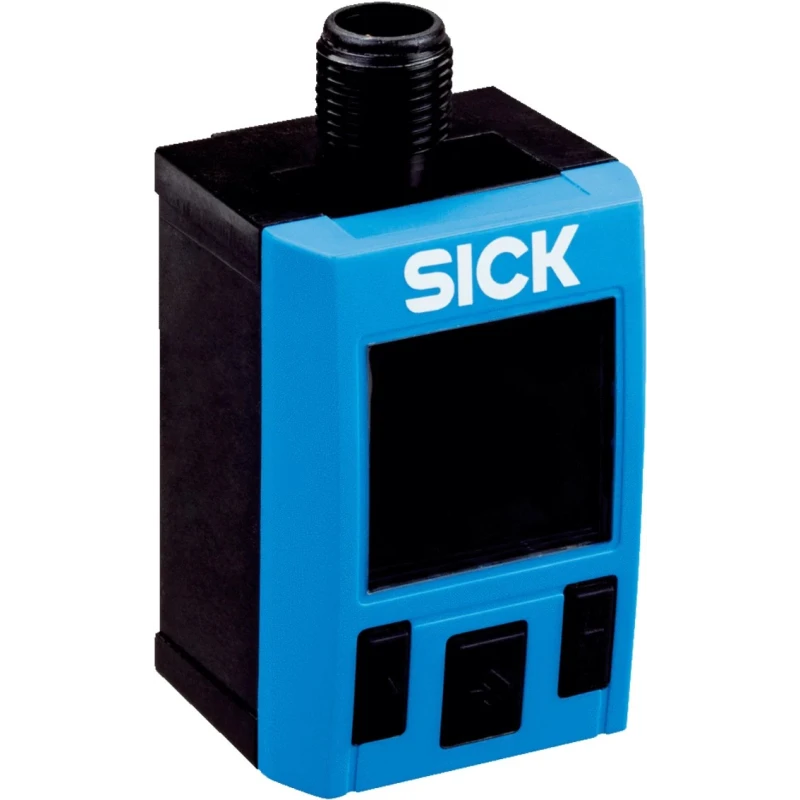

SICK Pressure Switch Gauge Pressure -1 bar to 0 bar, 30V dc, 40mA Output PAC50-ACA / 1062951

SICK PAC50-ACA / 1062951 pressure switch is a precision instrument designed for monitoring gauge pressure ranging from -1 bar to 0 bar with a voltage of 30V dc and current rating of 40mA. It is widely used in industrial environments for pneumatic pressure measurement and control in machines and systems.

The device features a large bi-color LED display that shows system pressure, output states, and switching points clearly, enabling quick visual status recognition. Users operate it easily via three large function keys with an intuitive menu navigation system, allowing for simple and fast commissioning.

This pressure switch has two independently programmable digital switching outputs and an optional analog output (0 to 10 V dc, 4 to 20 mA), providing flexible integration with various control systems. Its robust design with IP65 and IP67 enclosure ensures durability and reliability in harsh industrial conditions, including dust and water exposure. It also supports mounting on DIN rails, walls, or switch panels for installation versatility.

The PAC50 model's measuring range supports gauge pressures including vacuum and overpressure from -1 bar to 0 bar. It is suitable for media such as air and gas and uses a female port with DIN ISO 16030 thread standard. Operating temperatures range from 0°C to 60°C, with a compact size of 35mm width, 63mm height, and 35mm depth.

Typical industrial applications include compressed-air monitoring for machines and systems, leak detection in compressed air networks, pressure measurement in maintenance units, and vacuum monitoring in robotics and handling systems. The device’s advanced display functions and IO-Link compatibility reduce downtime by enabling quick parameter passing to the sensor when changing formats or replacements.

The product complies with EMC Directive 2004/108/EC and EN 61326-2-3 standards for electromagnetic compatibility. Manufactured in Thailand, the SICK PAC50-ACA / 1062951 pressure switch offers a convenient and cost-effective solution for controlling pneumatic pressure in industrial, laboratory, HVAC, manufacturing, and agricultural applications.

Equipped with a push pull, NPN, two x PNP switch output for versatile control system integration. Suitable for air and gas media under gauge pressure conditions. Features dual independently programmable switching outputs with optional analogue output 0 to 10 V dc and 4 to 20 mA.

Robust IP65 and IP67 rated enclosure ensures water and dust resistance in industrial environments. Equipped with a large bi-color LED display and three large function keys for intuitive operation and quick status indication.

Mounts easily on DIN rail with flexible installation on wall or switch panel. Operating temperature range from 0°C to 60°C suitable for various industrial applications. Measuring range supports vacuum and overpressure gauge pressure from -1 bar to 0 bar.

Manufactured in Thailand with compliance to EMC Directive 2004/108/EC and EN 61326-2-3 standards. Ideal for compressed-air monitoring, vacuum monitoring in robotics, and leakage detection in compressed air systems. Explore the comprehensive range of Pressure Switches and sensors at EnvMart for industrial and pneumatic tool applications.
