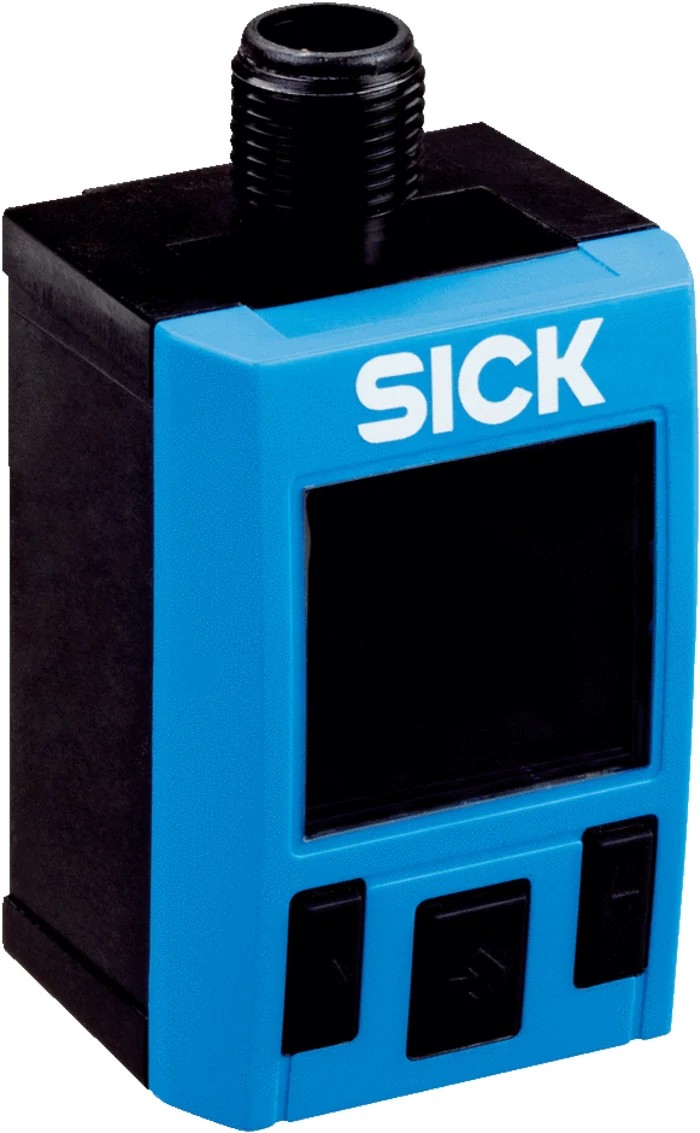

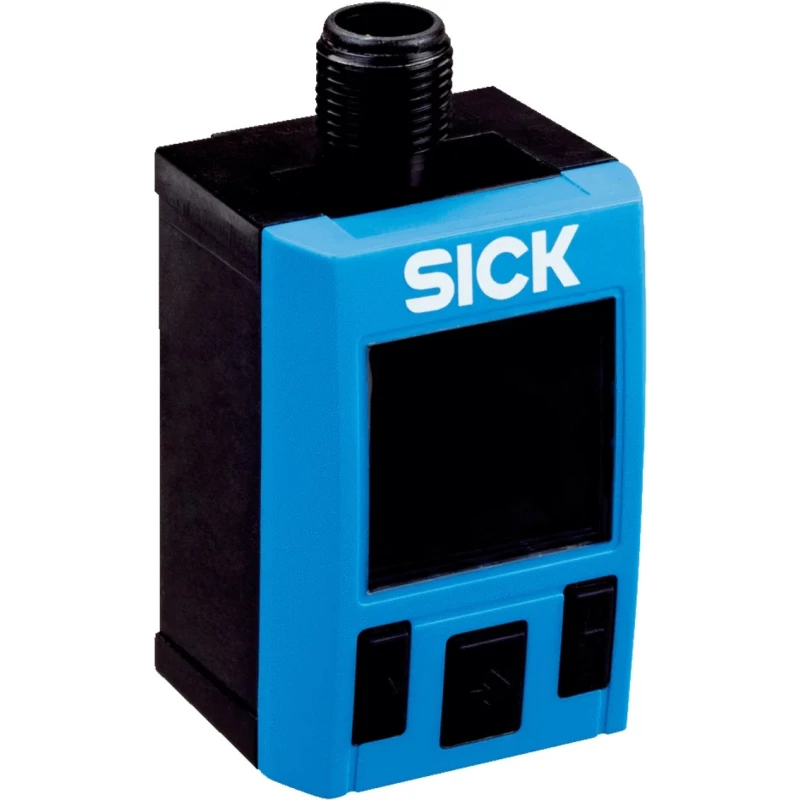

SICK Pressure Switch 0 bar to 6 bar, 1/4 in Port Size, 30V DC, 40mA, Gauge Pressure, PAC50-CGA PAC50-CGA / 1062970

SICK PAC50-CGA Pressure Switch 0 bar to 6 bar is engineered for precise pneumatic pressure measurement and vacuum applications with a 1/4 inch female port and a robust design capable of withstanding environmental challenges. Operating at 30V DC and 40mA current, it supports gauge pressure for air and gas, making it suitable for diverse industrial environments from manufacturing to automation.

This pressure switch features a large, easily readable bi-color display that indicates system pressure, output states, and switching points, giving operators immediate visual feedback on system conditions. Three large function keys enable straightforward and intuitive menu navigation, facilitating quick commissioning and parameter adjustments.

With two independently programmable PNP, push-pull, and NPN switching outputs and optional analog outputs (0 to 10 V DC, 4 to 20 mA), this device integrates seamlessly with control systems. Its modular design allows mounting on DIN rails, walls, or switch panels, providing installation flexibility.

Designed with an IP65 and IP67 enclosure rating, this pressure switch tolerates dust, water ingress, and rough industrial settings. It is RoHS compliant, holds CRUus certification, and meets EMC standards per EN 61326-2-3 and the EMC 2004/108/EC directive, ensuring quality and safety. The device does not have hazardous area certification.

Typical applications include compressed-air monitoring in machines, pneumatic pressure measurement in food slicers, vacuum monitoring in robotics, leakage measurement in closed compressed air systems, and pressure management in air maintenance units. The built-in LED indicator and configurable outputs enhance operational oversight and control.

Large bi-color display for clear output status indication. Two configurable digital switching outputs with analog output option. Intuitive menu operation via three function keys. Durable IP65/IP67 rated housing for industrial use.

Flexible mounting options including DIN rail and wall installation. Compliance with major safety and EMC standards. Suitable for air and gas media pressure measurement. Enables efficient commissioning and process control.

Package contents include the SICK PAC50-CGA Pressure Switch with specified mounting and connection options. The product is manufactured in Thailand and intended for industrial, laboratory, pneumatic, and fluid power applications. For more Pressure Switch options, explore the Industrial Tools & Equipment category at EnvMart.
