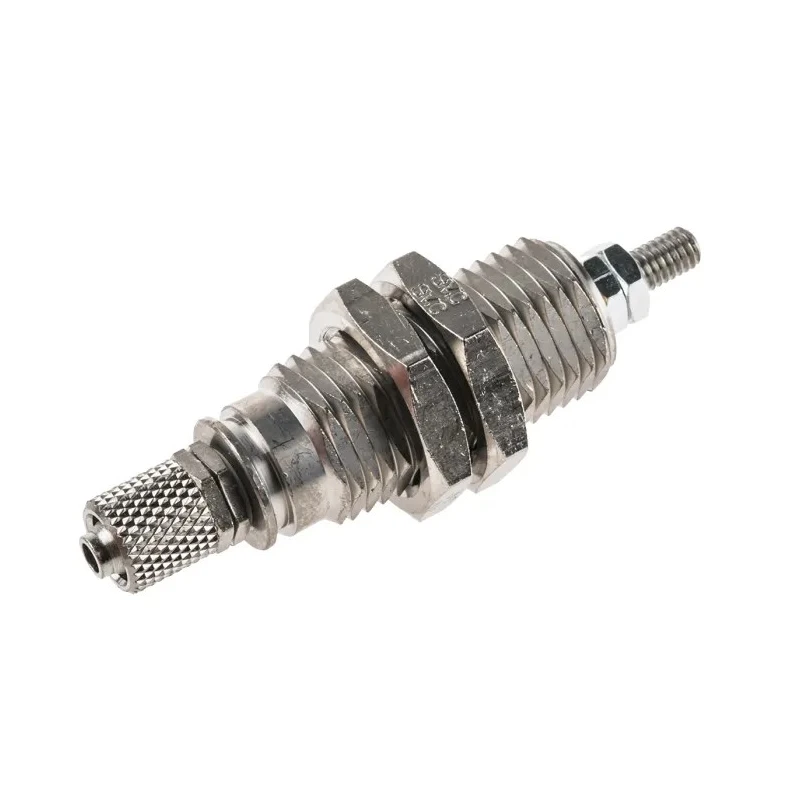

SMC 15 mm Pneumatic Piston Rod Cylinder Single Acting Panel Mount Brass Body 46mm Length 15mm Stroke 70°C Max CJPB10-15H6Z

SMC CJPB10-15H6Z pneumatic piston rod cylinder is a compact, single acting actuator from the CJP series designed for panel mounting applications. It features a 15 mm bore with a 46 mm body length and 15 mm stroke, manufactured with a brass body to ensure durability and corrosion resistance in industrial environments.

This cylinder operates with spring return to perform single acting motions, eliminating the need for external return mechanisms and simplifying pneumatic circuit design. It supports operating pressures up to 7 bar with a proof pressure of 10.5 bar, allowing reliable performance under standard pneumatic conditions.

The product supports piston speeds up to 500 mm/s and works efficiently at ambient and fluid temperatures ranging from 5°C to 60°C, with a maximum operating temperature of 70°C. The piston rod is metric threaded, facilitating straightforward mechanical integration.

Lubrication is not required for this cylinder, which reduces maintenance overhead and suitable for use in clean environments. The stroke tolerance of +1.0 mm allows for precision control in automated pneumatic systems.

This Pneumatic Piston Rod Cylinder is suitable for diverse industrial sectors including manufacturing automation, packaging machinery, HVAC systems, and laboratory pneumatic tools. Its panel mount design ensures easy installation and replacement in various setups.

Durable brass body construction for strength and corrosion resistance. Single acting spring return operation for simplified systems. Compact size with 46 mm length and 15 mm stroke for precise actuation. Metric threaded piston rod for standard mechanical connections.

Supports operating pressures from 1.5 to 7 bar with 10.5 bar proof pressure. Non-lubricated design for low maintenance and clean operation. Maximum operating temperature up to 70°C for versatile industrial use. Stroke tolerance of +1.0 mm for accurate motion control.
