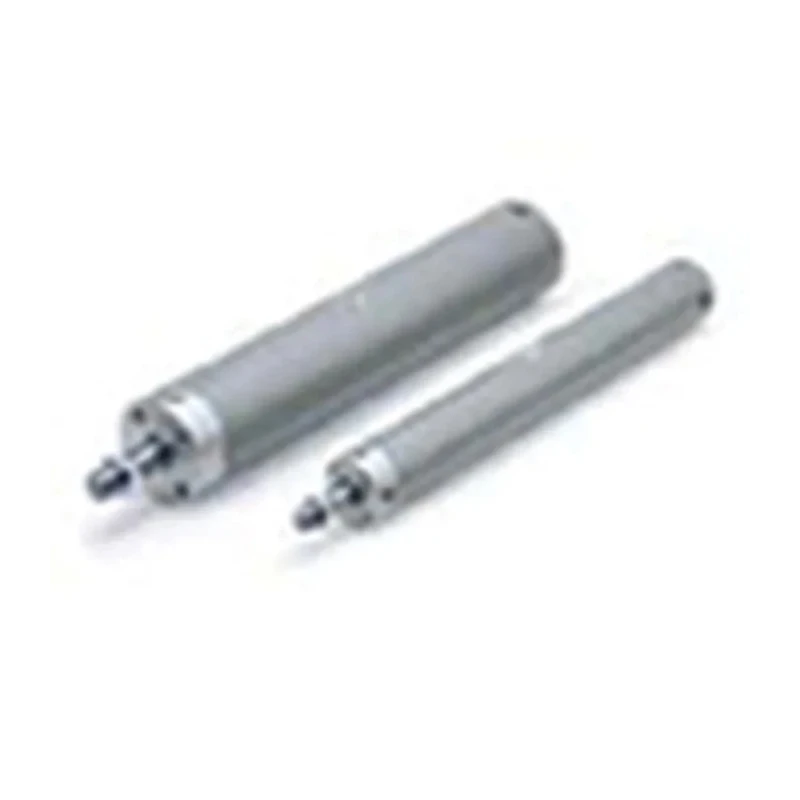

SMC Pneumatic Piston Rod Cylinder CG1 Series 125 mm Stroke Length Aluminium Alloy Body CDG1BN20-125Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1.0 MPa |
| Model | CDG1BN20-125Z |
| Mount Type | Basic, Axial Foot, Head, Rod Flange, Rod Trunnion, Clevis |
| Series | CG1 |
| Maximum Operating Temperature | 60°C |
| Cushion | Rubber bumper |
| Stroke Length | 125mm |
| Proof Pressure | 1.5 MPa |
| Standards/Approvals | RoHS |
| Cushioning Type | Rubber Bumper |
| Minimum Operating Pressure | 0.05 MPa |
| Piston Rod Gender | Male/Female |
Key Features
- Double acting, single rod cylinder with built-in magnet for precise operation.
- Multiple mounting options including Basic, Axial Foot, Head, Rod Flange, Rod Trunnion, and Clevis.
- Rubber bumper cushioning ensures controlled stroke end and noise reduction.
- Operates with maximum pressure of 1.0 MPa and proof pressure up to 1.5 MPa for safety.
- Low minimum operating pressure of 0.05 MPa allows sensitivity in control.
- Compatible with male and female piston rod genders for versatile installation.
- Maximum operating temperature of 60°C suitable for various industrial environments.
- Designed to meet RoHS standards for environmental compliance.
Product Description
SMC CDG1BN20-125Z Pneumatic Piston Rod Cylinder CG1 Series with 125 mm stroke length is engineered for a wide range of industrial pneumatic actuating tasks. The aluminium alloy body construction provides durability and corrosion resistance, making it suitable for demanding environments.
This double acting, single rod air cylinder includes a built-in magnet for facilitating auto switch capability, enhancing automation and feedback control systems. The cylinder supports multiple versatile mounting methods including Basic, Axial Foot, Head, Rod Flange, Rod Trunnion, and Clevis to accommodate different assembly requirements.
The rubber bumper cushioning type minimizes impact noise and provides smooth operation with low breakaway pressure, enabling precise linear motion control. It offers a maximum operating pressure of 1.0 MPa with proof pressure of 1.5 MPa, ensuring robust safety margins in pneumatic systems. The low minimum operating pressure of 0.05 MPa enhances responsiveness in control applications.
The piston rod design allows for both male and female thread options, providing compatibility with a variety of industrial setups. This cylinder maintains performance at a maximum operating temperature of 60°C, suitable for many manufacturing, automation, and material handling usage scenarios.
Compliance with RoHS standards confirms its environmental safety, aligning with industrial regulations and practices. Double acting, single rod with built-in magnet for automation feedback. Multiple mounting styles for flexible integration in machinery.
Rubber bumper cushioning for smooth and quiet operation. Maximum operating pressure of 1.0 MPa with safety proof pressure of 1.5 MPa. Low minimum operating pressure of 0.05 MPa for sensitive control. Compatible with male and female piston rod types.
Operates reliably up to 60°C ambient temperature. Certified RoHS compliant for environmental standards.
This SMC pneumatic cylinder is ideal for industrial automation, manufacturing equipment, packaging machinery, and pneumatic actuator applications requiring reliable and precise linear motion control. Explore the range of SMC Pneumatic Piston Rod Cylinders for diverse bore sizes and mounting options available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 125 mm.
It has a maximum operating pressure of 1.0 MPa and a proof pressure of 1.5 MPa.
The body of this cylinder is made from aluminium alloy, providing durability and corrosion resistance.
This model supports multiple mounting methods including Basic, Axial Foot, Head, Rod Flange, Rod Trunnion, and Clevis.
The minimum operating pressure is 0.05 MPa, allowing for sensitive control.
It operates reliably at a maximum temperature of 60°C.
Yes, it features rubber bumper cushioning to minimize impact noise and provide smooth operation.
This cylinder is compatible with both male and female piston rod genders for versatile installation.
Yes, it is designed to meet RoHS standards for environmental compliance.
It is ideal for industrial automation, manufacturing equipment, packaging machinery, and pneumatic actuator applications.
The built-in magnet facilitates auto switch capability, enhancing automation and feedback control systems.
This model belongs to the CG1 Series of pneumatic cylinders.
