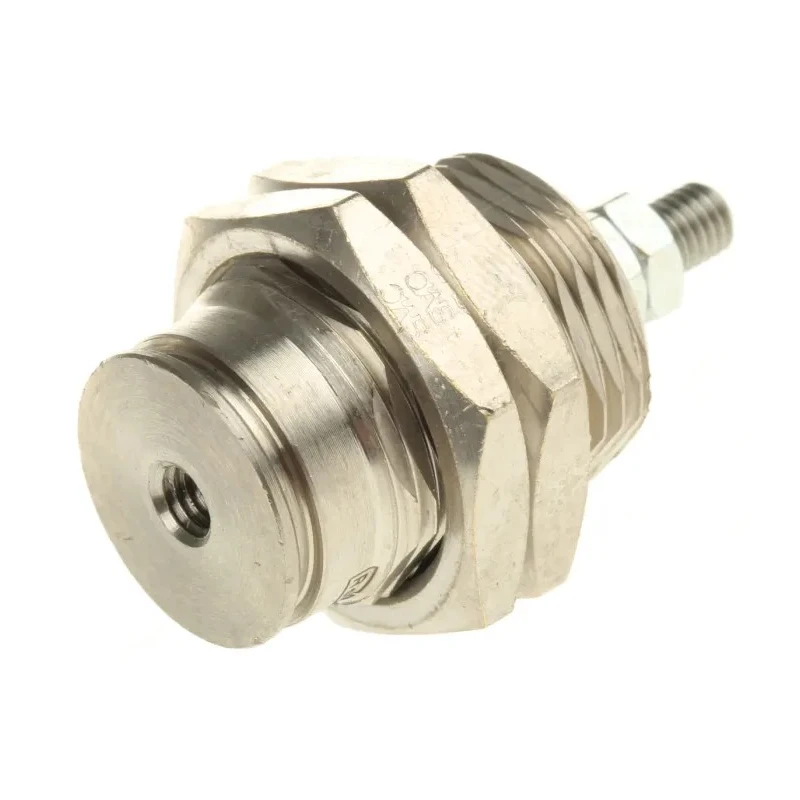

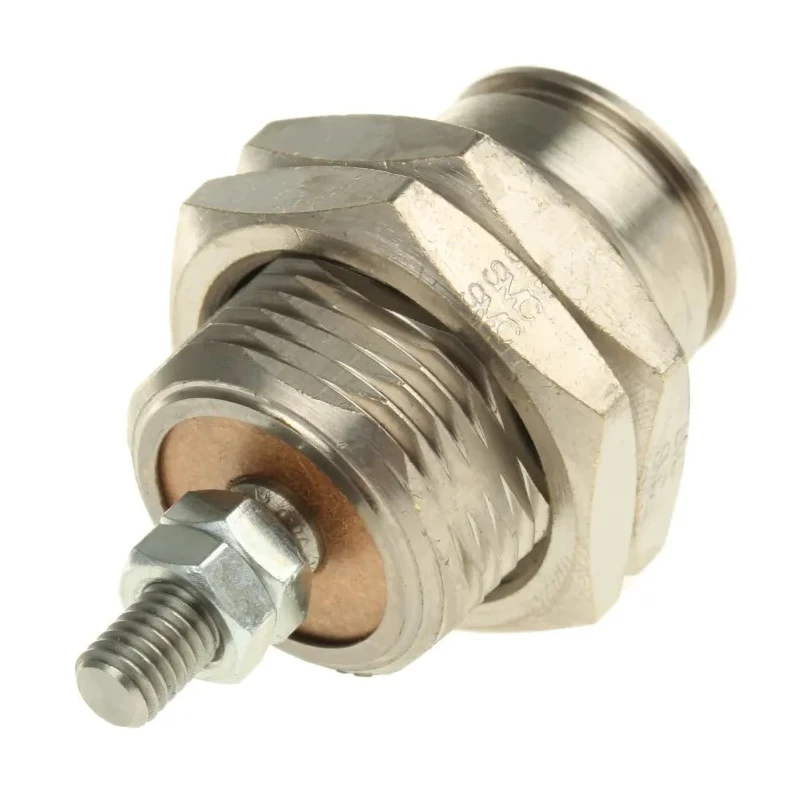

SMC 10 mm Pneumatic Piston Rod Cylinder Single Acting Panel Mount Brass Body 43.5mm Length Stroke 10mm CJPB16-10H6Z

SMC CJPB16-10H6Z Pneumatic Piston Rod Cylinder is a robust and compact single acting pneumatic cylinder designed for panel mounting. It features a brass body and a durable spring return rod type.

With a stroke length of 10mm and an overall length of 43.5mm, this cylinder operates reliably within an ambient temperature range of 5°C to 60°C and a maximum operating temperature of 70°C. The cylinder is designed without cushioning and supports a maximum piston speed of 500 mm/s, making it suitable for precise pneumatic control tasks.

The piston rod uses a metric threaded standard for easy integration with existing setups. Backed by a proof pressure of 10.5 bar and a safe operating pressure ranging from 1.5 to 7 bar depending on diameter, this model ensures durability and safety in pneumatic automation.

This Pneumatic Piston Rod Cylinder is ideal for industrial automation, manufacturing machinery, fluid power equipment, and laboratory automation where compact and reliable actuation is necessary.

Single acting cylinder with spring return mechanism. Panel mount for secure and straightforward installation. Heavy-duty brass body with high corrosion resistance. Stroke tolerance within +1.0mm ensuring predictable motion.

Non-cushioned piston design for simple pneumatic applications. Maximum operating temperature of 70°C suitable for various environments. Metric threaded rod end facilitates standard fittings. Proof pressure rating at 10.5 bar for safety margin.

Maximum piston speed of 500 mm/s ensures responsive operation.

The SMC CJPB16-10H6Z aligns well with industrial pneumatic tooling and fluid power needs, supporting manufacturing, HVAC systems, laboratory instrumentation, and construction machinery automation.
