ACE Shock Absorber M8 x 1 Thread Size, 28.5 mm Body Length, 38.5 mm Overall Length, MC Series, Model MC10MH-B

ACE MC10MH-B shock absorber, part of the MC series, features an M8 x 1 thread size with a body length of 28.5 mm and an overall length of 38.5 mm. This industrial-grade shock absorber is engineered for precise energy dissipation in mechanical and fluid power applications.

The self-compensating miniature design supports effective weights ranging from 0.3 kg up to 36 kg, making it highly versatile for various industrial machinery and pneumatic actuator systems. Constructed with a steel body coated with Weartec-Plus for enhanced corrosion resistance in harsh environments, it also includes a hardened stainless steel piston rod and a rod end button designed with noise suppression inserts, ensuring minimal operational noise and extended service life.

Operating reliably within a temperature range of 0°C to +65°C, the shock absorber handles impact velocities of 0.15 m/s to 5 m/s. The maximum energy capacity per hour is rated at 4000 Nm, with a per-cycle capacity of 1.25 Nm. The integral mechanical stop at the front end enhances shock control effectiveness while the maximum return force of 4 N provides efficient energy recovery.

Universal mounting and stop collar accessories, sold separately, allow for flexible installation options. This product is manufactured in the United States under strict quality standards, ensuring durability and consistent performance for industrial, manufacturing, and pneumatic system applications.

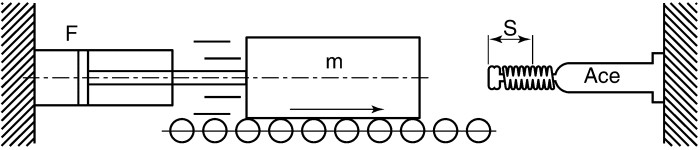

Utilize ACE MC10MH-B shock absorbers in pneumatic cylinders and actuators requiring reliable shock absorption and long-lasting operation. This product supports applications in sectors including industrial automation, mechanical tooling, and fluid power control systems.

Self-compensating miniature type suitable for effective weights from 0.3 kg to 36 kg. Steel body with Weartec-Plus finish for harsh environments. Hardened stainless steel piston rod and noise suppression rod end button. Operating temperature range from 0°C to 65°C for robust performance.

Maximum energy capacity per hour of 4000 Nm and per cycle of 1.25 Nm. Includes integral mechanical stop at front end for impact velocity range 0.15 m/s to 5 m/s. Maximum return force is 4 N ensuring effective shock absorption.

Universal mounting and stop collar attachments are available separately. Manufactured in the United States ensuring quality and durability. Explore more Shock Absorbers and pneumatic cylinder accessories in the Hydraulic & Pneumatic Tools category on EnvMart for diverse industrial needs.
