ACE Shock Absorber M20 x 1.5 Thread Size 79.2 mm Body Length 96.7 mm Overall Length 12.7 mm Stroke Length MC225EUM

Category Shock Absorber Brand ACE Condition New

Specifications

Country of Origin India
Brand ACE
Length 79.2mm
Model MC225EUM
Overall Length 96.7mm
Series MC
Maximum Operating Temperature 66°C
Thread Size M20 x 1.5
Minimum Operating Temperature 0°C
Stroke Length 12.7mm
Thread Standard UNF
Maximum Energy Capacity Per Cycle 41Nm
Maximum Return Force 9N
Maximum Energy Capacity Per Hour 45000Nm
ACE Shock Absorber, MC225EUM-V4A, 72mm Body LengthBrand ACE

Key Features

  • Features a steel body with Weartec-Plus finish for enhanced durability.
  • Hardened stainless steel piston rod and noise suppression rod end button improve reliability.
  • Suitable for small automation equipment and installations with universal mounting options.
  • Operates effectively in temperatures ranging from 0°C to 66°C.
  • Handles impact energies up to 41 Nm per cycle and 45000 Nm per hour.
  • Thread size M20 x 1.5 with UNF thread standard ensures compatibility.
  • Stroke length of 12.7 mm and overall length of 96.7 mm for precise motion control.
  • Maximum return force rated at 9 N to maintain stability during operation.

Product Description

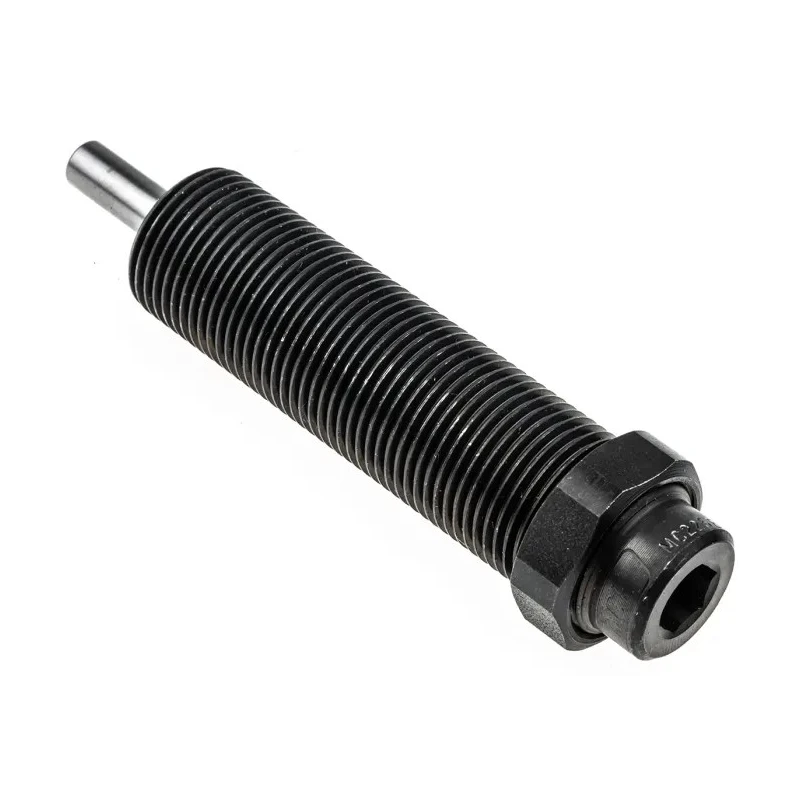

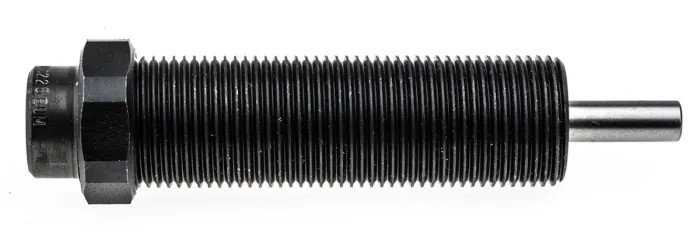

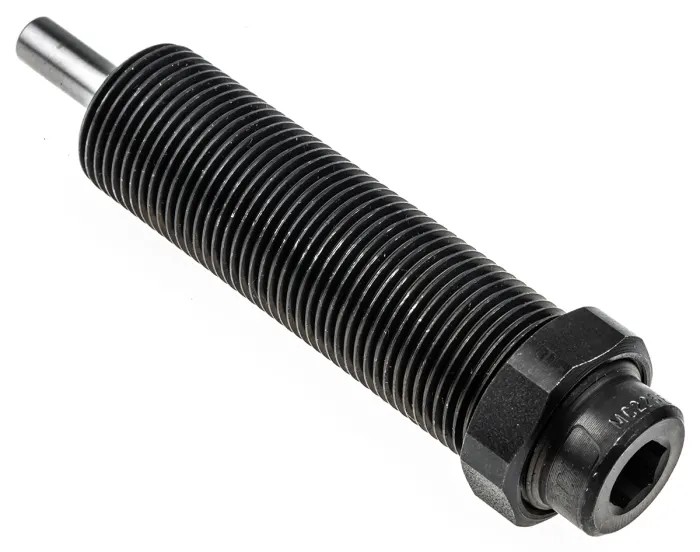

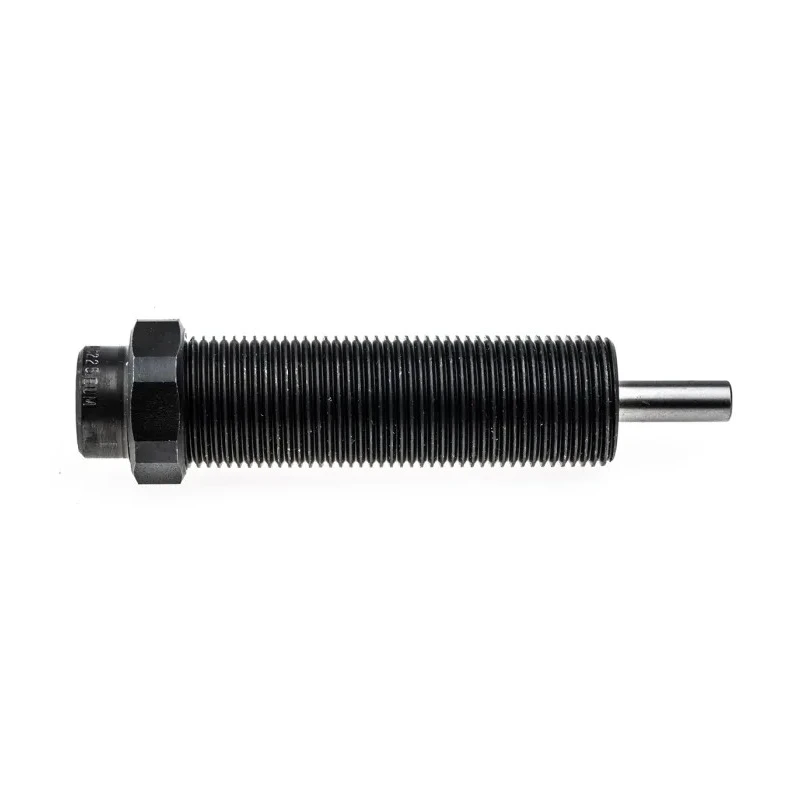

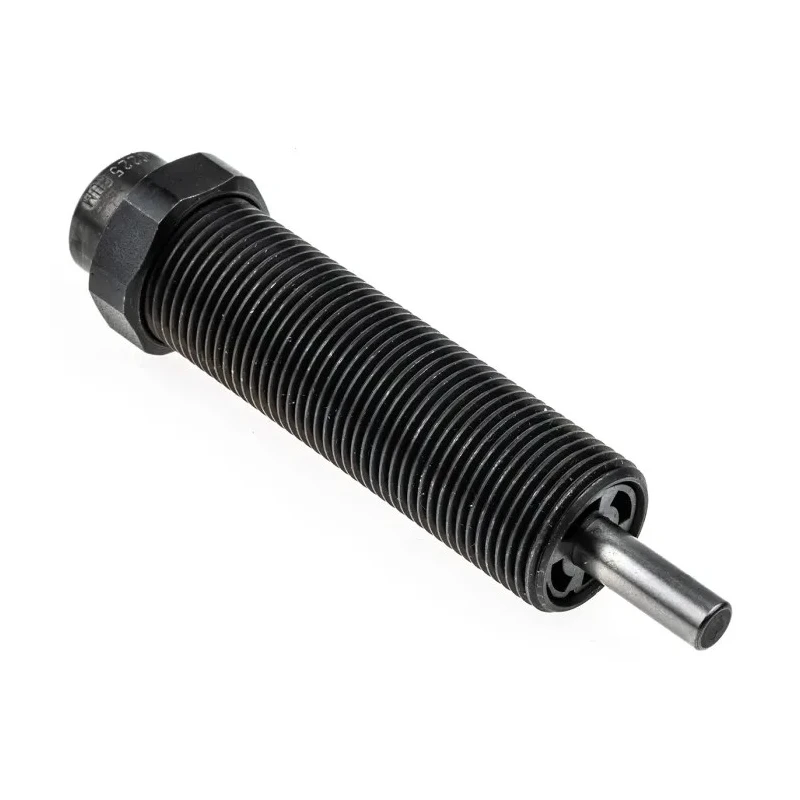

ACE MC225EUM shock absorber is a self-compensating type designed for small automation equipment and precise pneumatic cylinder operations. It features a compact design with a steel body finished in Weartec-Plus for harsh environment resistance. The hardened stainless steel piston rod combined with noise-reducing rod end button ensures quiet and reliable performance in industrial or laboratory pneumatic systems.

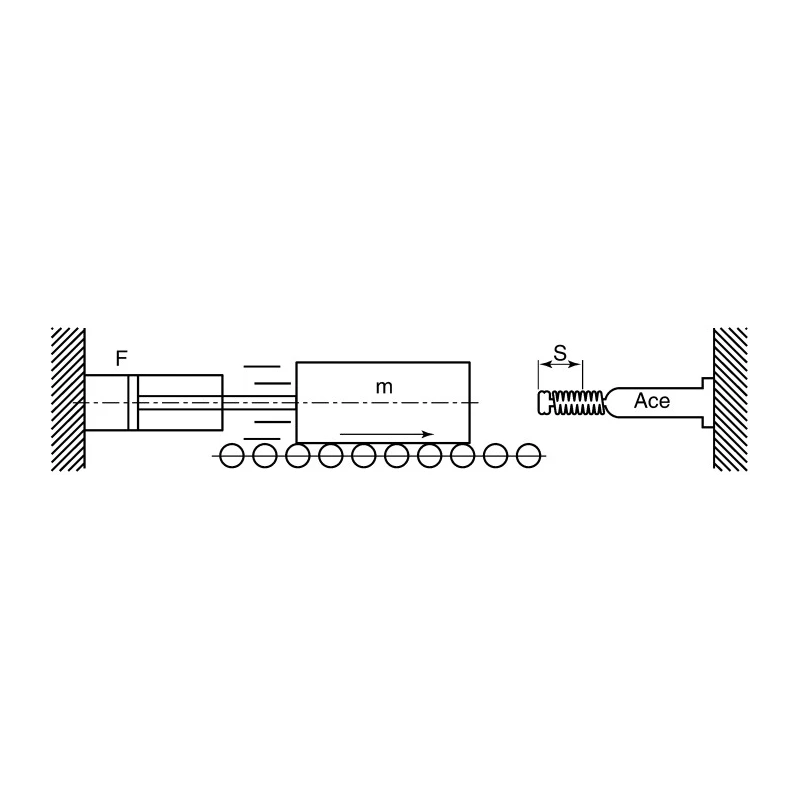

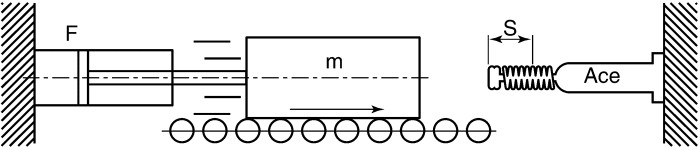

This shock absorber provides superior energy absorption, capable of handling up to 41 Nm per cycle and 45000 Nm per hour, making it ideal for end-of-stroke cushioning applications. The operating temperature range from 0°C to 66°C supports diverse industrial environments. Its thread size of M20 x 1.5 with UNF thread standard ensures secure mounting and compatibility with various Pneumatic Cylinders and Actuators.

Installation flexibility is enhanced by the capability to mount in any position. Optional accessories including AH series stop collars, MB series mounting blocks, and KM series lock nuts allow customization according to application needs. The hermetically sealed design eliminates maintenance and extends the product lifespan, supporting reliable, long-term operation.

Steel body finished with Weartec-Plus for corrosion and wear resistance. Hardened stainless steel piston rod for durability and smooth operation. Noise suppression rod end button reduces operational sound. Universal mounting allows flexible installation positions.

Capable of handling effective weights from 0.9 kg to 2300 kg. Operating temperature from 0°C to 66°C suited for various environments. Impact velocity range between 0.08 m/s to 6 m/s permits adaptable use cases. Maximum return force of 9 N provides steady positioning.

Optional nylon button for enhanced impact cushioning. Stop collars, mounting blocks, and locknuts available separately.

This ACE Shock Absorber model MC225EUM is ideal for industrial automation, pneumatic machinery, laboratory instruments, manufacturing equipment, and other facilities requiring precise energy absorption and cushioning. The product is distributed by EnvMart, offering reliable pneumatic solutions for fluid power needs.

ACE Shock Absorber M20 x 1.5 Thread Size 79.2 mm Body Length 96.7 mm Overall Length 12.7 mm Stroke Length MC225EUM
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The stroke length of this model is 12.7 mm, allowing for precise motion control in applications.

This shock absorber can handle a maximum energy capacity of 41 Nm per cycle, making it suitable for end-of-stroke cushioning.

It features a thread size of M20 x 1.5 with a UNF thread standard, ensuring compatibility with various pneumatic cylinders and actuators.

The operating temperature range for this model is from 0°C to 66°C, accommodating diverse industrial environments.

The maximum return force is rated at 9 N, which helps maintain stability during operation.

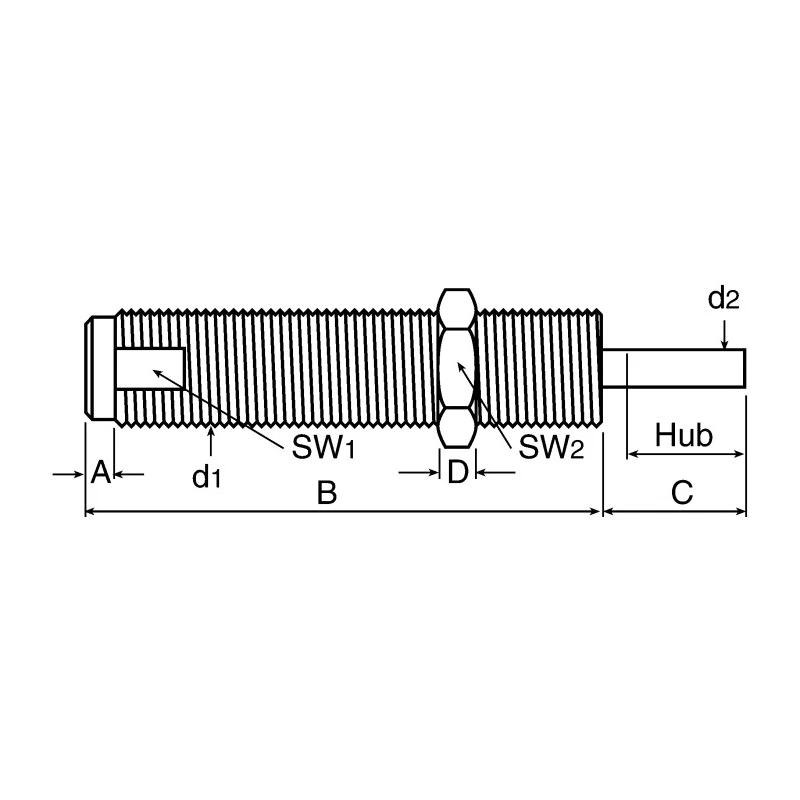

The overall length is 96.7 mm and the body length is 79.2 mm, providing a compact design suitable for small automation equipment.

This model is ideal for industrial automation, pneumatic machinery, laboratory instruments, and manufacturing equipment requiring precise energy absorption.

Optional accessories include AH series stop collars, MB series mounting blocks, and KM series lock nuts for customization according to application needs.

It features a hardened stainless steel piston rod and a noise suppression rod end button, which improve reliability and reduce operational sound.

This shock absorber can handle a maximum energy capacity of 45000 Nm per hour, making it effective for continuous operations.

Yes, this model allows for universal mounting options, enhancing installation flexibility in various applications.

It is capable of handling effective weights from 0.9 kg to 2300 kg, making it versatile for different applications.
