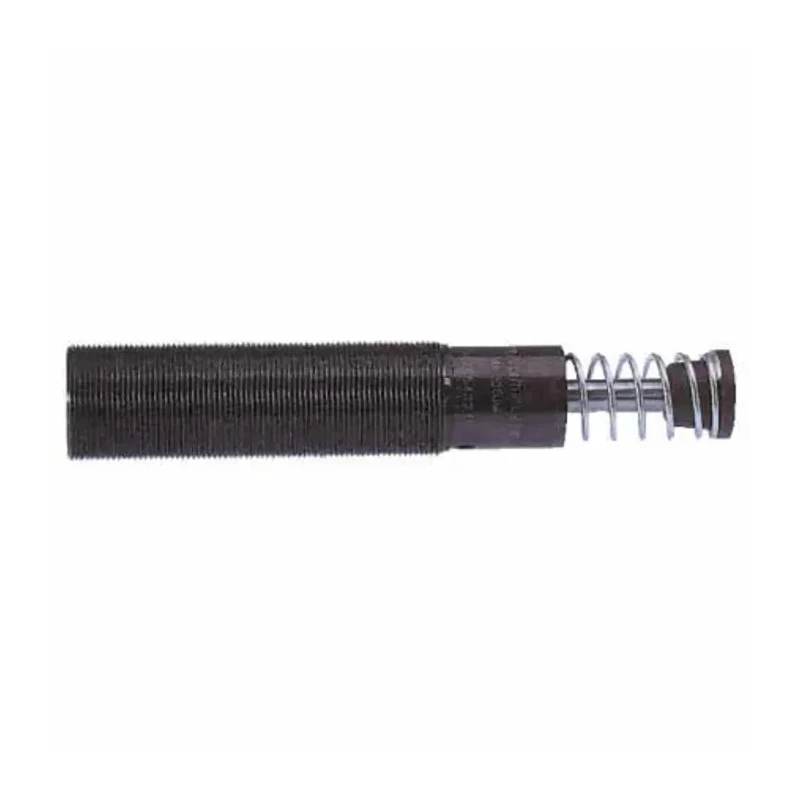

ACE Industrial Shock Absorber M45 x 1.5 Thread Size 95 mm Length 145 mm Overall Length 73.9 mm Stroke MA4525EUM

ACE MA4525EUM Industrial Shock Absorber features a robust design suitable for demanding industrial environments. This shock absorber incorporates a fully threaded steel outer body with Weartec plus finish, offering enhanced resistance to harsh operating conditions. It is designed with front and rear adjusters to deliver precise damping control, making it adaptable for various machine protection and shock mitigation applications.

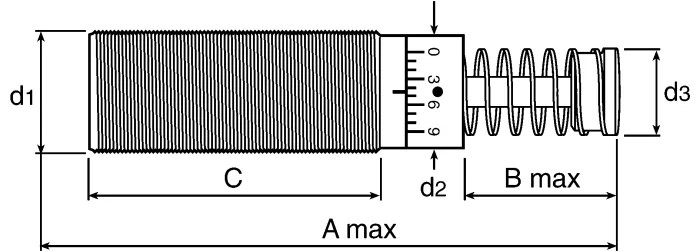

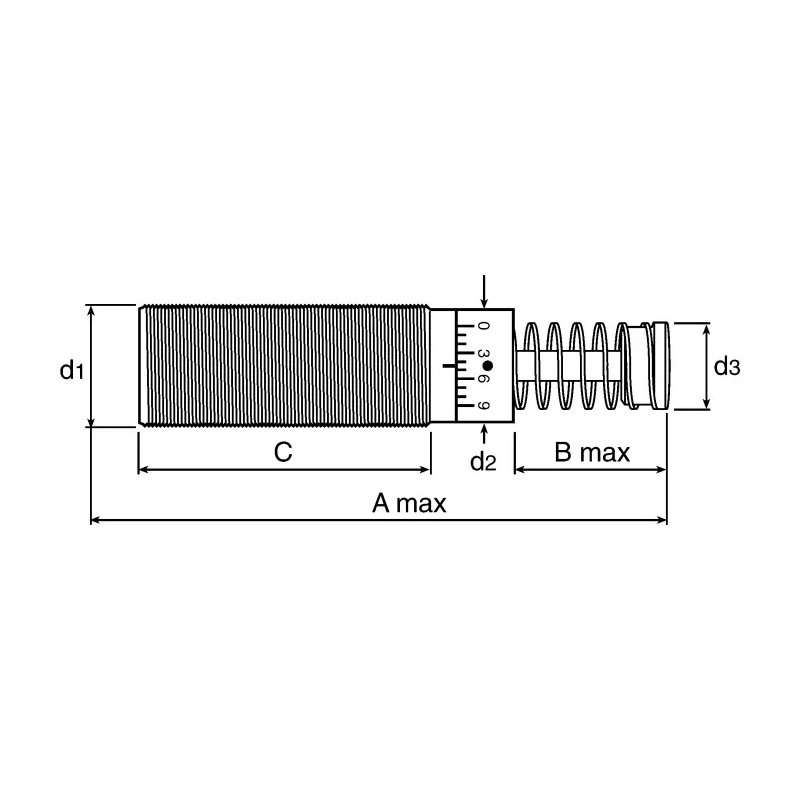

The device has a maximum energy capacity of 192000 Nm per hour and 390 Nm per cycle, supporting effective absorption of high-impact energy loads. Its stroke length is 73.9 mm within a 95 mm body length and an overall length of 145 mm. The thread size is M45 x 1.5 with UNF thread standards ensuring compatibility with standard mounting requirements.

It operates reliably within a temperature range from -12°C to 70°C, suitable for various industrial sectors including manufacturing, automation, and material handling. The shock absorber also includes an integrated positive stop and hardened main bearing to extend operational life and reduce maintenance needs.

Designed to accommodate a wide effective weight range from 9 to 15000 kg, it provides versatile application coverage. New features include 50% increased energy absorption capacity relative to previous generation models, improving protection and durability in heavy-duty industrial setups.

Fully threaded steel outer body with Weartec plus finish for harsh environments. Adjustable front and rear adjusters provide application flexibility. Maximum energy capacity of 192000 Nm per hour and 390 Nm per cycle. Wide effective weight range from 9 to 15000 kg suitable for diverse applications.

Maximum return force rated at 100 N for reliable shock absorption. Operating temperature range from -12°C to 70°C for versatile industrial use. Integrated positive stop and hardened main bearing for durability. New generation shock absorber design with 50% increased energy absorption capacity.

This ACE Shock Absorber is ideal for industrial, manufacturing, automation, and material handling uses where reliable shock absorption and machine protection are critical. It enables engineers and maintenance teams to implement effective vibration and impact damping solutions with enhanced durability.
