ACE Shock Absorber Miniature Type FA1008VB 51 mm Body Length, 65.5 mm Overall Length, Max Energy Capacity 3600 Nm/hr FA1008VB

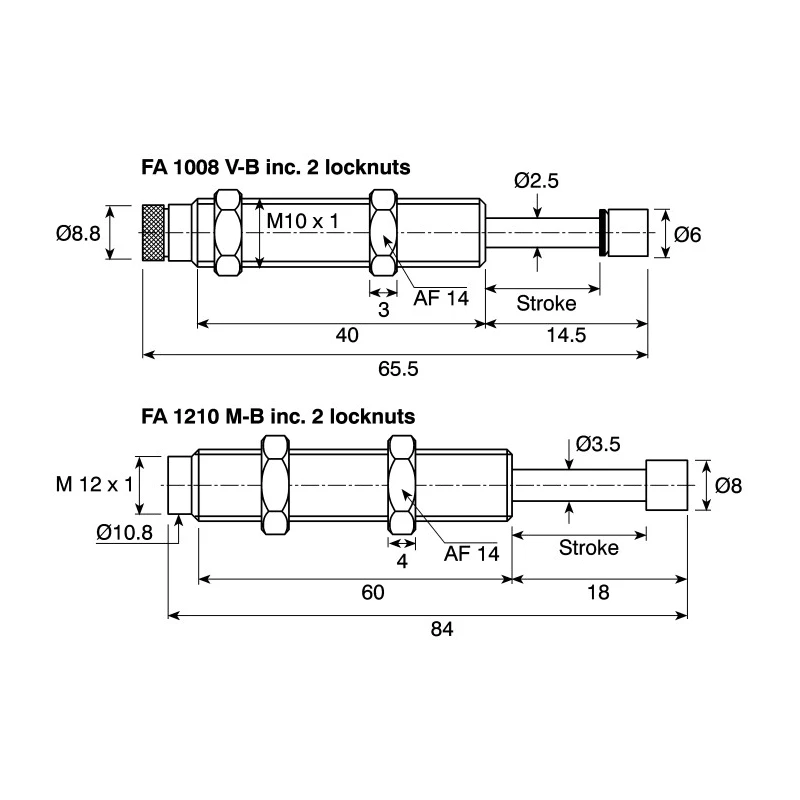

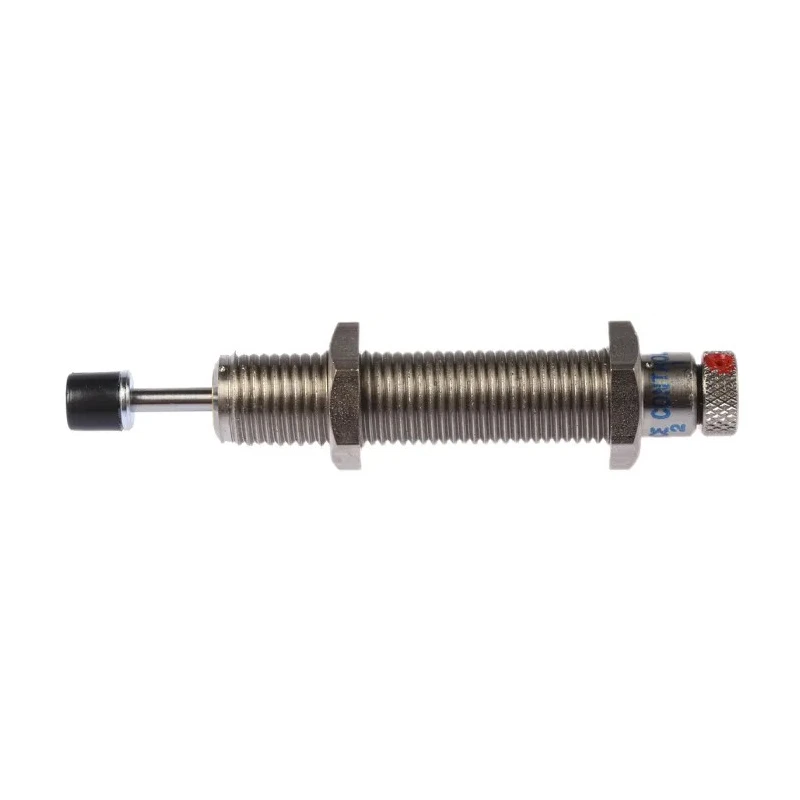

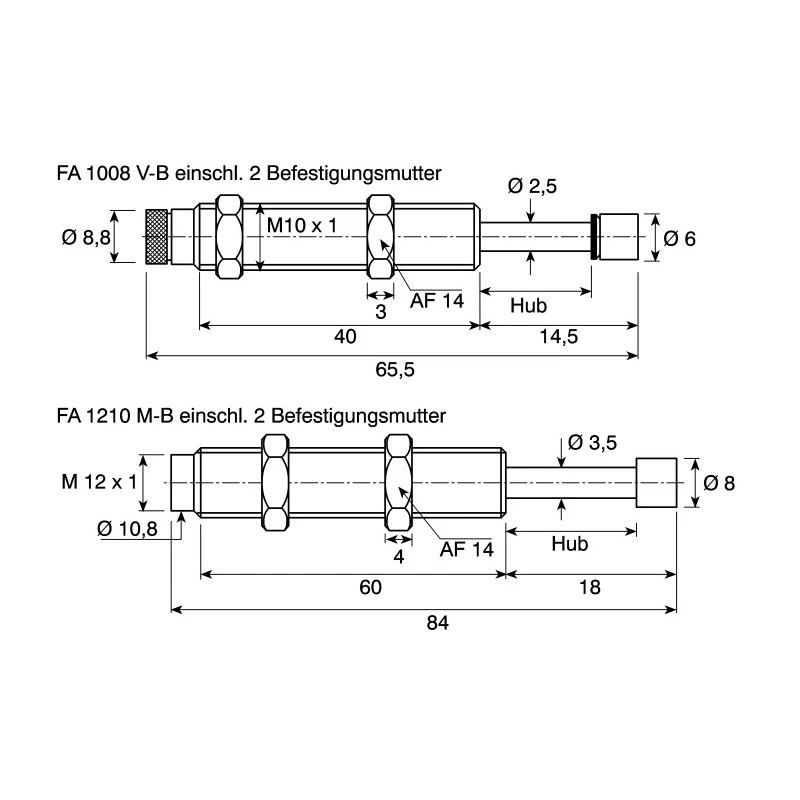

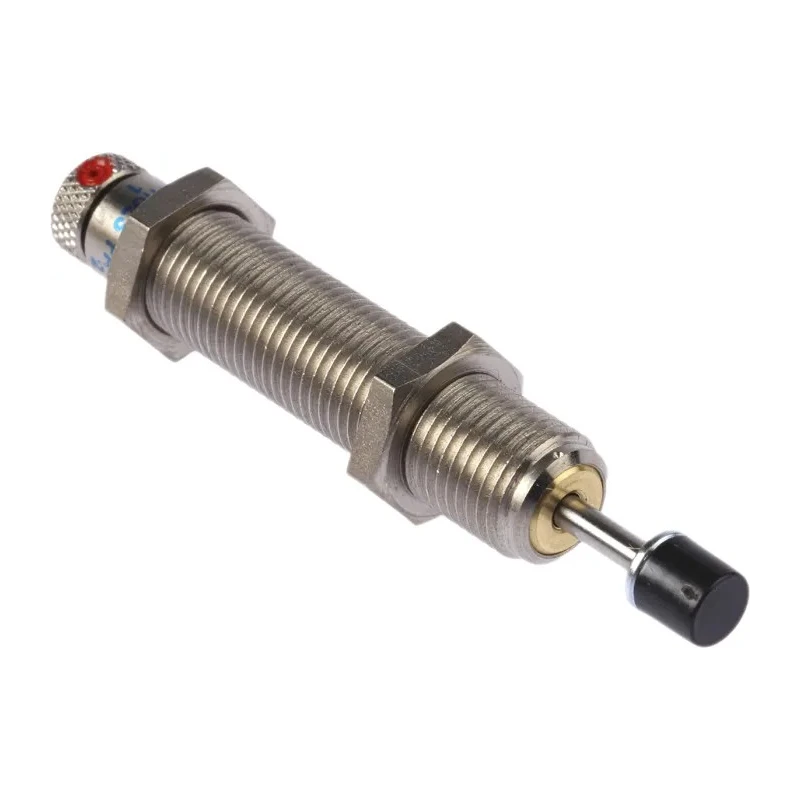

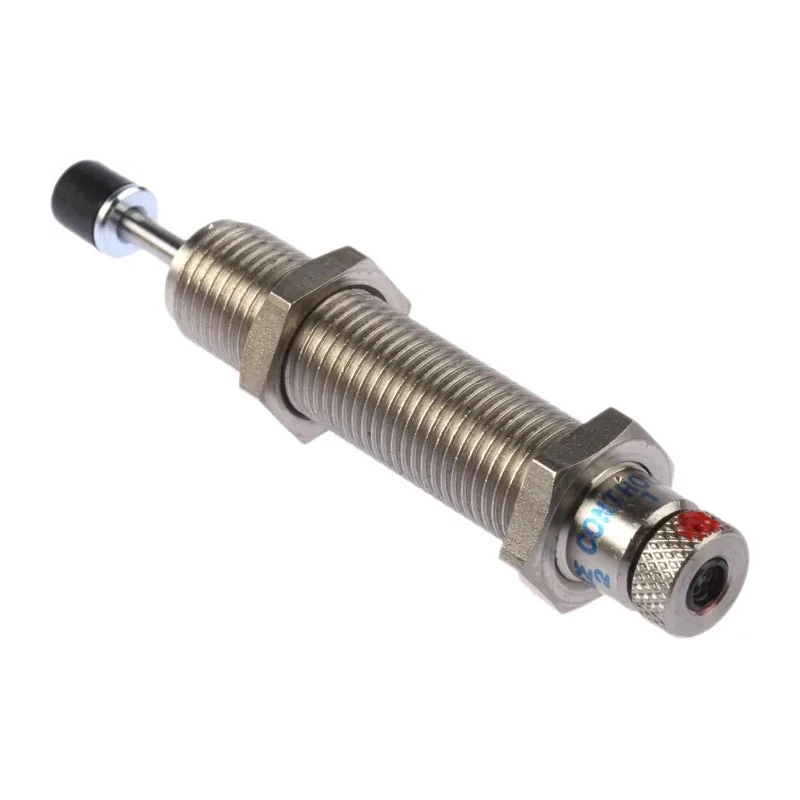

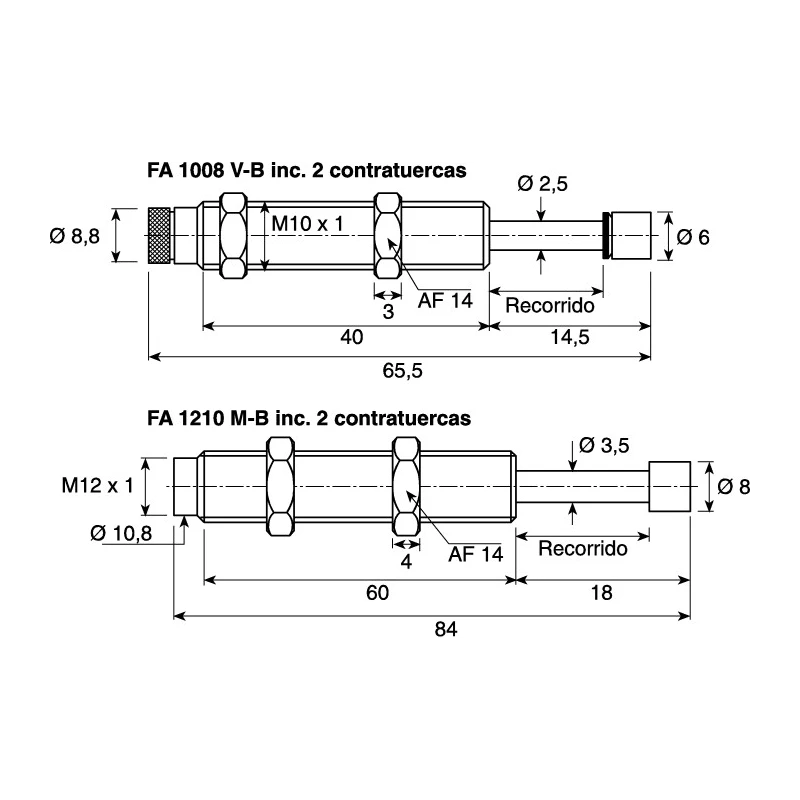

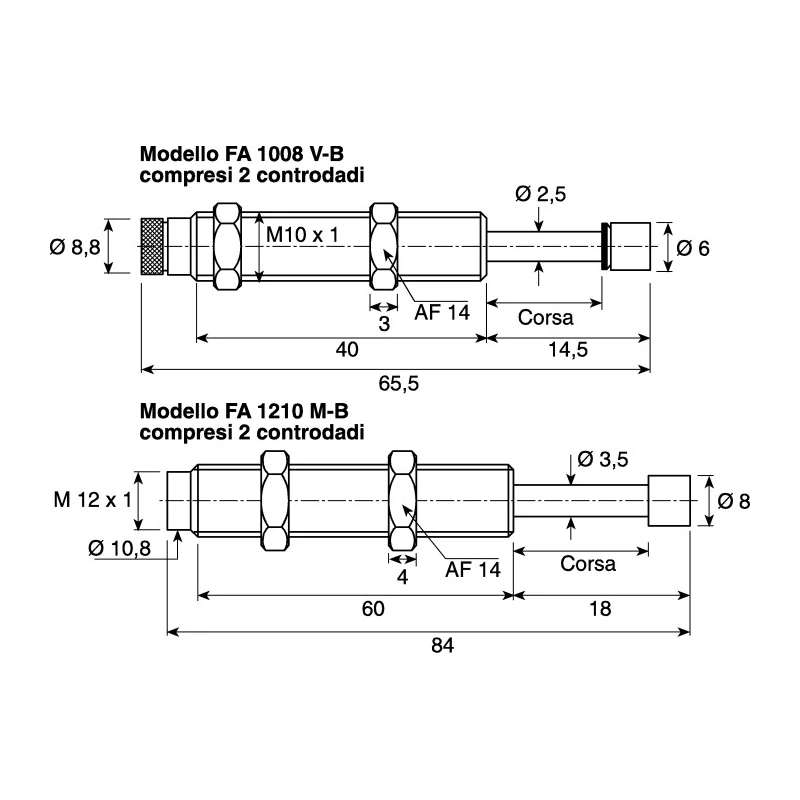

ACE FA1008VB miniature shock absorber is engineered to deliver reliable energy dissipation for industrial machinery and automation applications. With a compact body length of 51 mm and an overall length of 65.5 mm, this shock absorber is ideal for precision equipment where space is limited.

Featuring a maximum energy capacity of 3600 Nm per hour and 1.5 Nm per cycle, the FA1008VB efficiently absorbs shocks generated in the operational cycles of robotics, assembly systems, and pneumatic actuators. Its robust steel construction is complemented by a non-electrolyzed nickel plated finish, which resists corrosion and maintains long-term durability even in demanding environments.

The product incorporates a hardened stainless steel piston rod and a rod end button with an elastomeric insert, providing enhanced noise suppression and smooth operation. The rear mounted adjuster screw accommodates easy installation and adjustment, while included locknut and button secure the assembly during use. Universal mounting and stop collar attachments can be ordered separately for further versatility.

Designed for a broad operating temperature range from 0°C to 66°C, this shock absorber is suitable for a variety of industrial automation, laboratory testing, and manufacturing equipment. Its miniature size adapts well to custom machinery frames, robotic arms, packaging equipment, and material handling systems.

Designed for effective energy absorption in compact spaces. Maximum energy capacity per hour is 3600 Nm. Maximum energy capacity per cycle is 1.5 Nm. Operating temperature range from 0°C to 66°C. Steel body with non-electrolyzed nickel plating for durability.

Rear mounted adjuster screw facilitates easy installation. Includes locknut and button for secure mounting. Hardened stainless steel piston rod ensures robust performance and extended service life. Noise suppression with elastomeric insert at rod end button.

Universal mounting and stop collar attachments available separately.

ACE, as a global leader in shock absorber technology, offers proven solutions for industrial sectors requiring precise damping, vibration reduction, and extended equipment lifetime. Browse ACE products and related Shock Absorbers on EnvMart for advanced industrial motion control solutions.
