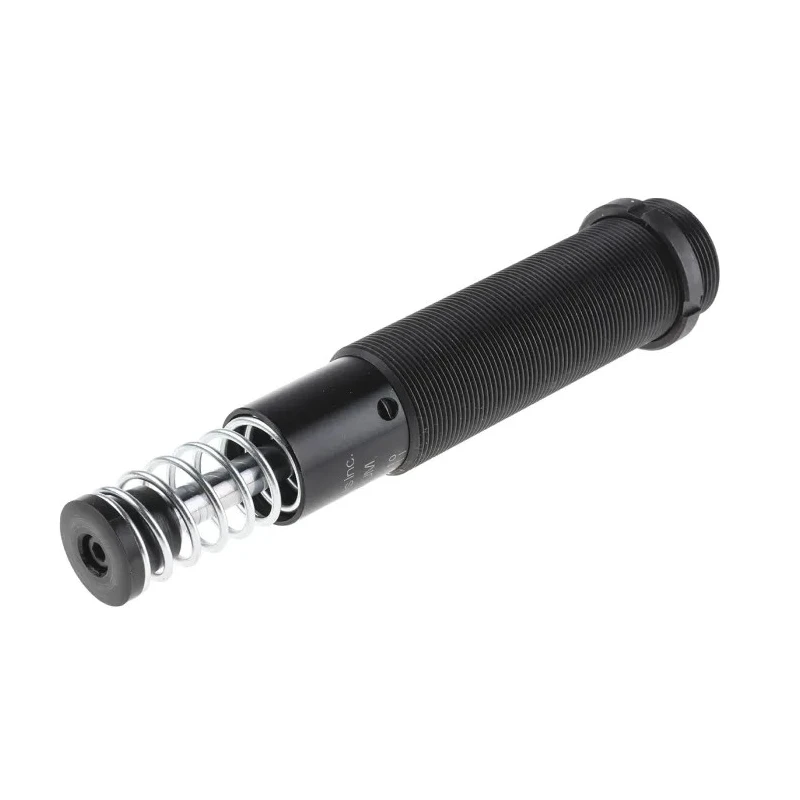

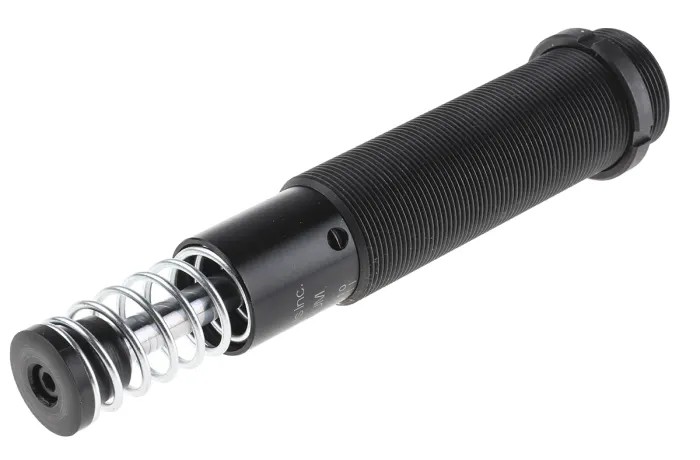

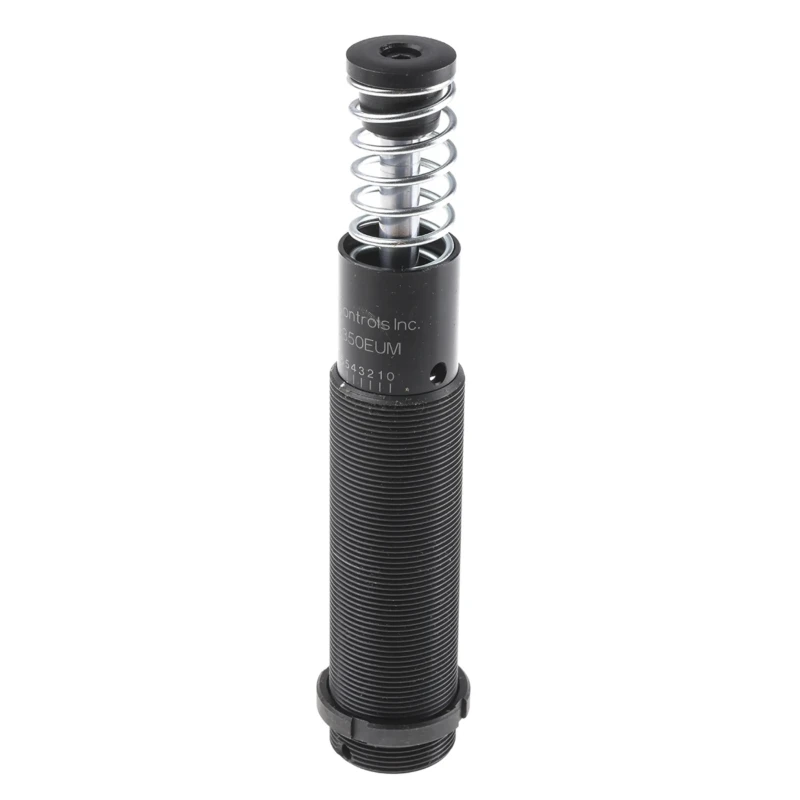

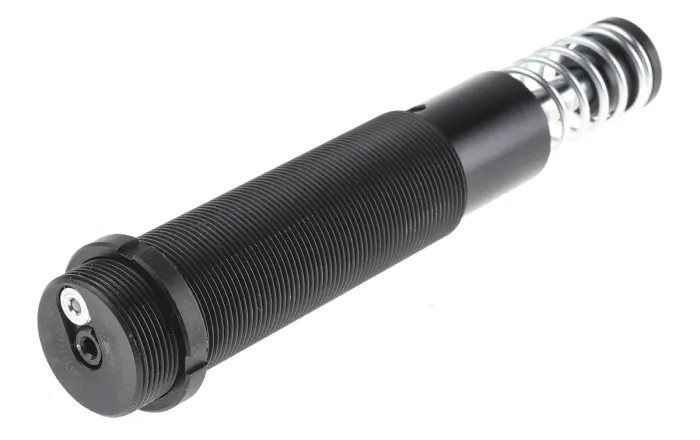

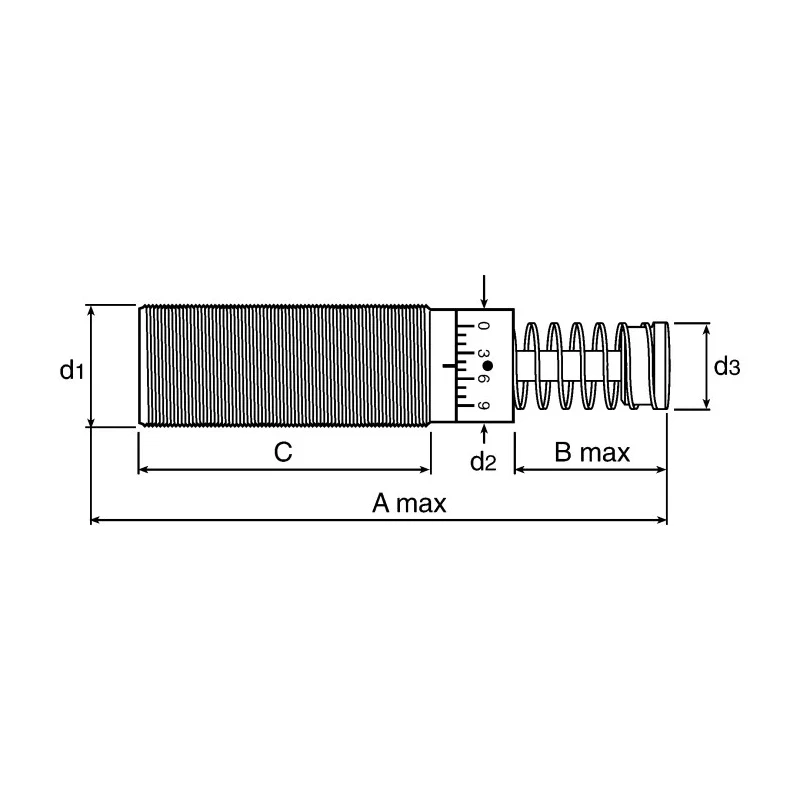

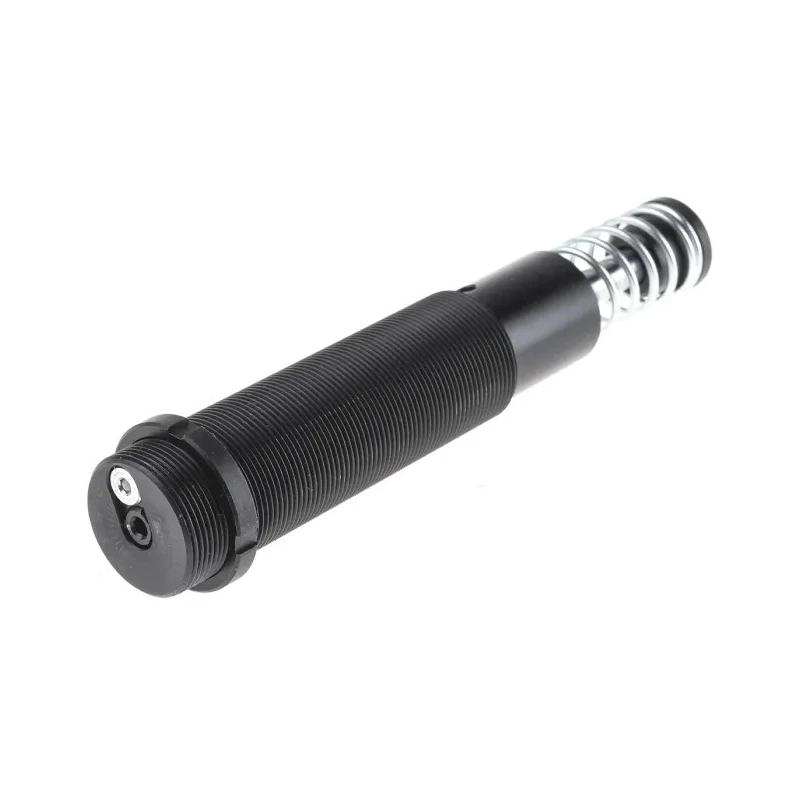

ACE Industrial Shock Absorber with M33 x 1.5 Thread Size, 108 mm Body Length, 189 mm Overall Length, Series MA MA3350EUM

ACE MA3350EUM industrial shock absorber is engineered for dynamic shock absorption in a wide range of industrial machinery and equipment. Featuring a 108 mm body length and 189 mm overall length, it incorporates a fully threaded steel outer body finished with Weartec-plus for enhanced resistance in harsh environments. Its design supports a wide effective weight range from 9 to 15000 kg, making it versatile for numerous heavy-duty applications.

This new generation shock absorber offers a 50% increase in energy absorption capacity, proving ideal for industrial, manufacturing, fluid power, and pneumatic system integrations. The front and rear adjusters allow precise tuning of shock absorption to fit specific application needs, improving equipment endurance and reducing maintenance.

With a maximum energy capacity of 180000 Nm per hour and 340 Nm per cycle, the MA3350EUM model ensures efficient dissipation of kinetic energy, protecting machinery from damage. It efficiently operates across an environmental temperature range between -12°C and 70°C, providing reliable performance in diverse climatic conditions.

Its construction includes an integrated positive stop and hardened main bearing to maximize lifespan and reduce wear under repetitive load cycles. The M33 x 1.5 UNF thread size complies with common industrial fitting standards, promoting easy installation and compatibility.

This ACE shock absorber is well suited for applications in industrial automation, pneumatic actuators, manufacturing equipment, and material handling machinery requiring precise shock control and durability.

Constructed with a fully threaded steel outer body featuring Weartec-plus finish for harsh environments. New generation design delivers 50% increased energy absorption capacity. Equipped with front and rear adjusters allowing flexible application design and selection.

Extremely long operating life ensuring durable usage under heavy industrial loads. Wide effective weight range from 9 to 15000 kg accommodating diverse equipment. Integrated positive stop and hardened main bearing improve reliability and performance.

Maximum energy capacity per hour is 180000 Nm with per cycle capacity of 340 Nm. Operates effectively within temperature range -12°C to 70°C. Maximum return force rated at 135 N for controlled shock absorption. Suitable for applications requiring M33 x 1.5 UNF threaded mounting and Series MA specification.
