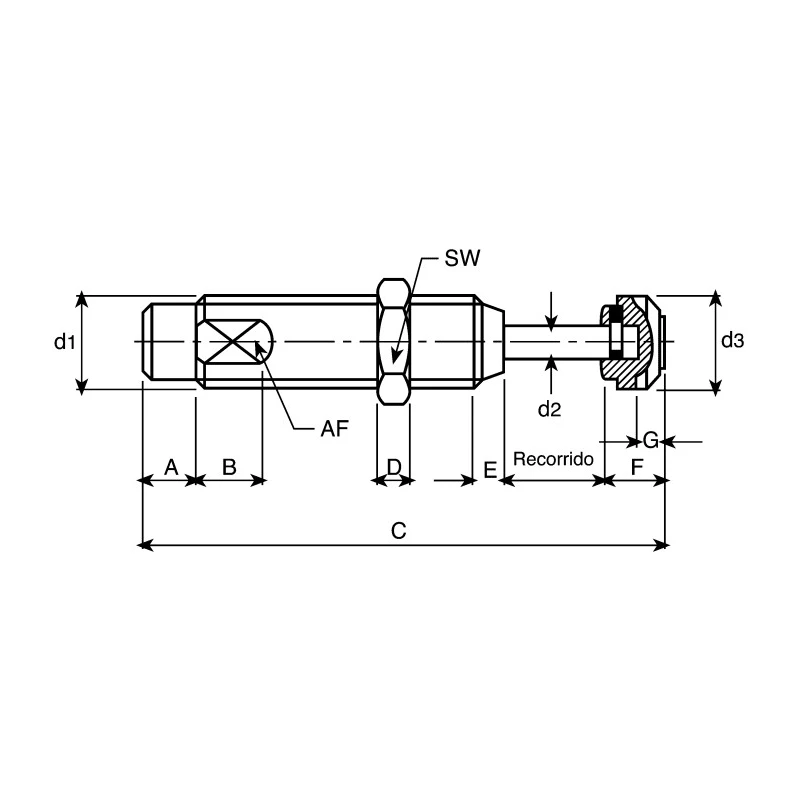

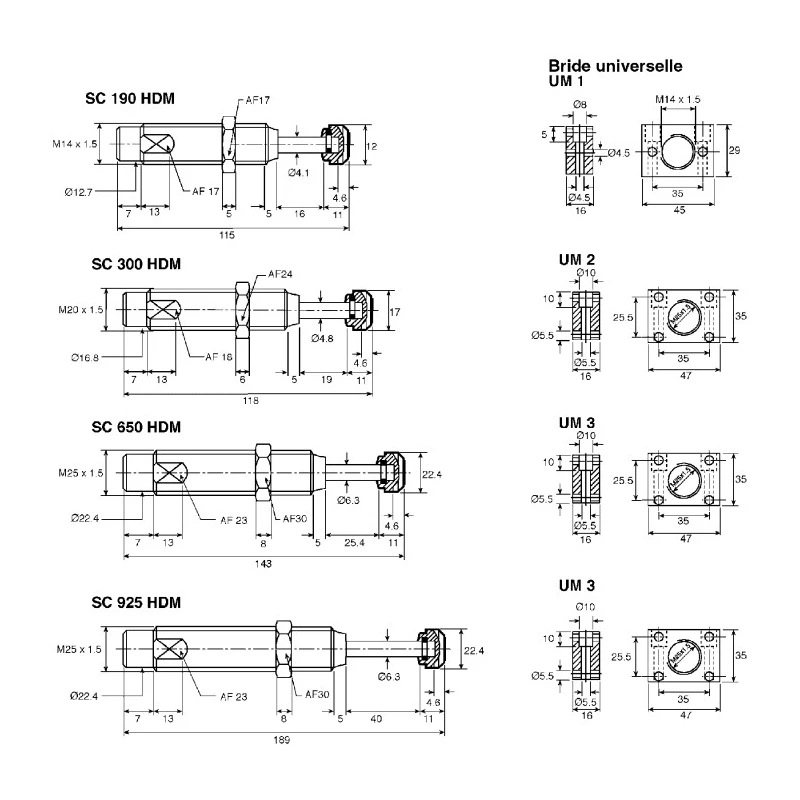

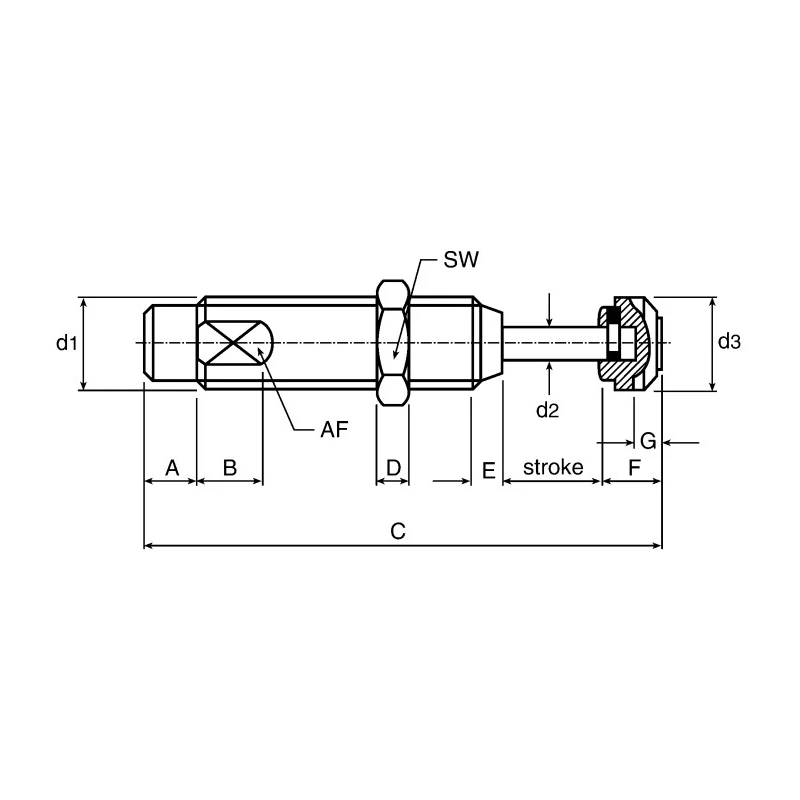

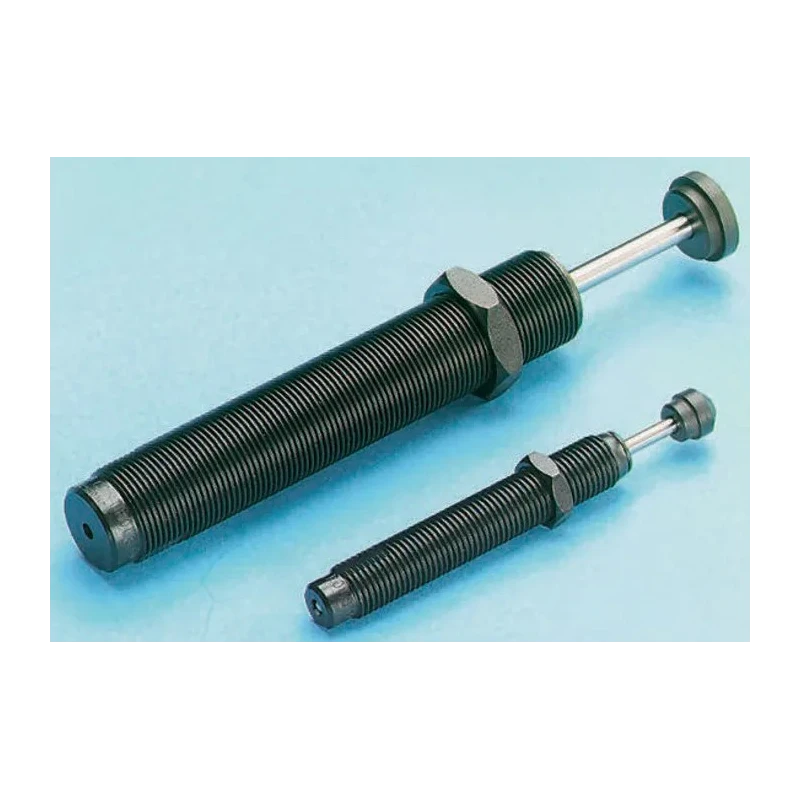

ACE Shock Absorber, 138 mm Body Length, 189 mm Overall Length, 40 mm Stroke Length, M25 x 1.5 Thread Size SC925EUM-3

ACE SC925EUM-3 shock absorber is a self compensating device featuring a 138 mm body length and an overall length of 189 mm. It includes a 40 mm stroke length and M25 x 1.5 UNF thread standard. This shock absorber is engineered for applications requiring low initial impact reaction forces and can handle effective weights ranging from 1.4 kg to 2088 kg. The design includes an integral mechanical stop at the front end for enhanced protection.

The steel body is treated with Weartec - Plus finish to withstand harsh environmental conditions. The hardened stainless steel piston rod, along with a locknut and hardened steel rod end button equipped with a noise suppression insert, ensures durability and quiet operation. It maintains performance within an operating temperature range of 0°C to 66°C and impact velocity range of 0.15 m/s to 3.7 m/s.

Notably, this model provides a maximum energy capacity per hour of 90,000 Nm and a maximum energy capacity per cycle of 110 Nm. The maximum return force is 32 N, which ensures reliable return action during repeated cycles. The SC series is designed for interchangeability with the MA series, enhancing versatility in industrial setups.

This shock absorber finds extensive application across industries including mechanical engineering, fluid power systems, manufacturing, automation, and pneumatic and hydraulic actuation systems. It is ideal for industrial, laboratory, manufacturing, and automotive use cases.

Integral mechanical stop protects the unit from overextension. Self compensating feature reduces maintenance requirements. Corrosion-resistant Weartec - Plus steel body for harsh environments. Hardened stainless steel piston rod prevents wear and ensures longevity.

Interchangeable with MA series for application flexibility. Noise suppression insert reduces operational noise levels. Wide operating temperature and impact velocity range. Universal mounting options available for easy installation.

Package does not include mounting or stop collar attachments which are sold separately. ACE products are known for precision and reliability in shock absorption applications. Explore more ACE Shock Absorbers and related Hydraulic & Pneumatic Tools in the EnvMart catalog for industrial-grade performance.
