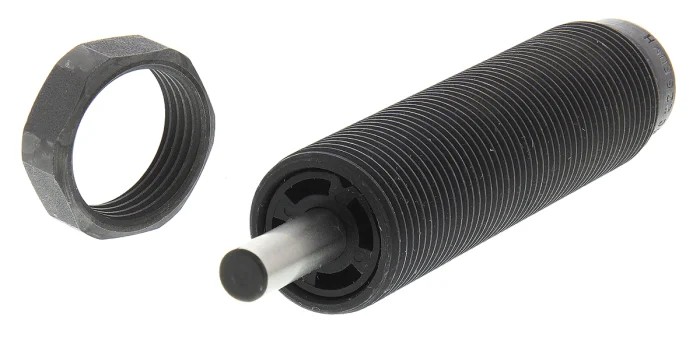

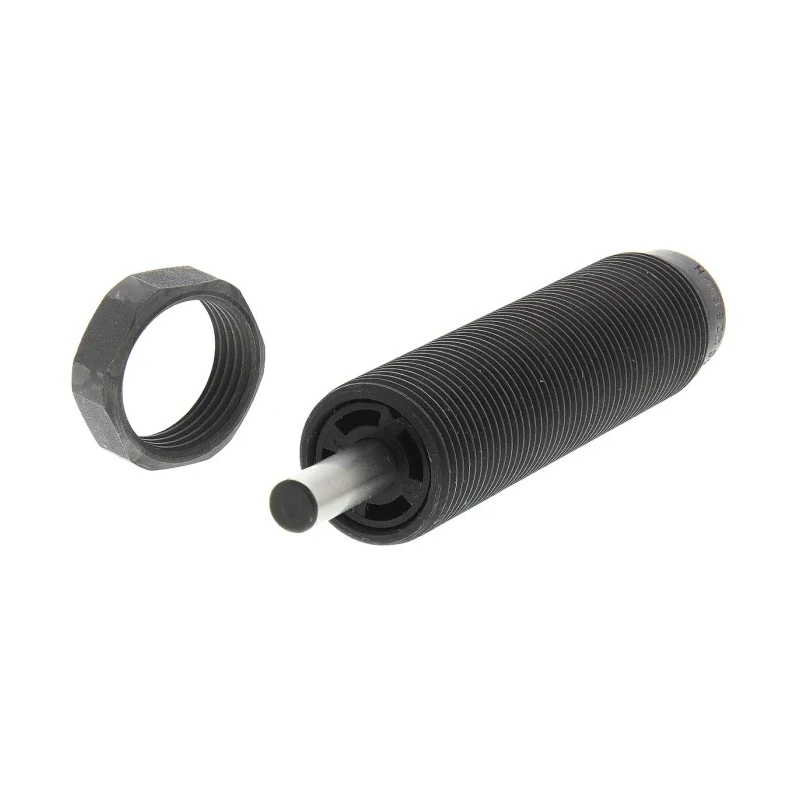

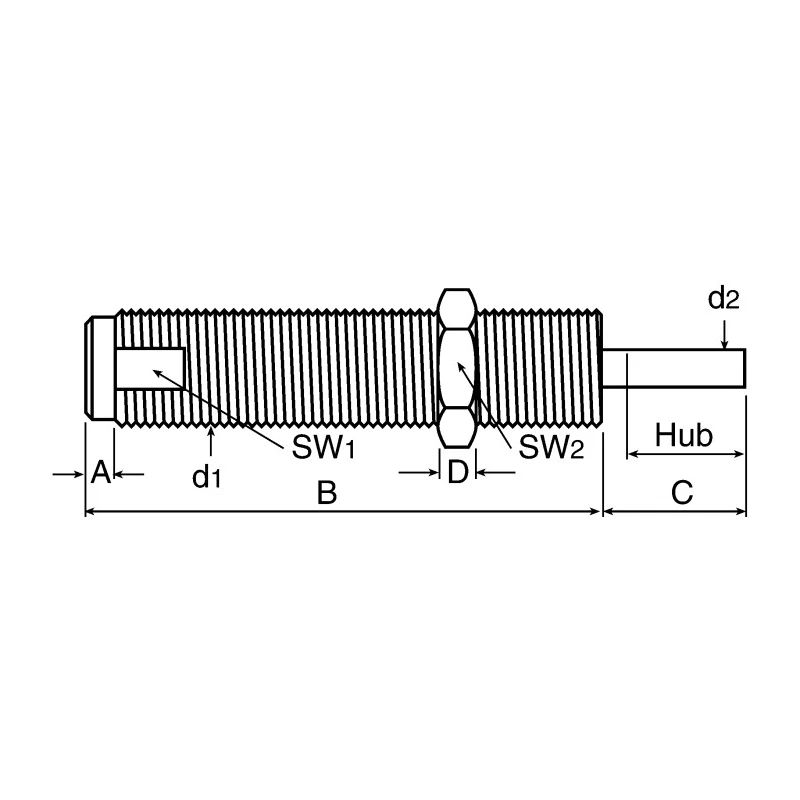

ACE Shock Absorber M20 x 1.5 Thread Size, 79.2 mm Body Length, Stroke Length 12.7 mm, Overall Length 96.7 mm, MC MC225EUMH

ACE MC225EUMH shock absorber is engineered with M20 x 1.5 thread size, a 79.2 mm body length, 12.7 mm stroke length, and overall length of 96.7 mm, providing efficient energy absorption for pneumatic cylinders and actuators in industrial automation.

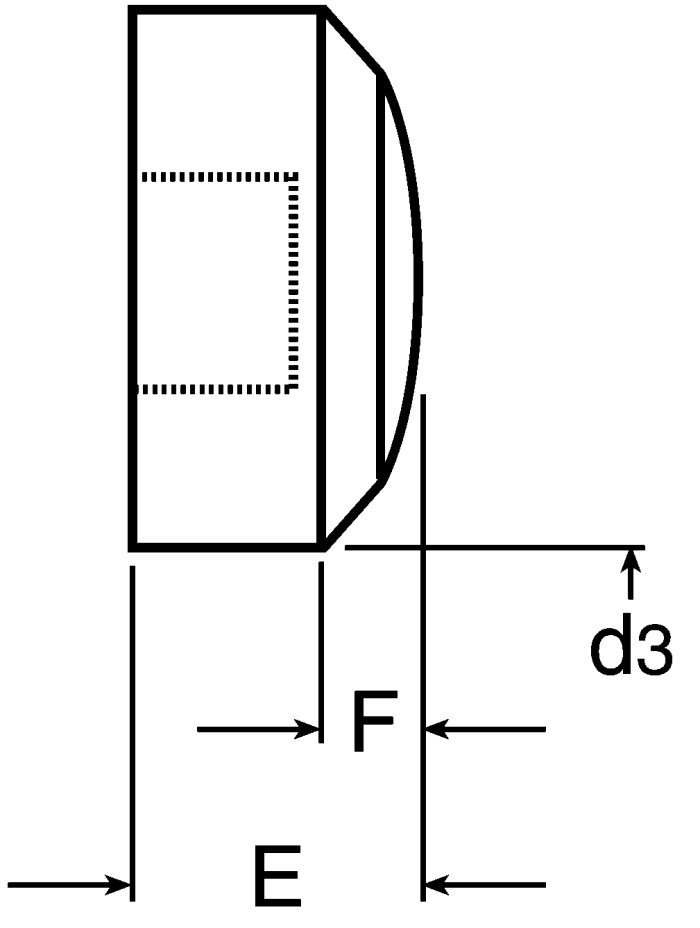

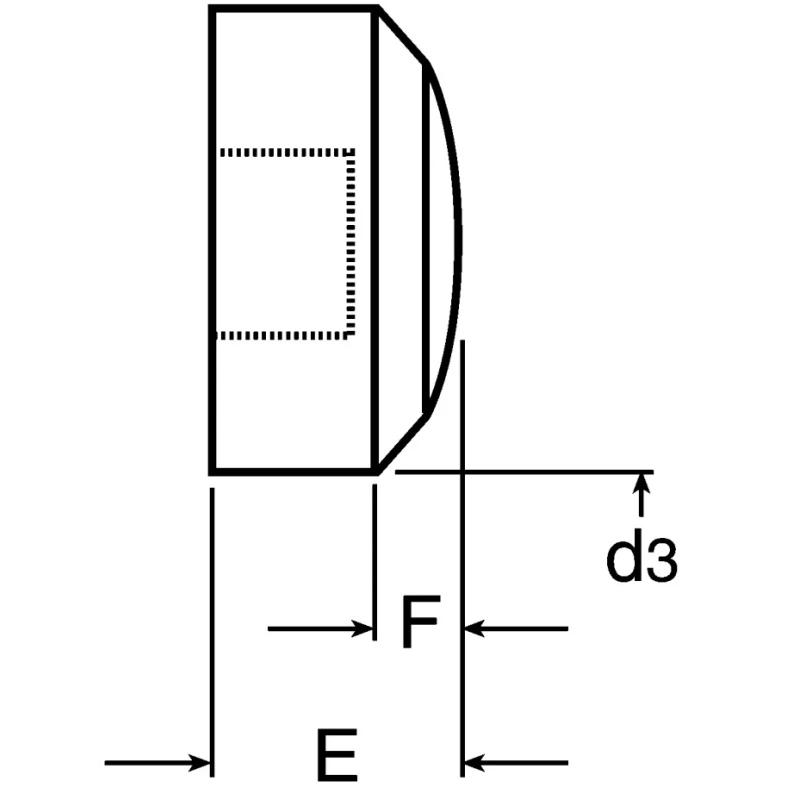

This self compensating shock absorber is maintenance free and constructed for longevity with a Weartec-Plus coated steel body, hardened stainless steel piston rod, and a hardened steel rod end button that includes an insert for noise suppression. It supports universal mounting positions, enhancing installation flexibility within confined spaces.

Designed to handle effective weights from 0.9 kg to 2300 kg, it offers a maximum energy capacity of 45000 Nm per hour and 41 Nm per cycle, ensuring high performance and durability even under demanding conditions. Operating temperatures range from 0°C to 66°C, making it suitable for various industrial environments.

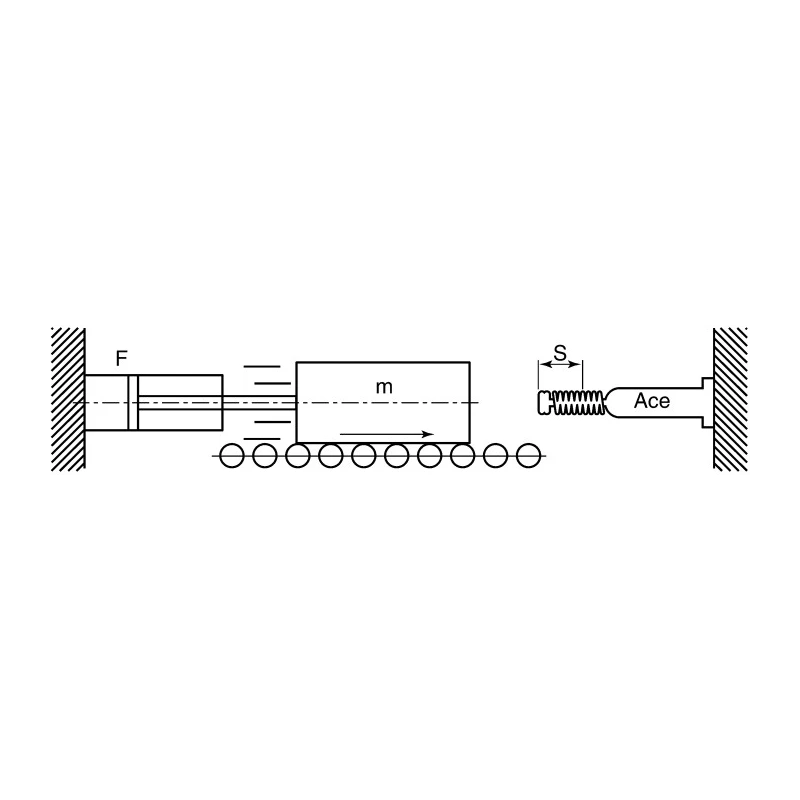

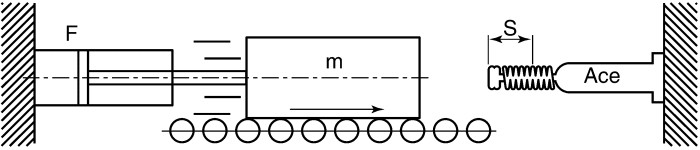

This shock absorber is ideal for end-of-stroke cushioning in pneumatic applications, capable of handling impact velocities between 0.08 m/s and 6 m/s. Optional accessories such as stop collars, mounting blocks, and locknuts are available separately for enhanced mounting and adjustment. The maximum return force is 9 N, providing consistent rebound for controlled motion.

Hardened components and a sealed design contribute to extended service life with minimal maintenance. The M20 x 1.5 UNF thread standard ensures compatibility with common fittings used in hydraulic and pneumatic systems.

Compact, maintenance free self compensating design enhances reliability. Durable Weartec-Plus steel body and hardened piston rod resist wear and corrosion. Versatile mounting options with compatible collars and blocks sold separately.

Designed for pneumatic cylinder stroke cushioning with excellent energy absorption. Wide operating temperature and impact velocity range for versatility. Noise suppression features reduce operational sound levels. Supports automated and manual industrial equipment requiring shock absorption.

This ACE shock absorber MC225EUMH is a critical component for ensuring smooth, damage-free operation of pneumatic cylinder systems in industrial, manufacturing, and automation setups. Designed and built to meet rigorous pneumatic tool and actuation demands, it balances compact size with high energy absorption limits.
