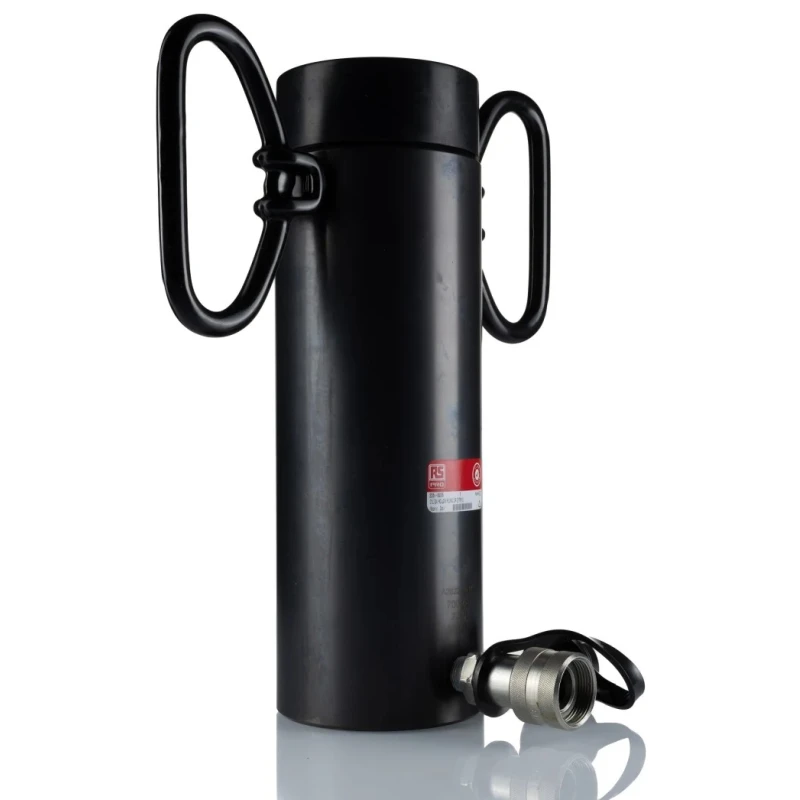

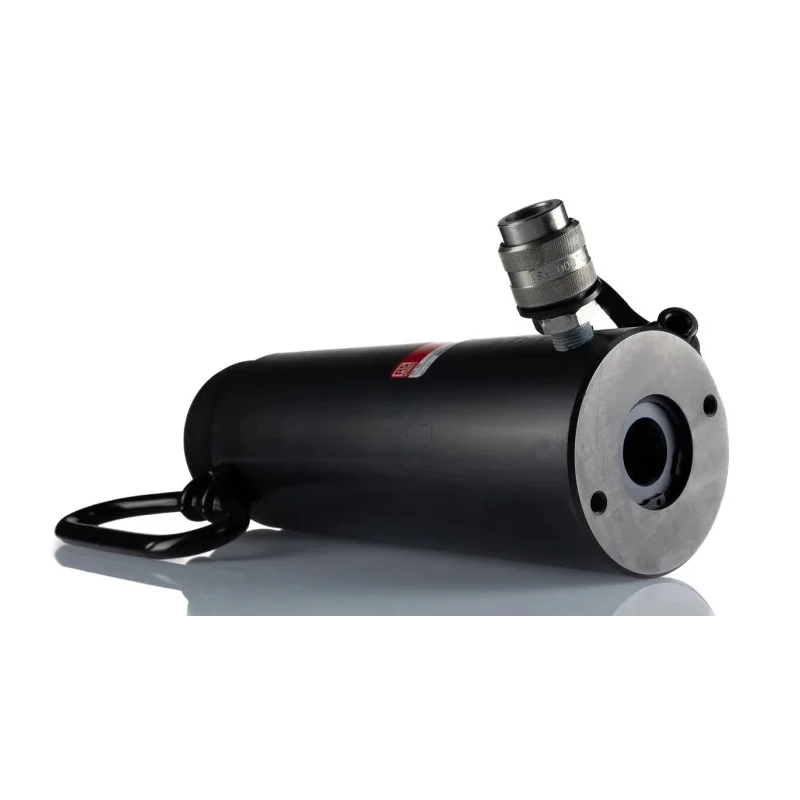

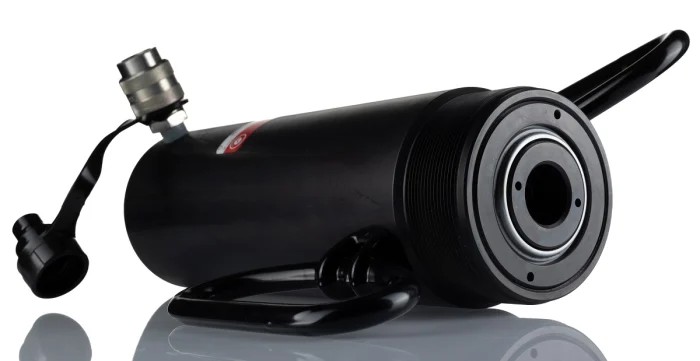

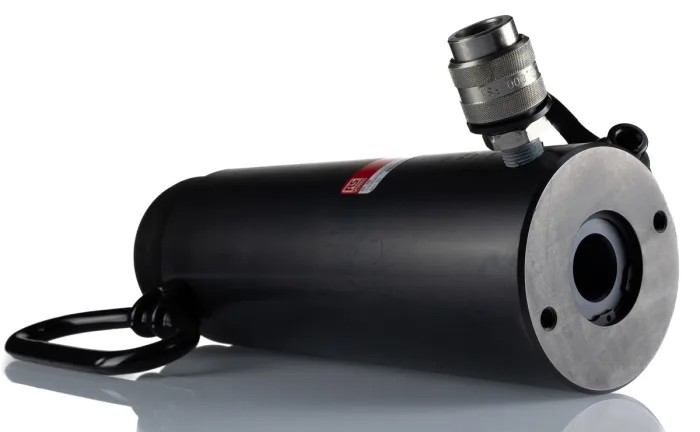

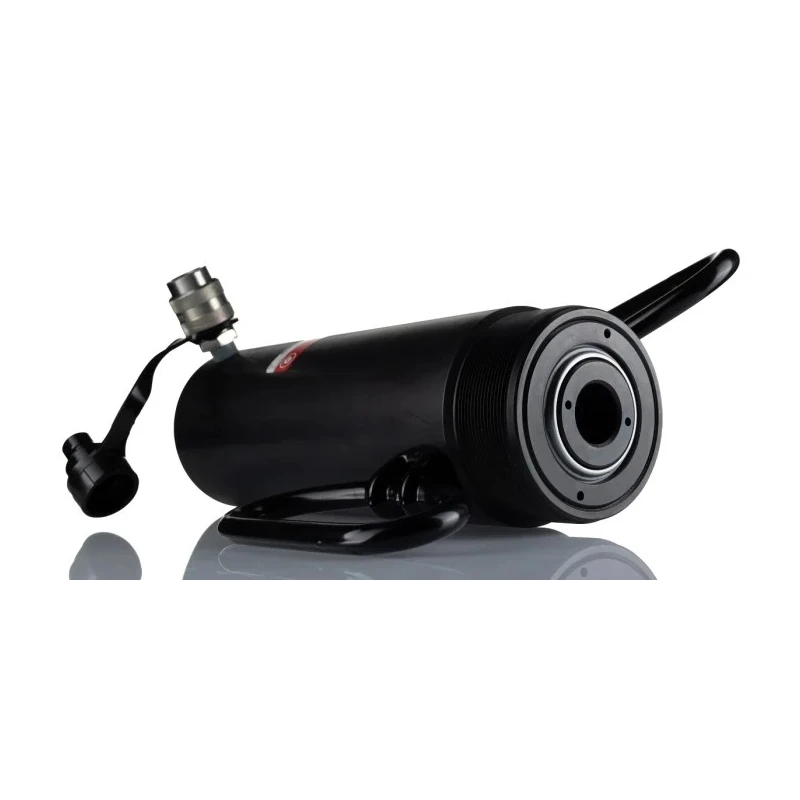

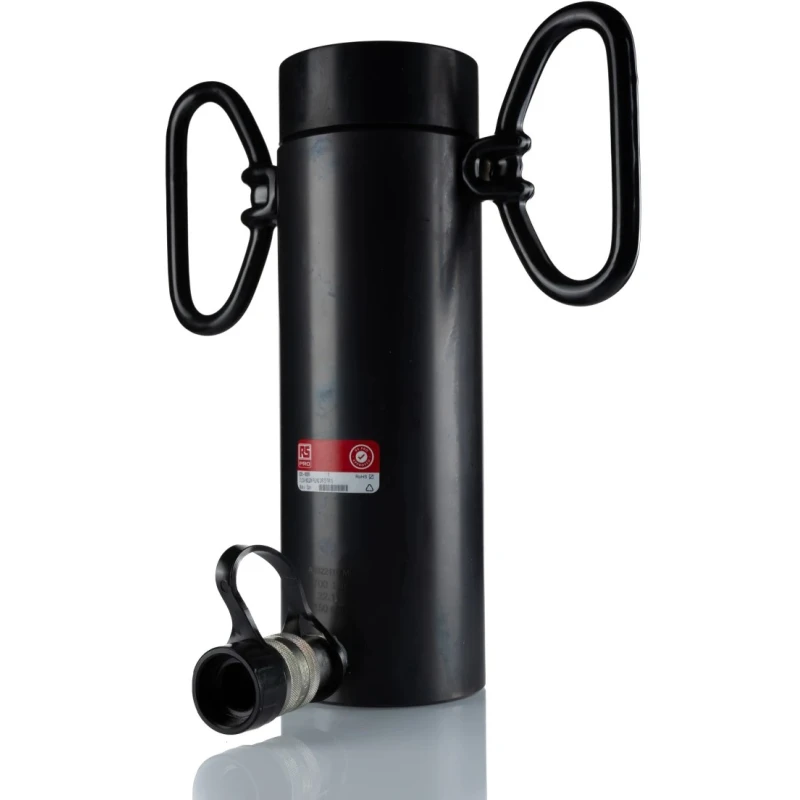

RS PRO Portable Hollow Plunger Hydraulic Cylinder Single Acting 22 Ton Capacity 150 mm Stroke 700 bar 235-8226

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Portable Hollow Plunger Hydraulic Cylinder Single Acting 22 Ton Capacity 150 mm Stroke 700 bar 235-8226

Name: RS PRO Portable Hollow Plunger Hydraulic Cylinder Single Acting 22 Ton Capacity 150 mm Stroke 700 bar 235-8226
Brand: RS PRO
SKU: 423463
Price: 20.22 USD
Availability: InStock



Category Hydraulic Cylinder Brand RS PRO Condition New

Specifications

Country of Origin	Spain
Brand	RS PRO
Maximum Operating Pressure	700 bar
Model	235-8226
Gross Weight	16.4kg
Outside diameter	105mm
Oil Capacity	474cm³
Stroke Length	150mm
Cylinder Capacity	22t
Action Type	Single Acting
Standards/Approvals	UKCA, CE
Closed Height	318mm
Extended Height	468mm
Cylinder Effective Area	32cm²

Key Features

Constructed from chrome plated steel for enhanced durability and corrosion resistance.
Features a hollow plunger design with spring return action for efficient operation.
Includes a female quick coupler for easy hydraulic connection.
Ideal for applications such as pushing, pulling, tensioning bolts, and bearing removal.
Equipped with standard hollow plain saddle and body threads for secure fixation.
Weighs 16.4 kg, making it portable for various industrial tasks.
Manufactured in Spain, compliant with UKCA and CE standards.

Product Description

RS PRO 235-8226 Portable Hollow Plunger Hydraulic Cylinder Single Acting offers a robust 22-ton capacity and a 150 mm stroke length designed for high-pressure hydraulic applications up to 700 bar. This hydraulic cylinder is constructed from chrome plated steel, providing excellent corrosion resistance and durability for demanding industrial environments.

The cylinder features a hollow plunger with spring return, enhancing its efficiency for unidirectional force tasks. Included is one female quick coupler facilitating quick and safe hydraulic connections. The cylinder body has threaded connections with base and plunger fixing holes supporting stable mounting and secure operation.

With a compact form factor - closed height of 318 mm and extended height of 468 mm - the hydraulic cylinder weighs 16.4 kg, making it sufficiently portable for various industrial, construction, manufacturing, and maintenance applications. The effective cylinder area is 32 cm², and it holds an oil capacity of 474 cm³.

This hydraulic tool is suited for pushing and pulling operations, tensioning bolts and cables, and for removing bearings and bushings. The standard hollow plain saddle may be replaced with optional solid or threaded saddles as per need. The anodized and chrome-plated hollow plunger and nitride-treated body, head, and nut provide enhanced wear and corrosion resistance.

RS PRO Hydraulic Cylinders cater to professionals requiring adaptable and safe solutions for hydraulic tensioning, testing, pulling, or lifting tasks. Manufactured in Spain, this model meets UKCA and CE regulatory standards, ensuring reliability and safety in industrial environments.

Constructed from high-quality chrome plated steel. Single acting with spring return action for reliable operation. Female quick coupler included for hydraulic connectivity. Compact and portable with robust load handling capability.

Precise 22-ton capacity with 700 bar maximum operating pressure. Ideal for industrial, laboratory, construction, HVAC, and manufacturing uses. Explore more hydraulic tools and cylinders like this in the RS PRO range on EnvMart for your fluid power and mechanical needs.
