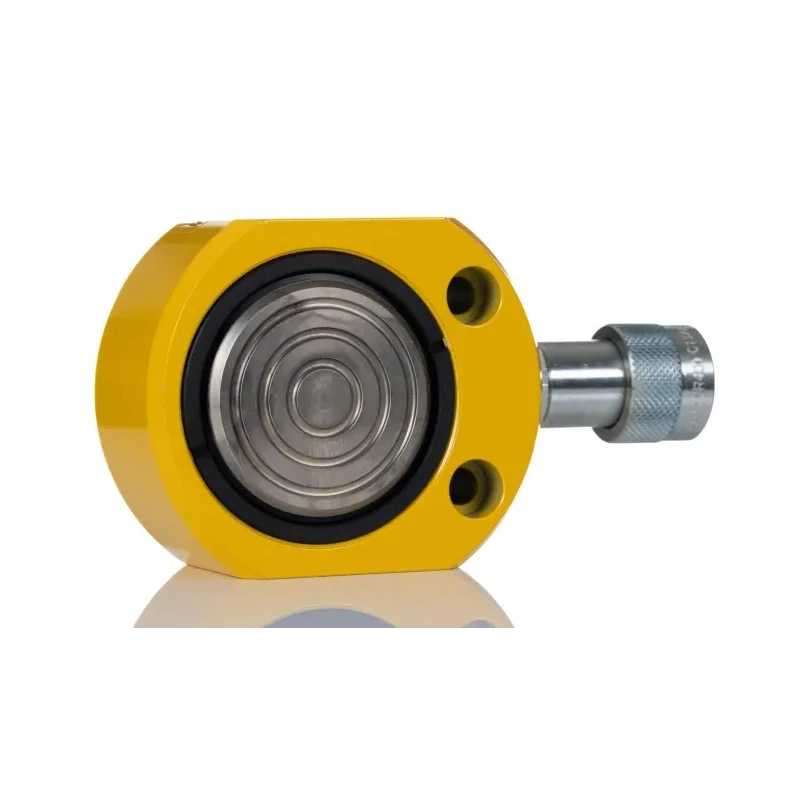

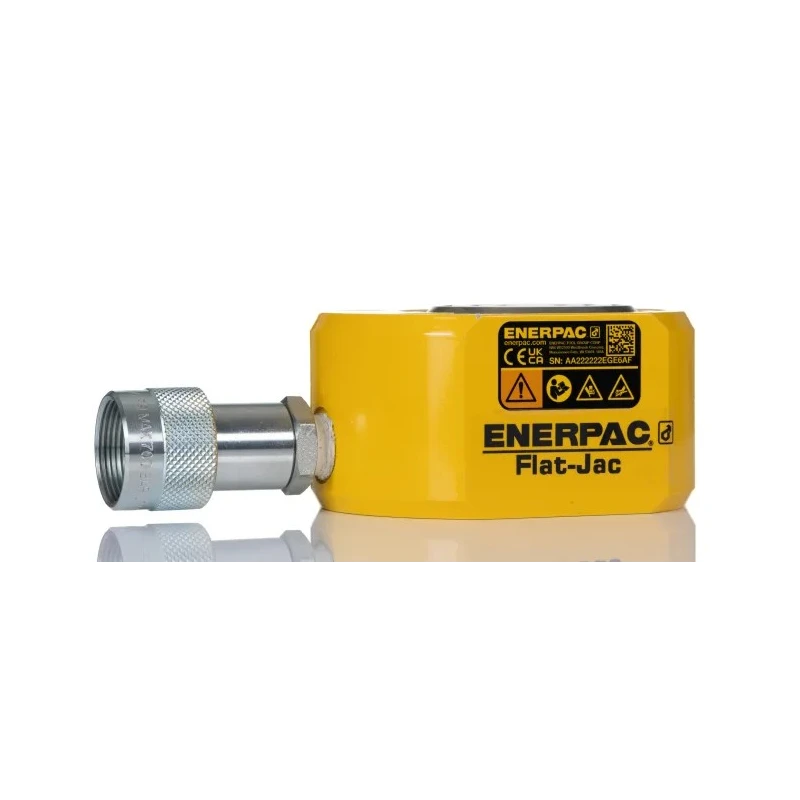

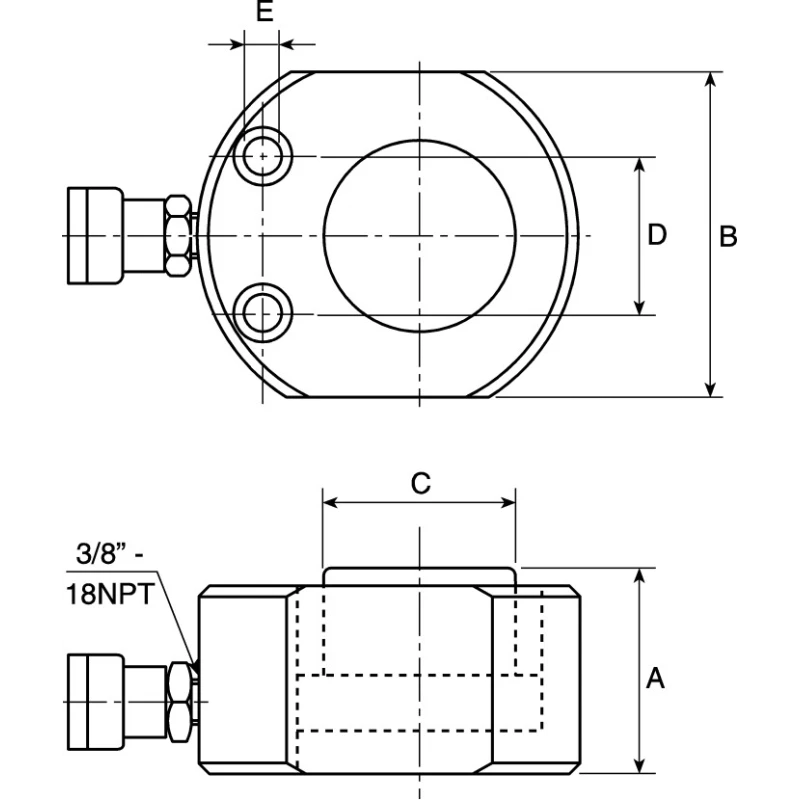

Enerpac Portable Low Height Hydraulic Cylinder Single Acting 30 t Capacity, 13 mm Stroke, 700 bar Max Pressure RSM300
Specifications
| Country of Origin | India |
|---|---|
| Brand | Enerpac |
| Maximum Operating Pressure | 700 bar |
| Model | RSM300 |
| Gross Weight | 4.5kg |
| Oil Capacity | 55cm³ |
| Stroke Length | 13mm |
| Cylinder Capacity | 30t |
| Action Type | Single Acting |
| Closed Height | 58mm |
| Extended Height | 71mm |
| Cylinder Effective Area | 42.1cm² |
Key Features
- Compact flat profile design ideal for extremely confined working spaces.
- Single acting with spring return and 700 bar maximum operating pressure.
- Constructed from high strength alloy steel with baked enamel finish for durability.
- Chrome plated plunger resists wear and rust, with hardened saddles to prevent piston jamming.
- Equipped with port connections (3/8-18 NPT) and high flow female coupler.
- Lightweight design weighing 4.5 kg for portability and ease of use.

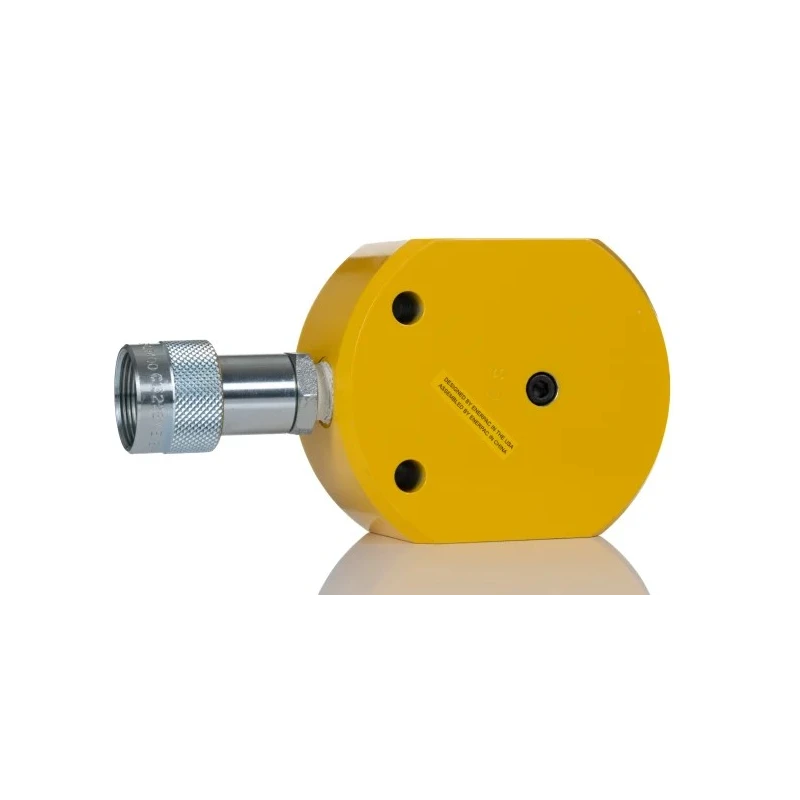

- Mounting holes allow for easy fixing and installation.
- Oil capacity of 55 cm³ with cylinder effective area of 42.1 cm².
Product Description
Enerpac RSM300 is a portable low height hydraulic cylinder, designed specifically for use in extremely confined spaces where conventional cylinders cannot fit. This single acting cylinder features a 30 ton capacity with a 13 mm stroke and a maximum operating pressure of 700 bar, making it a versatile tool for mechanical, industrial, and construction applications.
The cylinder body is made from durable high strength alloy steel finished with baked enamel to protect against corrosion and wear. The chrome plated plunger ensures resistance against wear and rust, while hardened saddles prevent piston jamming in the top bearing. A heavy-duty return spring enables fast piston retraction, enhancing operational efficiency.

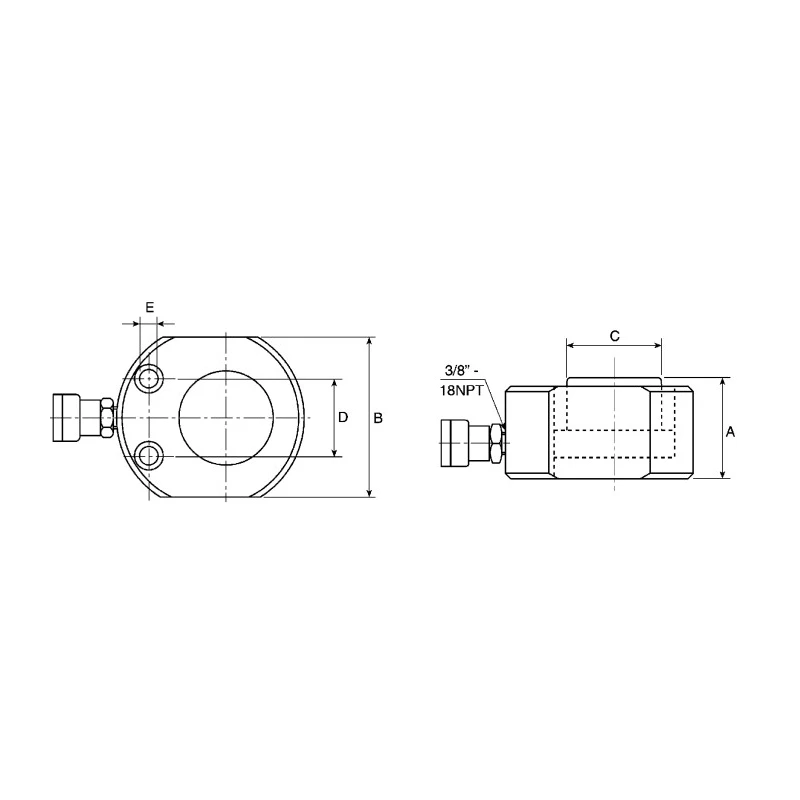

Compact and flat in design, these cylinders incorporate mounting holes for easy fixing and installation. Port connections are standardized at 3/8-18 NPT, fitted with a female high flow coupler for quick coupling and decoupling. The oil capacity is 55 cubic centimeters, with a cylinder effective area measured at 42.1 square centimeters, optimized for smooth fluid power application.
Weighing only 4.5 kilograms, the Enerpac RSM300 enables portability across site applications without sacrificing strength or performance. It is designed to meet ANSI B30.1 standards pertinent to hydraulic cylinders, ensuring high safety and quality compliance.
Common industrial applications include manufacturing line maintenance, facility construction, heavy machinery adjustments, and hydraulic system servicing. This cylinder is suitable for use in industries where confined spaces are a challenge but strong hydraulic force is required.
Set contains: 1 unit of Enerpac Portable Low Height Hydraulic Cylinder RSM300. Compact flat profile designed for tight spaces. Single acting operation with spring return. High quality alloy steel construction with enamel finish.
Chrome plated plunger and hardened saddles for wear resistance. Standardized port connections with female high flow coupler. Designed to ANSI B30.1 for safety and reliability. Lightweight and highly portable at 4.5 kg. Effective area of 42.1 cm² and oil capacity of 55 cm³.
Explore more Hydraulic Cylinders and fluid power tools at EnvMart for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this hydraulic cylinder is 700 bar.
This model has a capacity of 30 tons.
The stroke length of this hydraulic cylinder is 13 mm.
The closed height is 58 mm and the extended height is 71 mm.
The oil capacity of this model is 55 cm³.
This unit operates as a single acting cylinder with a spring return.
The cylinder effective area is 42.1 cm².
It is constructed from high strength alloy steel with a baked enamel finish for corrosion resistance.
This model features standardized port connections of 3/8-18 NPT, equipped with a female high flow coupler.
Common applications include manufacturing line maintenance, facility construction, heavy machinery adjustments, and hydraulic system servicing.
The weight of this hydraulic cylinder is 4.5 kg, making it portable and easy to handle.
Yes, it is designed to meet ANSI B30.1 standards for hydraulic cylinders, ensuring safety and quality compliance.
