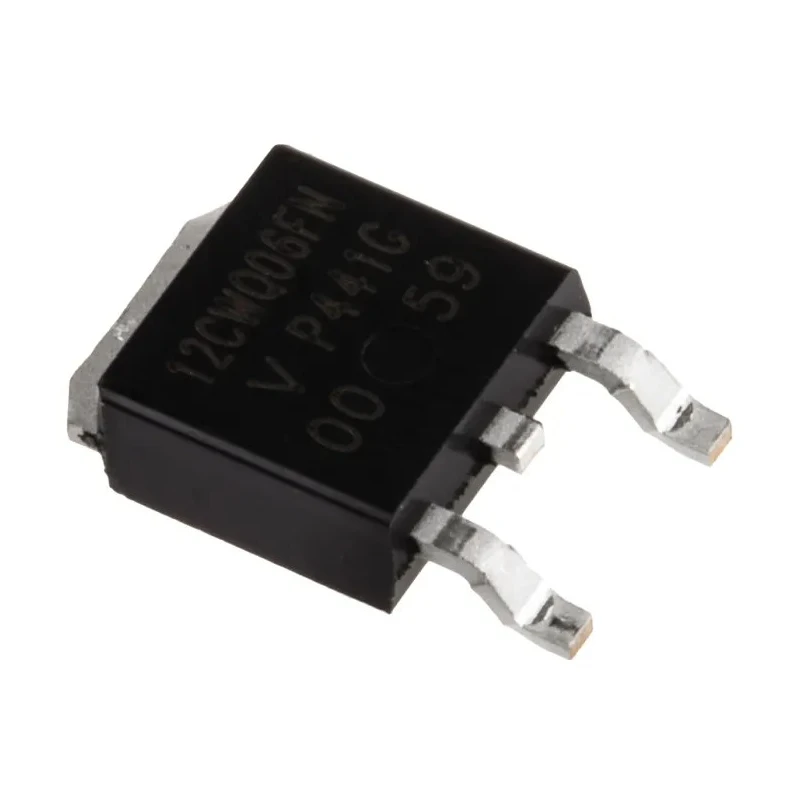

Vishay High-Performance 60 V 12 A Schottky Diode 3-Pin DPAK VS-12CWQ06FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-12CWQ06FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Maximum Forward Voltage Vf | 570mV |
Key Features
- This diode has a maximum continuous forward current of 12 amps.
- It supports a peak reverse repetitive voltage of 60 volts.
- The diode exhibits a low maximum forward voltage of 570 millivolts.
- Designed with a common cathode configuration and 3 pins in a DPAK style package.
- The operating temperature ranges from -55°C to 150°C.
- Its peak non-repetitive forward surge current is 320 amps for robustness.
- Compact dimensions of 6.73 mm length, 6.22 mm width, and 2.39 mm height.
- RoHS compliant construction ensuring environmental safety.
Product Description
Vishay VS-12CWQ06FN-M3 is a high-performance Schottky diode designed for surface mount applications using a TO-252 (DPAK) package. It supports a maximum continuous forward current of 12 A with a peak reverse repetitive voltage of 60 V, making it ideal for power rectification tasks requiring fast switching and low forward voltage drops.
Schottky diodes such as this feature quick reverse recovery times, which minimizes switching losses and enhances efficiency in power electronics, automotive, industrial, and telecommunications systems. The diode has a common cathode configuration with 3 pins, facilitating easy integration on printed circuit boards.
The device operates reliably in a wide temperature range from -55°C to 150°C, suiting harsh environmental conditions. It withstands peak non-repetitive surge currents of up to 320 A, ensuring durability under transient loads.
Measuring just 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height, the compact TO-252 package allows for dense circuit designs and improved thermal dissipation. Compliance with RoHS standards guarantees that the diode meets environmental and safety regulations.
Maximum continuous forward current: 12 A. Peak reverse repetitive voltage: 60 V. Maximum forward voltage: 570 mV. Common cathode diode configuration. Operating temperature range: -55°C to 150°C. Peak non-repetitive forward surge current: 320 A.
Compact TO-252 package for surface mounting. RoHS compliant manufacturing.
This Vishay Schottky diode is widely used in industrial power supplies, automotive electronic controls, telecommunications equipment, and other applications demanding reliable fast-switching diodes with low losses.
For additional products in the Schottky Diode category or other Vishay semiconductor components, explore the EnvMart catalog for comprehensive technical product selections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-12CWQ06FN-M3 Schottky diode is 12 A.
This model has a peak reverse repetitive voltage rating of 60 V.
The maximum forward voltage for the VS-12CWQ06FN-M3 is 570 mV.
The operating temperature range of this diode is from -55°C to 150°C.
This diode is packaged in a TO-252 (DPAK) style package.
The Vishay VS-12CWQ06FN-M3 has a common cathode configuration with 3 pins.
The peak non-repetitive forward surge current rating is 320 A.
The dimensions of the Vishay VS-12CWQ06FN-M3 are 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height.
Yes, the VS-12CWQ06FN-M3 is RoHS compliant, ensuring it meets environmental safety standards.
This diode is a Schottky rectifier, known for its fast switching and low forward voltage drop characteristics.
The Vishay VS-12CWQ06FN-M3 is suitable for power rectification tasks in power electronics, automotive, industrial, and telecommunications systems.
The peak reverse current for the VS-12CWQ06FN-M3 is 3 mA.
