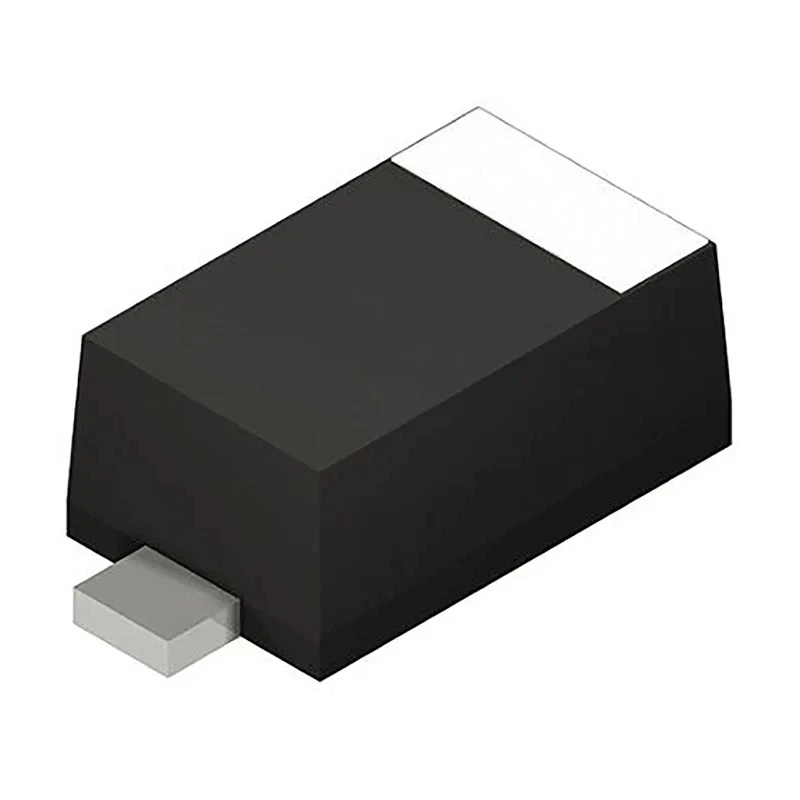

DiodesZetex 40 V 1 A Schottky Diode Surface Mount 2-Pin SOD-123 1N5819HW1-7-F
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 2.8mm |
| Model | 1N5819HW1-7-F |
| Width | 1.9mm |
| Mount Type | Surface |
| Case Material | Molded Plastic. UL Flammability Classification Rating 94V-0 |
| Series | 1N5819HW1 |
| Maximum Operating Temperature | 125°C |
| Case | DO-41 |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Polarity | Cathode Band |
| Marking | Type Number and Date Code |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 750mV |
| Peak Reverse Recovery Time trr | 15ns |
| Moisture Sensitivity | Level 1 per J-STD-020C |
| DiodesZetex 40 V 1 A Diode General Purpose 2-Pin SOD-123 SBR1A40S1-7Brand | DiodesZetex |
Key Features
- This diode features a low forward voltage drop of 750 mV ensuring low power loss.
- It supports a maximum continuous forward current of 1 ampere.
- The device has a peak reverse repetitive voltage rating of 40 volts.
- Constructed with a molded plastic DO-41 case material with UL 94V-0 flammability rating.
- Operating temperature ranges from -55°C to 125°C suitable for demanding environments.
- Complies with RoHS regulations and has lead-free finish for environmental safety.
- Designed with a cathode band polarity marking and marking includes type number and date code.
- Peak reverse current is low at 50 milliamps and fast peak reverse recovery time of 15 nanoseconds.
Product Description
DiodesZetex 1N5819HW1-7-F Schottky Diode is a high-performance 40 V, 1 A surface mount diode housed in a compact SOD-123 package. This device is engineered for efficiency with a low forward voltage of 750 mV, making it suitable for reducing power loss in electronic circuits. The diode features a single diode configuration and a peak reverse voltage of 40 volts, making it robust for voltage clamping and protection circuits.
The construction includes a molded plastic DO-41 case with UL 94V-0 flame retardant rating, ensuring durability and compliance with safety standards. Operating temperature ranges from -55°C minimum to 125°C maximum, guaranteeing reliable operation in harsh environments.
Additional features such as a cathode band polarity marking and clear type number and date code facilitate identification and installation. The diode exhibits fast peak reverse recovery time of 15 ns and low peak reverse current of 50 mA, ensuring high-speed switching capabilities and reduced leakage.
This Schottky diode is lead-free and RoHS compliant, supporting environmentally responsible manufacturing. It is widely used in applications like voltage clamping, low voltage and high frequency inverters, free wheeling diodes, and polarity protection circuits in industrial, electronic component manufacturing, and power supply contexts.
Low forward voltage drop minimizes power losses. High surge current capability up to 30 A peak non-repetitive forward surge. Compact surface mount design conserves PCB space. Robust temperature range for industrial reliability.
Environmentally compliant with lead-free finish and RoHS directive. Clear marking for easy assembly and maintenance. Fast recovery time supports high-frequency switching applications. Effective transient protection design with guard ring construction.
Choose DiodesZetex 1N5819HW1-7-F for efficient, high-reliability Schottky diode applications in electronics and industrial systems. Browse the Schottky Diodes & Rectifiers category on EnvMart for more options and complementary semiconductor components.
