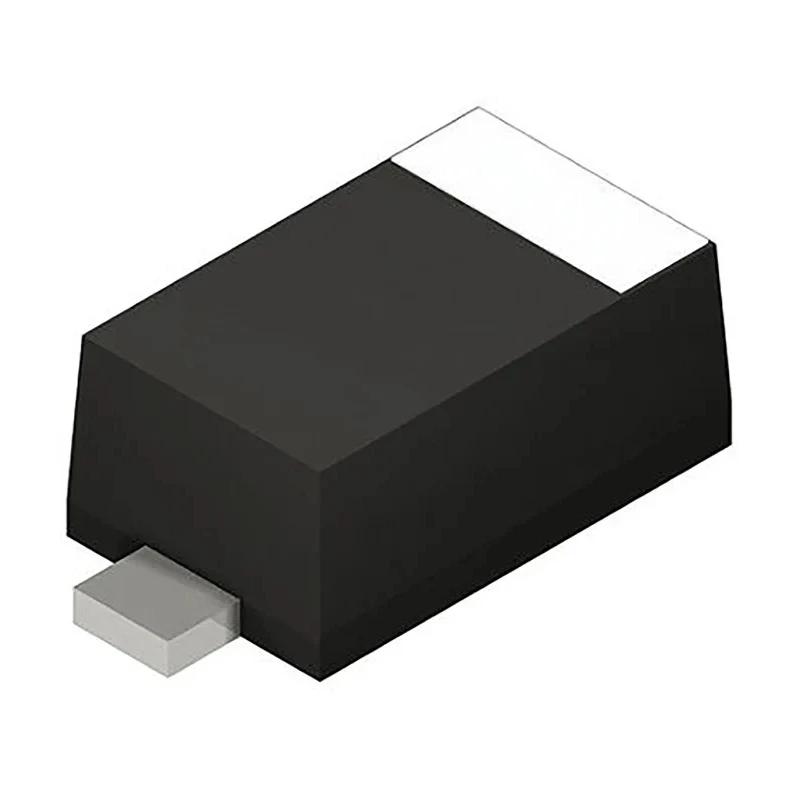

DiodesZetex 40 V 1 A Schottky Diode 2-Pin SOD-123 1N5819HW1-7-F
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 2.8mm |
| Model | 1N5819HW1-7-F |
| Width | 1.9mm |
| Mount Type | Surface |
| Case Material | Molded Plastic. UL Flammability Classification Rating 94V-0 |
| Series | 1N5819HW1 |
| Maximum Operating Temperature | 125°C |
| Case | DO-41 |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Polarity | Cathode Band |
| Marking | Type Number and Date Code |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 750mV |
| Peak Reverse Recovery Time trr | 15ns |
| Moisture Sensitivity | Level 1 per J-STD-020C |
Key Features
- Surface mount package type SOD-123 ensures easy PCB integration.
- Low forward voltage of 750 mV provides high efficiency.
- Peak reverse voltage rated at 40 V for robust blocking capability.
- Fast reverse recovery time of 15 nanoseconds supports high-frequency operations.
- Wide operating temperature range from -55°C to 125°C for reliability.
- Molded plastic case with UL 94V-0 flammability classification enhances safety.
- Features a cathode band polarity marking for correct installation.
- Moisture sensitivity level 1 per J-STD-020C ensures long shelf life.
Product Description
DiodesZetex 1N5819HW1-7-F is a 40 V, 1 A Schottky diode featuring a compact 2-pin SOD-123 surface mount package designed for high efficiency and low power loss in electronic applications.
This diode benefits from a guard ring die construction for transient protection and boasts a low forward voltage drop of 750 mV, enabling high current capability with minimal energy dissipation.
The device supports a peak reverse repetitive voltage of 40 V and a peak reverse current of 50 mA, along with a swift reverse recovery time of 15 ns, making it highly suitable for high-frequency circuits such as voltage clamping, free wheeling, and polarity protection.
The robust molded plastic DO-41 case material complies with UL 94V-0 flammability ratings, ensuring reliability and safety under demanding industrial and commercial environments. It operates reliably over a broad temperature range spanning from -55°C to 125°C.
The diode includes a cathode band for correct polarity identification and meets moisture sensitivity level 1 standards, facilitating prolonged storage and consistent performance. Typical applications include power rectification in low voltage DC/DC converters, voltage clamping in inverters, and protective circuits in automotive and industrial electronics.
Surface mount package for compact installations. Low forward voltage drop enhancing power efficiency. High surge current tolerance for transient loads. Wide operating temperature range. Reliable moisture resistance for long-term storage.
Compact 2-pin design for PCB space saving. This Schottky diode is ideal for use in industrial, automotive, consumer electronics, and laboratory equipment, providing stable and efficient rectification and protection. Explore more Schottky Diodes and semiconductors on EnvMart for diverse application needs and reliable performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage rating is 40 V, providing robust blocking capability for various applications.
This model can handle a maximum continuous forward current of 1 A, making it suitable for high current applications.
The diode has a low forward voltage drop of 750 mV, which enhances its efficiency in power applications.
The dimensions of the SOD-123 package are 2.8 mm in length, 1.9 mm in width, and 1.15 mm in height.
It operates reliably over a wide temperature range from -55°C to 125°C, ensuring performance in various environments.
The reverse recovery time is 15 nanoseconds, supporting high-frequency operations effectively.
This diode supports surface mounting, which facilitates easy integration onto PCBs.
It has a moisture sensitivity level of 1 per J-STD-020C, ensuring long shelf life and reliability during storage.
The peak non-repetitive forward surge current rating is 30 A, allowing it to handle transient loads effectively.
The 1N5819HW1-7-F is a single diode configuration, suitable for various rectification and protection applications.
The molded plastic case material complies with UL 94V-0 flammability classification, enhancing safety in applications.
This diode is suitable for applications such as power rectification in low voltage DC/DC converters, voltage clamping in inverters, and protective circuits in automotive and industrial electronics.
