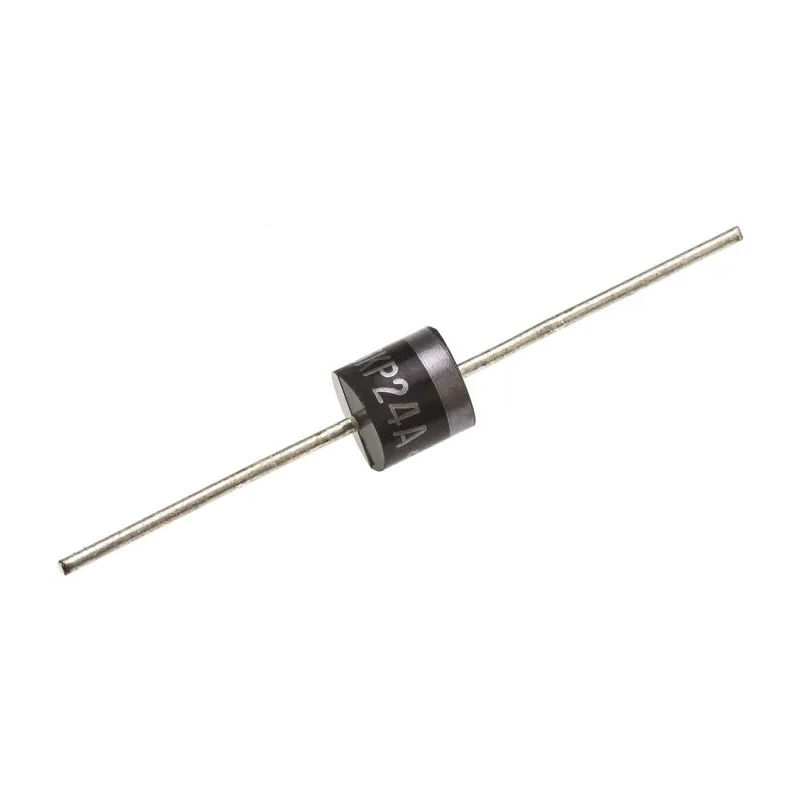

Vishay 1-Element Uni-Directional TVS Diode 5 kW, 2-Pin P600 5KP24A-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | 5KP24A-E3/54 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | P600 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 38.9V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 26.7V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Peak Pulse Power Dissipation Pppm | 5kW |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 129A |
| Maximum Reverse Leakage Current | 2μA |
| TVS unidirectional diode,5KP24A 129ABrand | Vishay |
Key Features
- Single diode element ensures precise protection against voltage spikes.
- Uni-directional design ideal for direction-sensitive circuits.
- Peak pulse power dissipation rated at 5 kW for high surge endurance.
- 2-pin through-hole mounting supports secure PCB installation.
- High clamping voltage of 38.9 V delivers efficient surge absorption.
- Operating temperature range from -55°C to 175°C suits harsh environments.
- Glass passivated junction enhances long-term reliability and stability.
- Automotive AEC-Q101 qualified ensuring automotive industry compliance.
Product Description
Vishay 5KP24A-E3/54 is a high performance 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed for transient overvoltage protection in electronic circuits. Featuring a robust peak pulse power dissipation of 5 kW and housed in a compact 2-pin P600 package, this diode effectively clamps voltage surges, safeguarding sensitive semiconductor devices and components in industrial, automotive, and electronic applications.
The diode configuration is single element with a uni-directional direction type, suitable for circuits requiring directional transient voltage protection. It operates efficiently over a wide temperature range from -55°C to 175°C, making it well-suited for harsh environmental conditions including automotive and industrial use cases.
The 5KP24A-E3/54 provides a minimum breakdown voltage (Vbr) of 26.7 V and a maximum reverse stand-off voltage (Vwm) of 24 V, with a clamping voltage (VC) of 38.9 V, ensuring prompt and reliable surge absorption. It delivers a maximum peak pulse current (Ippm) of 129 A with a test current (It) of 5 mA while maintaining a very low maximum reverse leakage current of 2 μA, which contributes to energy efficiency and circuit durability.
The device is mounted through-hole with a P600 package size featuring 9.1 mm length, width, height, and diameter dimensions, making it compact enough for a variety of PCB designs without sacrificing performance. It utilizes a glass passivated junction for excellent clamp capabilities, very fast response time, and low incremental surge resistance.
Recognized for quality and reliability, the diode is automotive AEC-Q101 qualified, meeting stringent standards for automotive electronics components. This makes it particularly suitable for automotive systems requiring robust transient voltage surge protection against electrostatic discharge (ESD) and power disturbances.
Single diode element configuration for targeted voltage suppression. Uni-directional response ensures directional safety in circuits. 5 kW peak pulse power dissipation manages high-energy transients. Through-hole P600 package supports easy mounting and mechanical stability.
Wide operating temperature range from -55°C to 175°C for versatile use. Rapid response to transient events enhances circuit protection. Glass passivated junction technology for reliable operation over time. AEC-Q101 automotive qualified for high-standard automotive applications.
Low leakage current maintains power efficiency during normal operation. Compact dimensions facilitate integration into varied PCB layouts.
This Vishay TVS Diode is ideal for industrial, automotive, electronics manufacturing, and power supply protection applications requiring dependable transient voltage suppression. It protects components from damage caused by voltage spikes due to switching, lightning, and electrostatic discharge events.
Explore Vishay and other high-quality semiconductors on EnvMart for reliable electronic components and advanced industrial technology solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation is rated at 5 kW, allowing it to handle high-energy transients effectively.
It operates over a wide temperature range from -55°C to 175°C, making it suitable for harsh environments.
The clamping voltage is 38.9 V, ensuring efficient surge absorption during transient events.
This model features a single diode element configuration with a uni-directional design, suitable for directional transient voltage protection.
The P600 package has dimensions of 9.1 mm in length, width, and height, making it compact for PCB integration.
The maximum reverse stand-off voltage is 24 V, which helps in protecting sensitive components from overvoltage conditions.
The maximum peak pulse current rating is 129 A, allowing it to handle significant surge events.
It supports through-hole mounting, which provides secure installation on printed circuit boards (PCBs).
The diode is AEC-Q101 qualified, ensuring compliance with automotive industry standards for electronic components.
The maximum reverse leakage current is 2 μA, contributing to energy efficiency during normal operation.
It is suitable for industrial, automotive, and electronics manufacturing applications requiring transient voltage suppression.
The diode utilizes glass passivated junction technology, which enhances its long-term reliability and stability.
