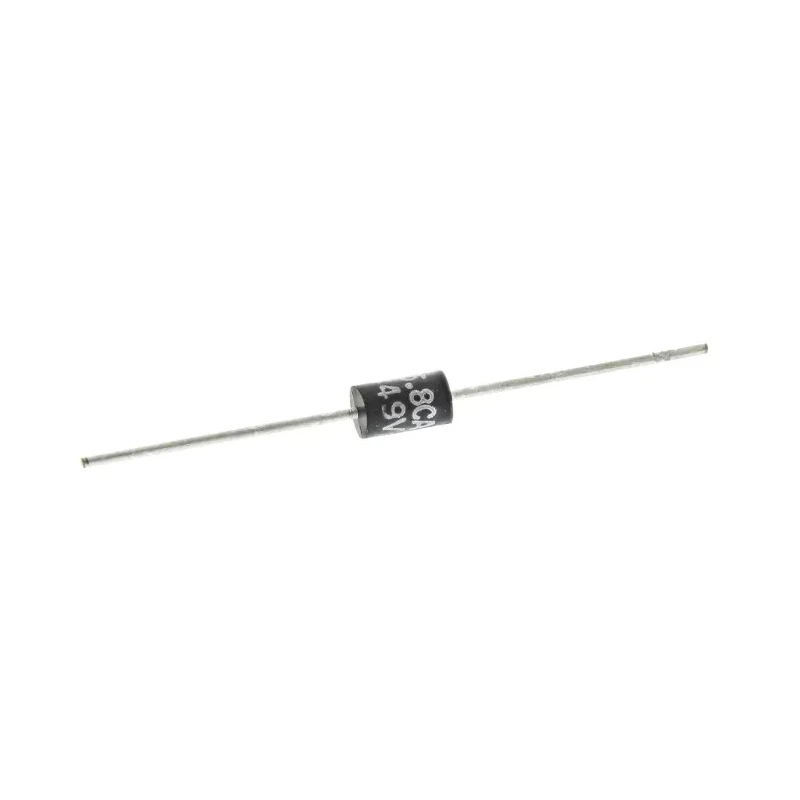

Vishay 1-Element Bi-Directional TVS Diode 1.5 kW 2-Pin Through Hole 1.5KE6.8CA-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE6.8CA-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | 1.5KE |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 10.5V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6.45V |
| Maximum Reverse Stand-off Voltage Vwm | 5.8V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 143A |
| Maximum Reverse Leakage Current | 1mA |
Key Features
- The diode features a minimum breakdown voltage of 6.45 V and maximum reverse stand-off voltage of 5.8 V.
- It operates at temperatures from -55°C to 175°C ensuring reliable performance in harsh environments.
- The device provides excellent ESD protection and supports a peak pulse current of up to 143 A.
- It has precise clamping voltage of 10.5 V to protect sensitive circuits from voltage spikes.
- Package dimensions are compact and axial with a length of 9.5 mm and diameter of 5.3 mm.
- The diode is compliant with AEC-Q101 automotive standard and is designed for through-hole mounting.
- Its robust TRANSZORB TVS series technology ensures effective transient voltage suppression in electronic applications.
Product Description
Vishay 1.5KE6.8CA-E3/54 is a 1-element bi-directional TVS diode designed for protecting sensitive electronic devices from transient voltage spikes. Featuring a peak pulse power dissipation of 1.5 kW and a 2-pin through-hole axial package, this diode is engineered for high reliability in industrial and automotive applications.
The device supports a minimum breakdown voltage of 6.45 volts and a maximum reverse stand-off voltage of 5.8 volts, providing precise voltage clamping at 10.5 volts. This helps safeguard electronic circuits against damaging voltage transients caused by electrostatic discharge (ESD) or inductive load switching.
Vishay 1.5KE6.8CA-E3/54 operates efficiently over a wide temperature range from -55°C up to 175°C, making it suitable for harsh environments including automotive electronics compliant with AEC-Q101 standards. The diode's construction includes a single element per chip in the TRANSZORB TVS series, which is well known for high transient absorption capability.
The compact axial through-hole package measures 9.5 mm in length and 5.3 mm in diameter, simplifying PCB design and assembly. It supports a maximum peak pulse current of 143 amperes and a leakage current limited to 1 mA, ensuring minimal impact on circuit performance under normal conditions.
This TVS diode is ideal for industrial, automotive, and commercial electronics that require robust transient voltage suppression to enhance system reliability and longevity. Typical use cases include power supply protection, telecommunications, and motor control circuits.
The diode features a minimum breakdown voltage of 6.45 V and maximum reverse stand-off voltage of 5.8 V. Wide operating temperature range from -55°C to 175°C suitable for harsh environments. Peak pulse power dissipation of 1.5 kW protects against high energy surges.
Compact 2-pin axial through-hole package with 9.5 mm length and 5.3 mm diameter. Compliance with AEC-Q101 automotive standards ensures automotive reliability. Low leakage current and high peak pulse current rating of 143 A.
Part of Vishay's TRANSZORB TVS Diode series optimized for transient suppression. Explore the wide range of Vishay semiconductor components in the Electronics & Electricals category at EnvMart for quality electronic protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay 1.5KE6.8CA-E3/54 is 1.5 kW, which helps protect against high energy surges in electronic circuits.
This diode features a minimum breakdown voltage of 6.45 V, providing effective clamping during voltage spikes.
The maximum reverse stand-off voltage for this diode is 5.8 V, ensuring it can handle transient voltage conditions safely.
The clamping voltage for the Vishay 1.5KE6.8CA-E3/54 is 10.5 V, which protects sensitive circuits from voltage transients.
This model supports a maximum peak pulse current of 143 A, making it suitable for high-energy applications.
The diode operates efficiently over a wide temperature range from -55°C to 175°C, making it suitable for harsh environments.
The Vishay 1.5KE6.8CA-E3/54 comes in a compact 2-pin through-hole axial package, measuring 9.5 mm in length and 5.3 mm in diameter.
Yes, this diode is compliant with the AEC-Q101 automotive standard, ensuring reliability in automotive applications.
The maximum reverse leakage current for this diode is limited to 1 mA, ensuring minimal impact on circuit performance.
This diode has a single element per chip configuration, designed for effective transient voltage suppression.
The Vishay 1.5KE6.8CA-E3/54 is a bi-directional diode configuration, allowing it to protect against voltage spikes in both directions.
This model is part of Vishay's TRANSZORB TVS series, which is optimized for transient voltage suppression in electronic applications.
