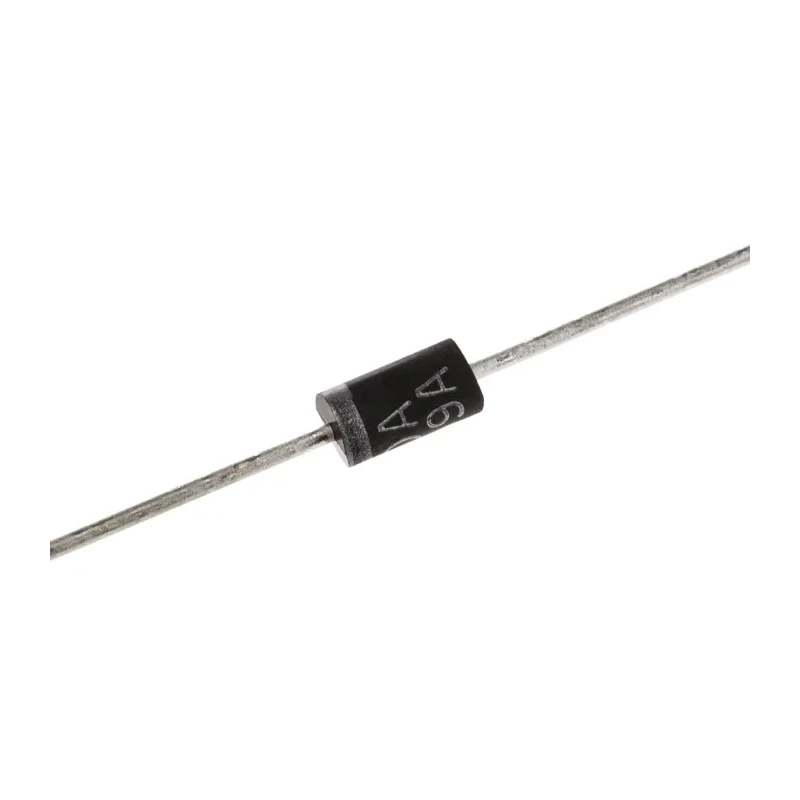

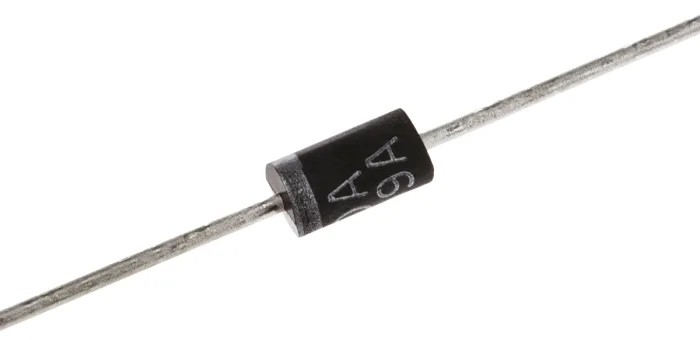

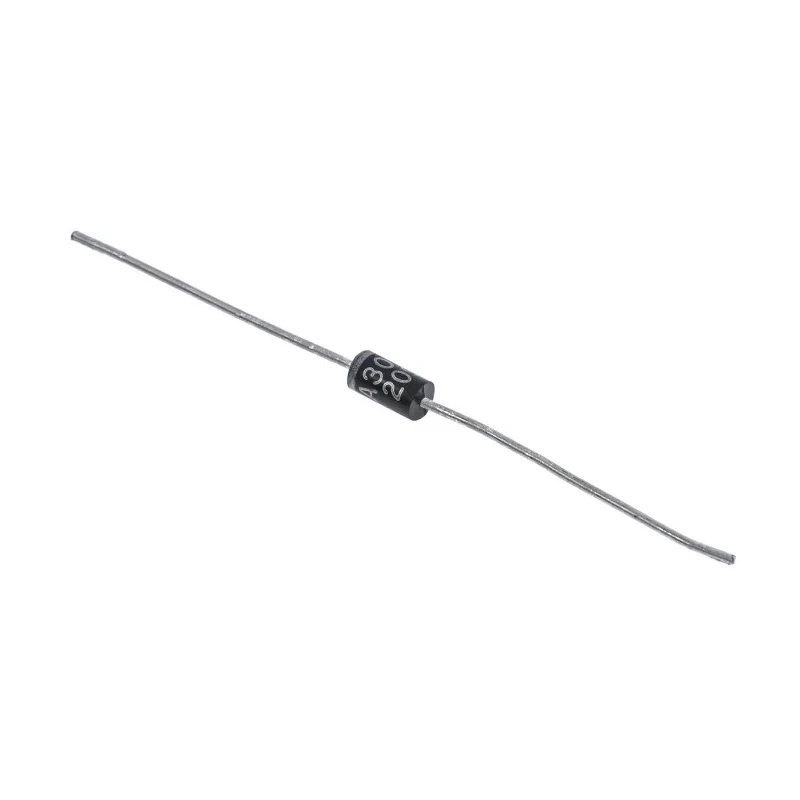

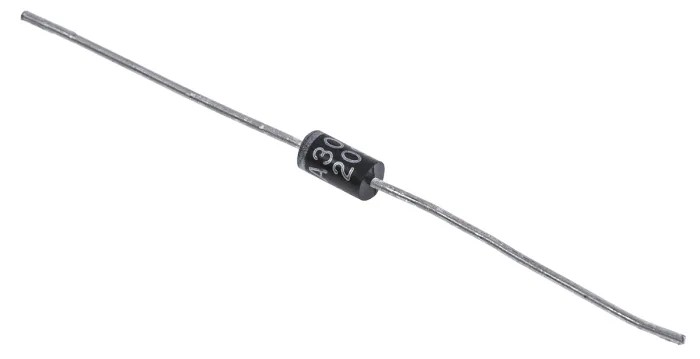

Vishay Uni-Directional Transient Voltage Suppressor 500 W, 2-Pin DO-204AC SA30A-E3/54

Free Delivery in India | Lowest Global Shipping Charges

Vishay Uni-Directional Transient Voltage Suppressor 500 W, 2-Pin DO-204AC SA30A-E3/54

Name: Vishay Uni-Directional Transient Voltage Suppressor 500 W, 2-Pin DO-204AC SA30A-E3/54
Brand: Vishay
SKU: 201003
Price: 0.58 USD
Availability: InStock



Category Discrete Semiconductor Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	3.6mm
Brand	Vishay
Height	3.3mm
Length	7.6mm
Model	SA30A-E3/54
Width	3.3mm
Mount Type	Through Hole
Series	TRANSZORB TVS
Maximum Operating Temperature	175°C
Package Type	DO-204AC
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	48.4V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	33.3V
Maximum Reverse Stand-off Voltage Vwm	30V
Peak Pulse Power Dissipation Pppm	500W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	10A
Maximum Reverse Leakage Current	1μA

Key Features

Single diode configuration ensures reliable uni-directional voltage suppression.
Minimum breakdown voltage of 33.3 V for effective transient protection.
Mount type is through hole for robust PCB installation.
Maximum operating temperature reaches up to 175 degrees Celsius.
Clamping voltage at 48.4 V provides excellent circuit protection.
Features ESD protection compliant with automotive standard AEC-Q101.
Compact dimensions with length 7.6 mm and diameter 3.6 mm.
Peak pulse current capacity of 10 A for transient surges.

Product Description

Vishay SA30A-E3/54 is a 1-element uni-directional transient voltage suppressor designed for robust protection of electronic circuits against voltage spikes. With a maximum peak pulse power dissipation of 500 W, this device withstands transient surges effectively in both industrial and automotive electronic applications.

This transient voltage suppressor features a single diode configuration and a compact DO-204AC through-hole package comprising 2 pins, making it suitable for printed circuit board mounting in varying environments. Its voltage characteristics include a minimum breakdown voltage (Vbr) of 33.3 V and a clamping voltage (Vc) of 48.4 V, which ensure it clamps high voltage transients safely.

Operating reliably across a broad temperature range from -55°C to 175°C, the device is compliant with the stringent automotive AEC-Q101 standard, confirming its suitability for automotive system protection. The device's peak pulse current (Ippm) rating of 10 A supports high surge events, safeguarding sensitive electronic components from damage.

Single diode configuration ensures reliable uni-directional voltage suppression. Mount type is through hole for strong mechanical stability in PCB assembly. Compact axial package with length of 7.6 mm, height and width approx. 3.3 mm.

Maximum reverse leakage current is minimal at 1µA, reducing unnecessary power consumption. Automotive grade protection per AEC-Q101 certification for use in automotive electronics. Operating temperature range from -55°C to 175°C supports harsh environmental conditions.

Peak pulse power dissipation of 500 W protects circuits during voltage transients. Clamping voltage at 48.4 V for effective voltage surge mitigation.

This Vishay transient voltage suppressor is ideal for industrial electronic equipment, automotive systems, power supply protection, and other applications requiring reliable surge suppression. Its through-hole package facilitates easy installation in circuit boards for manufacturing and repair processes.

Explore more Vishay semiconductor devices and transient voltage suppressors in the EnvMart industrial and electronics catalog for comprehensive solutions tailored to your protection needs.

Explore more products in our Discrete Semiconductor category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The peak pulse power dissipation of the Vishay SA30A-E3/54 is 500 W, allowing it to effectively withstand transient surges in electronic circuits.

The minimum breakdown voltage (Vbr) for this device is 33.3 V, ensuring effective transient protection.

The clamping voltage (Vc) of this transient voltage suppressor is 48.4 V, which provides excellent circuit protection during voltage transients.

This model can operate at a maximum temperature of 175°C, making it suitable for harsh environments.

The peak pulse current capacity of the Vishay SA30A-E3/54 is 10 A, which supports high surge events effectively.

The dimensions of the DO-204AC package are 7.6 mm in length, 3.3 mm in width, and 3.3 mm in height, with a diameter of 3.6 mm.

This transient voltage suppressor features a through-hole mount type, ensuring robust PCB installation.

Yes, the SA30A-E3/54 is compliant with the automotive standard AEC-Q101, confirming its suitability for automotive applications.

The maximum reverse leakage current for this model is minimal at 1 µA, which helps reduce unnecessary power consumption.

This model features a single diode configuration, providing reliable uni-directional voltage suppression.

The minimum operating temperature for the Vishay SA30A-E3/54 is -55°C, allowing it to function in extreme conditions.

This transient voltage suppressor is suitable for industrial electronic equipment, automotive systems, and power supply protection, among other applications requiring reliable surge suppression.
