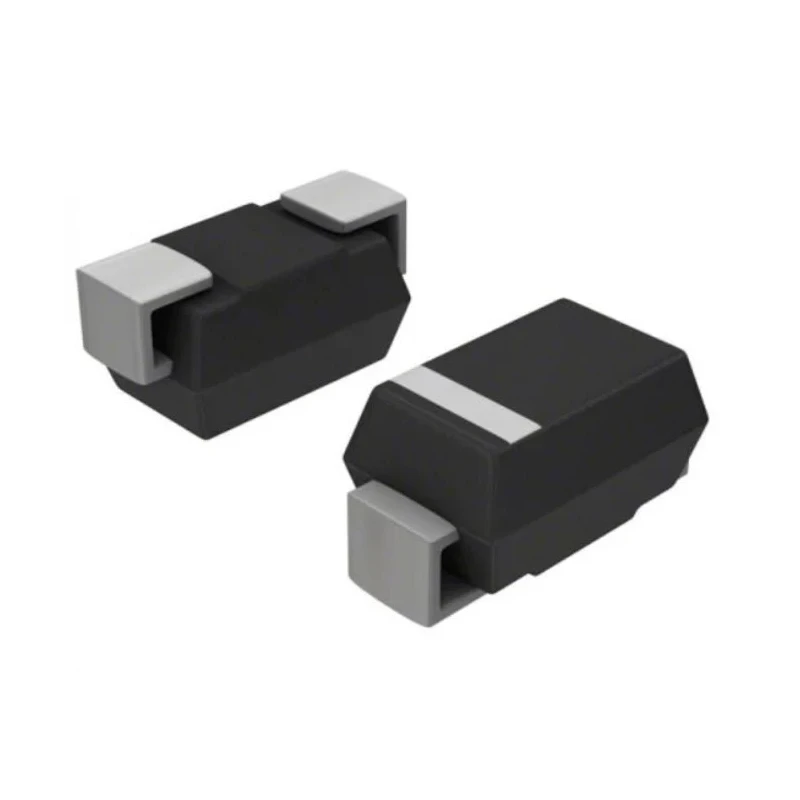

Vishay 1-Element Uni-Directional TVS Diode 600 W 2-Pin DO-214 SMBJ24A-E3/52

Vishay SMBJ24A-E3/52 is a 1-element uni-directional TVS diode designed for transient voltage suppression in sensitive electronics. It features a 600 W peak pulse power rating with a 2-pin DO-214 surface mount package that facilitates automated placement and compact integration.

This diode ensures excellent clamping capability with a minimum breakdown voltage of 26.7 V and a maximum reverse stand-off voltage of 24 V. It operates reliably over a temperature range from -55°C to 150°C, complying with automotive standard AEC-Q101, making it suitable for automotive, industrial, and telecommunications applications.

Key benefits include very fast response time to voltage transients, low incremental surge resistance, and low maximum reverse leakage current of 1 μA, minimizing power loss and protecting circuit components. It is glass passivated for durability and available in both uni-directional and bi-directional configurations.

The compact dimensions of 4.57 mm length, 3.94 mm width, and 2.24 mm height, combined with surface mount technology, support automated manufacturing and efficient PCB layouts. The diode is ideal for safeguarding ICs, MOSFETs, signal lines, and sensor units from electrical surges typical in consumer, industrial, and telecommunications equipment.

Single element diode configuration suitable for uni-directional transient voltage suppression. Peak pulse power dissipation of 600 W ensures reliable protection under voltage transients. Operating temperature range from -55°C to 150°C for robust use in diverse environments.

Compact surface mount design with dimensions 4.57mm length, 3.94mm width, and 2.24mm height. Meets automotive standard AEC-Q101 for quality and reliability in automotive applications. Low maximum reverse leakage current of 1μA ensures minimal power loss during normal operation.

Fast response time protects sensitive electronics from voltage spikes effectively. Ideal for use in consumer, computer, industrial, and telecommunication electronic devices.

This TVS Diode from Vishay belongs to the TRANSZORB series, known for superior surge protection and durability. It supports the protection of electronic components in multiple industrial sectors including manufacturing, automotive, telecommunications, and consumer electronics. For additional industrial-grade components, browse the Electronics & Electricals section at EnvMart.
