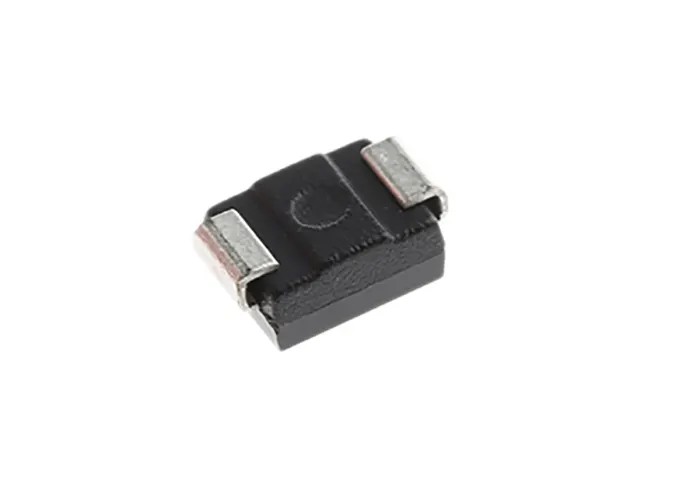

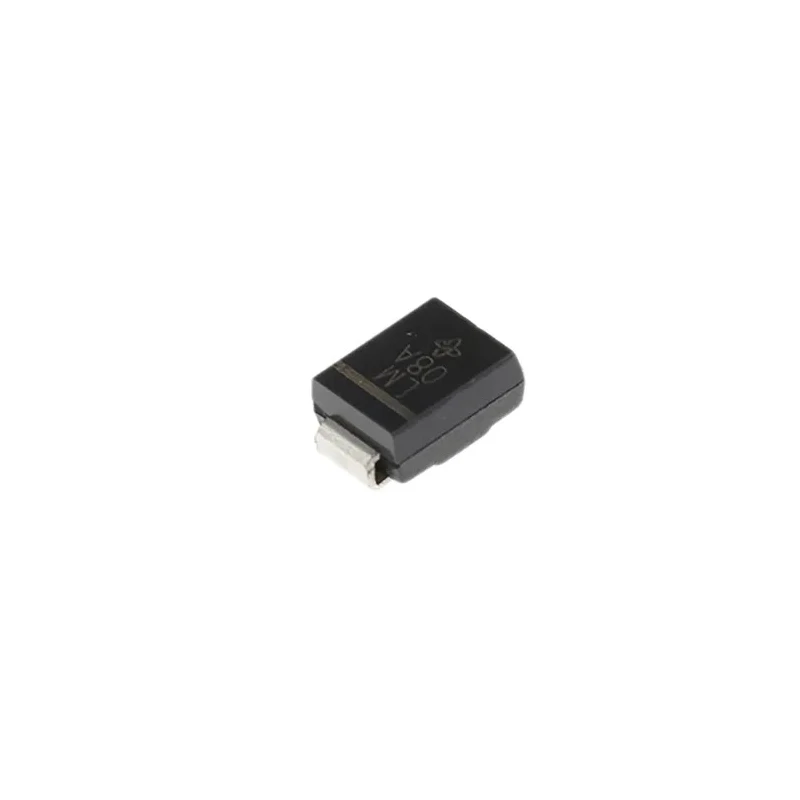

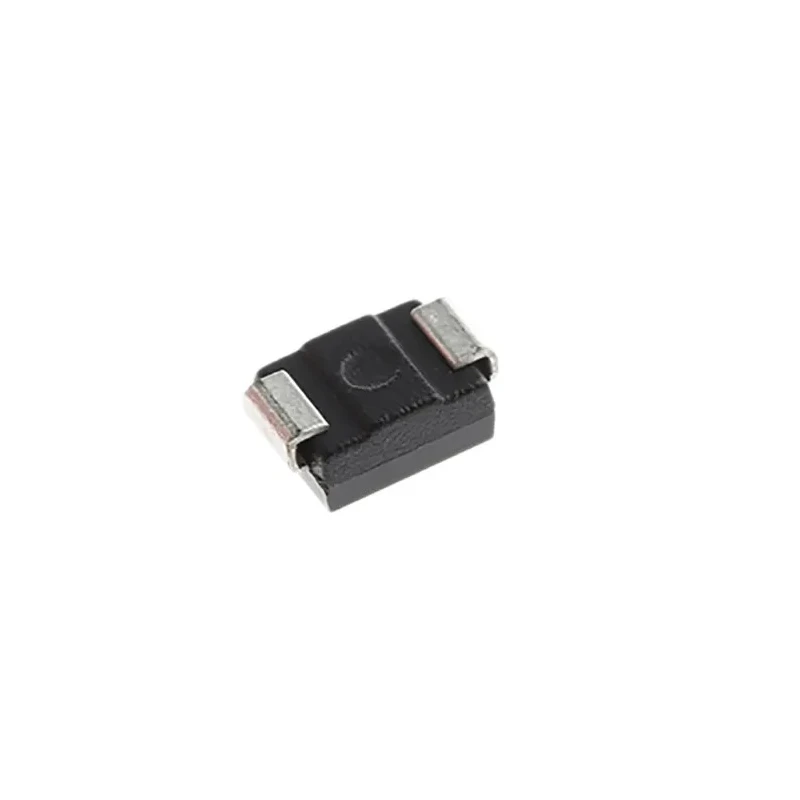

Vishay 1-Element Uni-Directional TVS Diode 600 W, 2-Pin, Surface Mount DO-214 SMBJ15A-E3/52
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | SMBJ15A-E3/52 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 24.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 16.7V |
| Maximum Reverse Stand-off Voltage Vwm | 15V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 24.6A |
| Maximum Reverse Leakage Current | 1μA |
| Vishay SMBJ15A, Uni-Directional TVS Diode, 600W, 2-Pin SMBBrand | Vishay |
Key Features
- Features a single diode uni-directional configuration for transient voltage suppression.
- Offers minimum breakdown voltage of 16.7 V and maximum reverse stand-off voltage of 15 V.
- Peak pulse power dissipation capacity of 600 W with 10/1000 µs waveform.
- Housed in a low profile surface mount DO-214 package with 2 pins.
- Operates reliably over temperature range from -55°C to 150°C.
- Glass passivated chip junction ensures high reliability and stability.
- Meets automotive industry AEC-Q101 quality standards.
- Provides low reverse leakage current of 1 µA for minimal power loss.
Product Description
Vishay SMBJ15A-E3/52 is a high-performance uni-directional transient voltage suppressor (TVS) diode designed to protect sensitive electronic components from voltage transients induced by inductive load switching, lightning, and other transient events. This 1-element diode features a peak pulse power dissipation capacity of 600 W with a 10/1000 μs waveform and is housed in a low profile, surface mount DO-214 package measuring 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
Featuring a minimum breakdown voltage of 16.7 V and a maximum reverse stand-off voltage of 15 V, the SMBJ15A-E3/52 offers reliable clamping voltage protection at 24.4 V, making it ideal for protecting ICs, MOSFETs, and signal lines in consumer electronics, industrial control systems, and telecommunications devices. Its fast response time and low incremental surge resistance enhance transient suppression efficiency while maintaining low leakage current of just 1 μA.
The diode meets automotive grade AEC-Q101 reliability standards and is glass passivated to ensure long-term stability across an operating temperature range from -55°C to 150°C. This makes it well-suited for use in automotive electronics, industrial equipment, and harsh environmental conditions.
The SMBJ15A-E3/52 is easy to place using automated surface mount technology on PCBs. It provides robust ESD protection and effectively safeguards sensitive components from damaging voltage spikes.
Single diode, uni-directional configuration for transient voltage suppression. Peak pulse power dissipation of 600 W at 10/1000 μs waveform. Surface mount DO-214 package enabling compact PCB layouts. Wide operating temperature from -55°C to 150°C.
Low leakage current of 1 μA ensures minimal power loss. Glass passivated chip junction for high reliability. Meets AEC-Q101 automotive quality and reliability standards. Ideal for protecting ICs, MOSFETs, sensors, and telecom lines.
This product is suitable for use in industrial, automotive, telecommunications, manufacturing, and electronic equipment applications requiring durable and fast-acting transient voltage protection.
Explore more semiconductor protection devices and TVS Diodes in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation capacity of the SMBJ15A-E3/52 is 600 W with a 10/1000 μs waveform.
The minimum breakdown voltage for this uni-directional diode is 16.7 V.
The maximum reverse stand-off voltage of this diode is 15 V.
The clamping voltage for this model is 24.4 V.
It operates reliably over a temperature range from -55°C to 150°C.

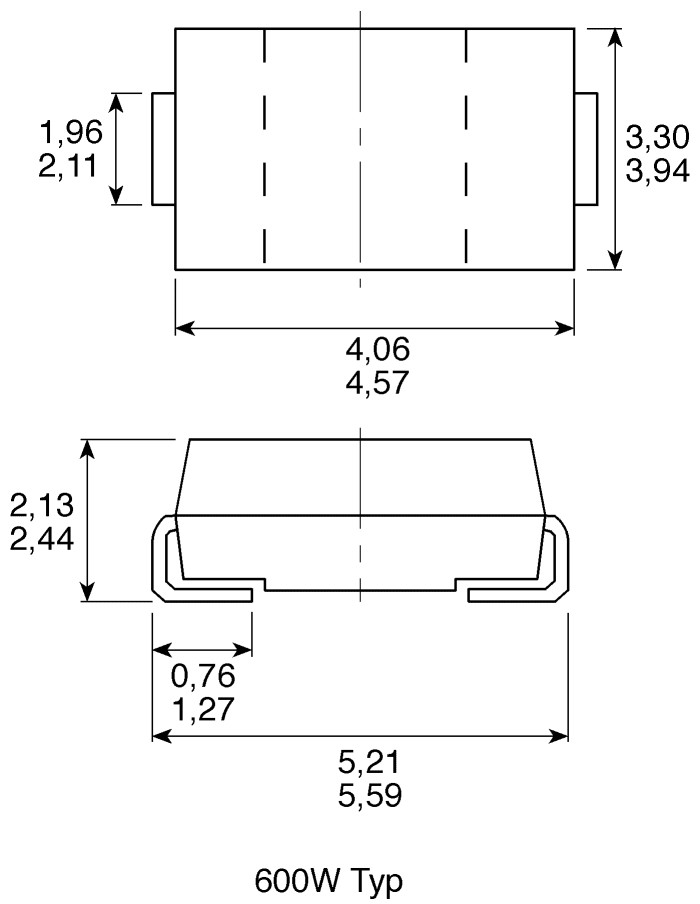

The dimensions of the DO-214 package are 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
The maximum reverse leakage current is 1 μA, ensuring minimal power loss.
This model meets the automotive industry AEC-Q101 quality standards.
It has a total of 2 pins.
The test current for the SMBJ15A-E3/52 is 1 mA.
The maximum peak pulse current is 24.6 A.
It features a single diode uni-directional configuration for transient voltage suppression.
