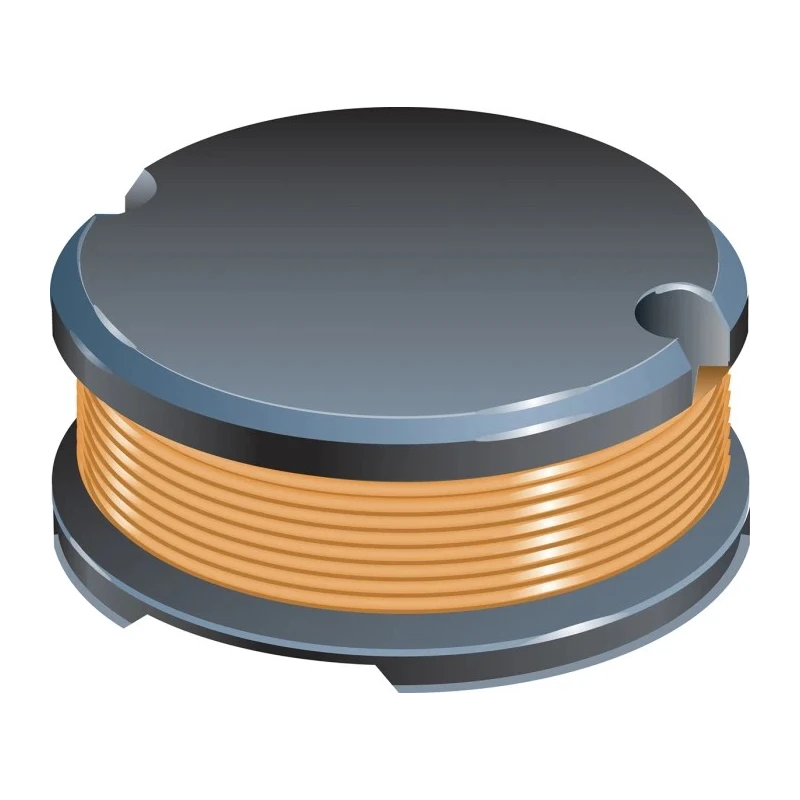

Bourns Wirewound Surface Mount Inductor 2.2μH Ferrite Core ±20% 2.8A 0604 Package SDR0604
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.8mm |
| Brand | Bourns |
| Height | 4.8mm |
| Length | 5.8mm |
| Model | SDR0604 |
| Depth | 5.8mm |
| Packaging | Tape & Reel |
| Series | SDR0604 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | 0604 |
| Maximum DC Current | 2.8A |
| Maximum DC Resistance | 60mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 79MHz |
| Minimum Quality Factor | 33 |
| Inductor Construction | Ferrite Core |
Key Features
- Features ferrite DR core construction ensuring stable inductance.
- Unshielded design suitable for surface mounting applications.
- Resistant to operating temperatures ranging from -40°C to 125°C.
- Maximum DC resistance is 60mΩ, enabling efficient current flow.
- Maximum self-resonant frequency is 79MHz for high-frequency performance.
- Minimum quality factor of 33 ensures low energy loss.
- Packaged in tape and reel format for automated PCB assembly.
- Dimensionally compact with length, diameter, and depth of 5.8mm and height of 4.8mm.
Product Description
Bourns SDR0604 is a wirewound Surface Mount Inductor designed with a ferrite DR core to provide reliable inductance of 2.2μH with an inductance tolerance of ±20%. This inductor supports a maximum DC current of 2.8A and exhibits a low maximum DC resistance of 60mΩ, facilitating efficient power conversion and signal filtering.
The component features a compact 0604 package with a length, diameter, and depth of 5.8mm and a profile height of 4.8mm, optimized for surface mount technology on printed circuit boards. It is unshielded but offers robust performance across a wide operating temperature range from -40°C to 125°C, making it suitable for various harsh environmental conditions.
This inductor's maximum self-resonant frequency of 79MHz and a minimum quality factor of 33 enables stable operation in high-frequency electronic circuits. It is packaged in tape and reel format, supporting automated placement in manufacturing processes.
The SDR0604 series is suitable for use in DC/DC converters, portable communications equipment, camcorders, LCD TVs, and other power supply circuits where compact size and reliable inductance are critical.
Features ferrite DR core construction ensuring stable inductance. Unshielded design suitable for surface mounting applications. Resistant to operating temperatures ranging from -40°C to 125°C. Maximum DC resistance is 60mΩ, enabling efficient current flow.
Maximum self-resonant frequency is 79MHz for high-frequency performance. Minimum quality factor of 33 ensures low energy loss. Packaged in tape and reel format for automated PCB assembly. Dimensionally compact with length, diameter, and depth of 5.8mm and height of 4.8mm.
Compliant with RoHS standards assuring environmental safety.
Bourns inductors like the SDR0604 provide key passive components for electronics manufacturers and designers. Explore the Electronics & Electricals category on EnvMart for related inductors and surface mount components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SDR0604 inductor has an inductance value of 2.2μH with an inductance tolerance of ±20%.
This model supports a maximum DC current of 2.8A, allowing for efficient power handling in various applications.
The maximum operating temperature for this inductor is 125°C, making it suitable for use in high-temperature environments.
The maximum self-resonant frequency of the SDR0604 is 79MHz, which enables stable operation in high-frequency circuits.
This unit has a length, diameter, and depth of 5.8mm and a height of 4.8mm, making it compact for surface mounting.
The inductor is constructed with a ferrite DR core, which ensures stable inductance performance.
The minimum quality factor for this model is 33, which helps in reducing energy loss during operation.
It is packaged in tape and reel format, facilitating automated PCB assembly processes.
The maximum DC resistance of the SDR0604 is 60mΩ, which supports efficient current flow.
This inductor can operate within a temperature range from -40°C to 125°C, suitable for various environmental conditions.
Yes, the SDR0604 is compliant with RoHS standards, ensuring environmental safety.
This inductor is suitable for use in DC/DC converters, portable communications equipment, camcorders, and LCD TVs.
