Vishay Visible Light Phototransistor Surface Mount 2-Pin 0805 Package TEMT6200FX01

Free Delivery in India | Lowest Global Shipping Charges

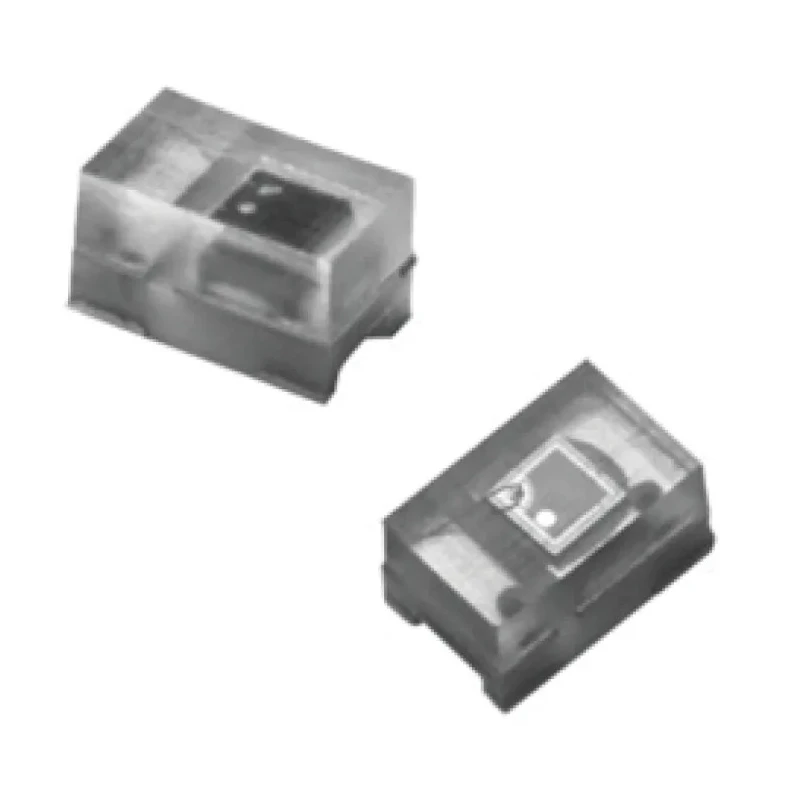

Vishay Visible Light Phototransistor Surface Mount 2-Pin 0805 Package TEMT6200FX01

Name: Vishay Visible Light Phototransistor Surface Mount 2-Pin 0805 Package TEMT6200FX01
Brand: Vishay
SKU: 218023
Price: 0.6 USD
Availability: InStock



Category Phototransistor Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Dimensions	2 x 1.25 x 0.85 mm
Height	0.85mm
Length	2mm
Model	TEMT6200FX01
Packaging	Tape & Reel
Width	1.25mm
Mount Type	Surface
Series	TEMT
Maximum Operating Temperature	100°C
Package Type	0805
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	J-STD-020
Number of Pins	2
Typical Rise Time	4.5μs
Typical Fall Time	5.6μs
Automotive Standard	AEC-Q101
Peak Wavelength	550nm
Spectrums Detected	Visible Light
Angle of Half Sensitivity	±60 °
Collector Current	20mA
Maximum Light Current	39μA
Maximum Dark Current	50nA
Collector Emitter Voltage	6V
Emitter Collector Voltage	1.5V

Key Features

Provides high photo sensitivity for visible spectrum detection.
Features a ±60° angle of half sensitivity for broad light reception.
Compact 0805 footprint with dimensions 2 x 1.25 x 0.85 mm.
Equipped with suppression filter to reduce near-infrared radiation interference.
Typical rise and fall times are 4.5μs and 5.6μs respectively for fast response.
Maximum collector current of 20mA supports various sensing circuits.
Designed to function within -40°C to 100°C operating temperature range.
Complies with J-STD-020 and automotive AEC-Q101 standards.

Product Description

The Vishay TEMT6200FX01 is a high-performance visible light phototransistor tailored for ambient light sensing in industrial, automotive, and consumer electronic applications. It features a 2-pin surface mount package conforming to the 0805 size standard with precise dimensions of 2 mm length, 1.25 mm width, and 0.85 mm height, making it suitable for compact PCB layouts.

This phototransistor provides a ±60° angle of half sensitivity, enabling it to effectively detect ambient light over a wide range. It incorporates a suppression filter that minimizes interference from near-infrared radiation, enhancing its accuracy in visible spectrum detection with a peak wavelength sensitivity at 550 nm.

The device exhibits fast switching capabilities, with typical rise and fall times of 4.5μs and 5.6μs, respectively. Electrical specifications include a maximum collector current of 20 mA, maximum allowable collector-emitter voltage of 6 V, and emitter-collector voltage of 1.5 V. The phototransistor supports operation in harsh environments with a temperature range from -40°C to 100°C.

Manufactured to meet stringent quality standards such as J-STD-020 and automotive AEC-Q101, the TEMT6200FX01 ensures reliable performance in automotive and industrial sensing applications. It is packaged on tape and reel to enable seamless integration in automated production processes.

Provides high photo sensitivity for visible light detection. Wide angle of half sensitivity at ±60° for ambient light sensing. Compact 0805 surface mount package ideal for space-constrained designs. Suppression filter reduces near-infrared interference.

Fast response times enhance sensor accuracy. Robust electrical ratings with 20mA max collector current. Wide operating temperature from -40°C to 100°C. Meets J-STD-020 and automotive AEC-Q101 standards. Packaged for automatic mounting with tape and reel packaging.

Suitable for automotive sensors and consumer electronics backlight control.

The Vishay TEMT6200FX01 phototransistor is an excellent choice for applications requiring sensitive and rapid ambient light detection in both commercial and automotive environments. Explore a broad range of Phototransistor products and optical components with Vishay at EnvMart.
