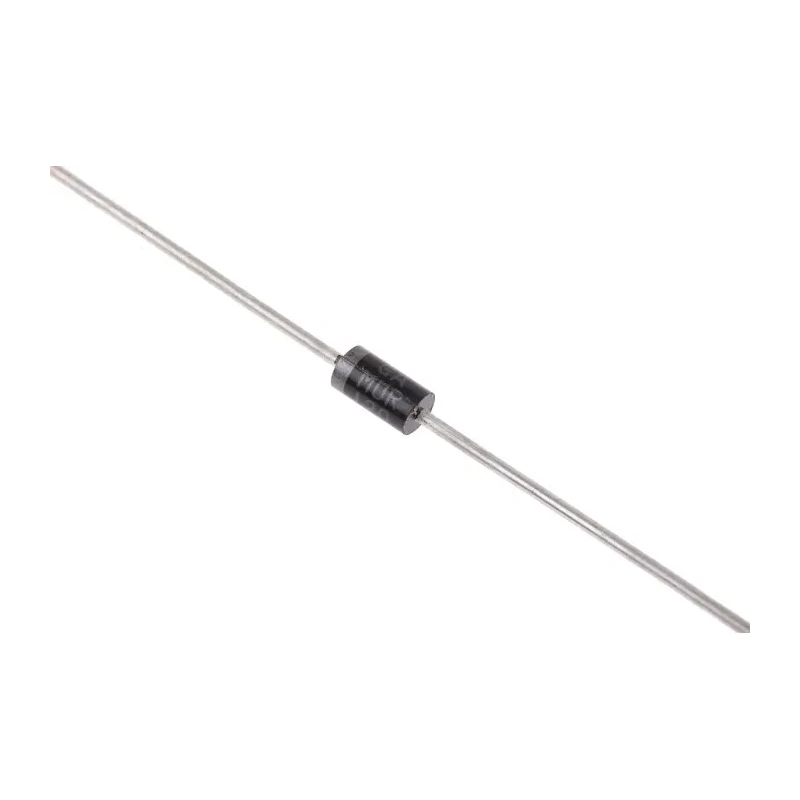

onsemi Switching Diode 1 A Maximum Continuous Forward Current 200 V Peak Reverse Repetitive Voltage DO-41 Package MUR120RLG

onsemi MUR120RLG is a 200 V, 1 A switching diode supplied in a 2-pin DO-41 package designed for through-hole mounting. This single configuration diode is optimized for semiconductor applications requiring high speed recovery and low forward voltage drop. It serves reliably in electronic circuits including automotive, industrial, and consumer electronics.

The diode supports a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 200 volts, enabling stable operation in demanding electrical conditions. Its peak reverse recovery time of 35 nanoseconds allows efficient switching performance crucial for power management and rectification tasks.

Operating temperature range spans from -65°C to 175°C, allowing usage in extreme thermal environments encountered in automotive and industrial settings. The diode complies with the AEC-Q101 automotive standard, ensuring dependable performance under automotive system stresses.

This diode is physically compact with length 5.2 mm, diameter and width of 2.7 mm each, making it suitable for dense PCB designs. Its low peak reverse current of 2 microamperes minimizes leakage and power loss, while the maximum forward voltage drop of 1.25 V enhances efficiency.

With a peak non-repetitive forward surge current of 35 A, it is capable of handling transient surges, protecting circuits during unexpected load conditions. This durable and efficient diode is ideal for demanding semiconductor switching applications across various industrial, automotive, and power electronics uses.

Maximum continuous forward current of 1 ampere ensures reliable performance under load. Peak reverse repetitive voltage rating of 200 volts provides strong blocking capability. Single diode with 2 pins in DO-41 package for through-hole mounting.

Low maximum forward voltage of 1.25 volts for improved efficiency. Fast peak reverse recovery time of 35 nanoseconds for high-speed switching. Wide operating temperature range from -65°C to 175°C for harsh environments. AEC-Q101 automotive qualification ensures suitability for automotive applications.

Compact dimensions (5.2 mm length, 2.7 mm diameter and width) for PCB space savings. High peak non-repetitive forward surge current of 35 amps supports surge tolerance. Minimal peak reverse current of 2 microamperes reduces leakage losses.

This onsemi switching diode is widely used in electronics, automotive, industrial, and power management applications requiring reliable rectification and switching. Explore our Schottky Diodes & Rectifiers category for more semiconductor components suited for advanced electronic designs.
