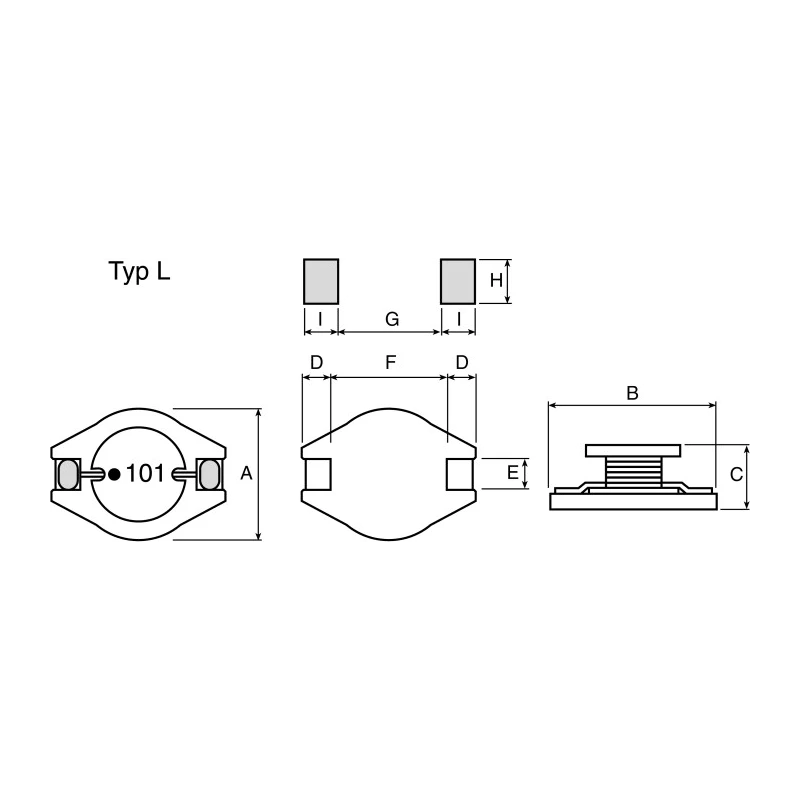

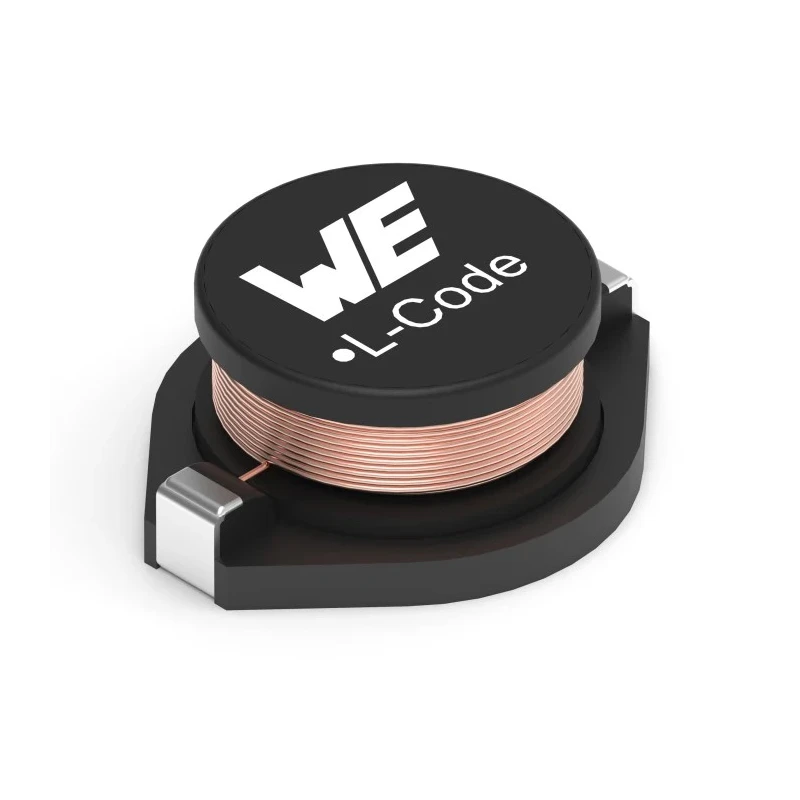

Wurth Elektronik WE-PD4 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20% 800 mA 6.6 mm 74455122
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.92mm |
| Length | 6.6mm |
| Model | 74455122 |
| Depth | 4.45mm |
| Packaging | Reel |
| Series | WE-PD4 |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 800mA |
| Maximum DC Resistance | 370mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 20MHz |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact surface mount design with a ferrite core optimized for low losses.
- Operates efficiently up to 100°C and meets AEC-Q200 automotive standards.
- Maximum DC resistance is 370 mΩ enabling effective current handling.
- Suitable for high-efficiency switched-mode power supplies and interference suppression applications.
- No magnetic shielding, maximizing performance in compact circuits.
- Maximum self-resonant frequency is 20 MHz for versatile frequency applications.
- Packaged on reels for automated assembly processes.
- Operating temperature range from -40°C to 100°C supports diverse environments.
Product Description
Wurth Elektronik 74455122 WE-PD4 series wirewound surface mount inductor with a ferrite core features an inductance of 22 μH ±20% and is designed for efficient operation with up to 800 mA DC current. This component has a compact footprint with a length of 6.6 mm, height of 2.92 mm, and depth of 4.45 mm, making it ideal for space-constrained applications.
Constructed with a low-loss ferrite core and employing a wirewound design, the inductor delivers excellent performance in power conversion and interference suppression tasks. It is rated to operate within a temperature range of -40°C to 100°C, ensuring reliability under varying conditions. The product conforms to the automotive standard AEC-Q200, guaranteeing suitability for automotive electronic applications.
This unshielded inductor does not include magnetic shielding, allowing optimal magnetic flux performance. It exhibits a maximum DC resistance of 370 mΩ, which supports effective current flow with minimal energy loss, and a maximum self-resonant frequency of 20 MHz, supporting operation in high-frequency circuits.
The product is supplied on reels, facilitating automated pick-and-place assembly for efficient high-volume manufacturing. Typical applications include high efficiency switched-mode power supplies (SMPS) and interference suppression circuits found in industrial, automotive, telecommunications, and consumer electronics sectors.
Compact wirewound inductor with ferrite core for low losses. High current rating of up to 800 mA DC. Meets automotive quality standard AEC-Q200. Wide operating temperature range from -40°C to 100°C. Surface mount termination style suitable for modern PCB assembly.
Maximum self-resonant frequency of 20 MHz for versatile use. Unshielded design for enhanced magnetic performance. Packaged on reels for automated assembly convenience.
Explore more Surface Mount Inductors and related components from Wurth Elektronik in the Electronics Components category at EnvMart for your industrial and commercial electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with a tolerance of ±20%.
This inductor has a maximum DC current rating of 800 mA.
The dimensions of this unit are 6.6 mm in length, 4.45 mm in depth, and 2.92 mm in height.
It can operate at a maximum temperature of 100°C.
Yes, it conforms to the AEC-Q200 automotive standard, making it suitable for automotive applications.
The maximum self-resonant frequency is 20 MHz, allowing for versatile frequency applications.
The core material of this inductor is ferrite, which is optimized for low losses.
This model features a surface mount termination style, suitable for modern PCB assembly.
The maximum DC resistance is 370 mΩ, enabling effective current handling with minimal energy loss.
It is packaged on reels, facilitating automated pick-and-place assembly for high-volume manufacturing.
Typical applications include high-efficiency switched-mode power supplies and interference suppression circuits in various sectors.
This product complies with RoHS standards, ensuring it meets environmental regulations.
