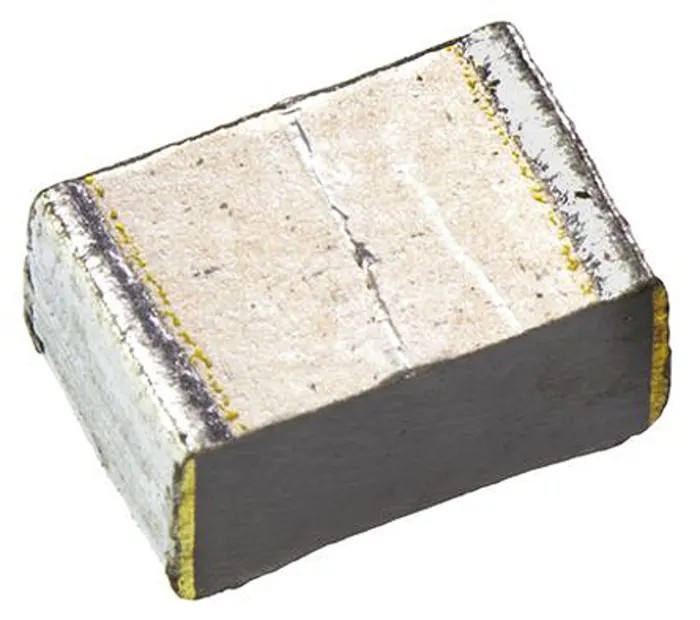

Panasonic ECHU(X) 16 V dc 16V ac Film Capacitor 1 nF Surface Mount ECHU1C102GX5

Panasonic ECHU1C102GX5 is a 16 V dc and 16 V ac rated Film Capacitor featuring 1 nF capacitance and surface mount package. It uses stacked metallised PPS film construction that eliminates mould housing, providing a lightweight and compact component well-suited for modern electronic devices.

This ECHU(X) series capacitor supports reflow soldering, ensuring ease of manufacturing on PCBs with surface mount technology. It is rated to operate reliably up to 125°C, making it robust for demanding industrial and commercial electronics.

The capacitor offers very low Equivalent Series Resistance (ESR), which is crucial for maintaining signal integrity in filtering and audio circuits. Its dimensions are precise at 1.6 mm length, 0.8 mm width, and 0.7 mm height, making it ideal for densely packed electronic assemblies.

Applications include use in time-constant circuits, oscillation and resonance circuits, filtering stages, and audio signal paths. The RoHS certification reflects its compliance with environmental regulations, making it a sustainable choice for manufacturers.

Constructed with metallised PPS film for high reliability. Compact and lightweight surface mount design. Rated for 16 V dc and 16 V ac operation. Maximum temperature tolerance of 125°C for harsh environments. Low ESR for improved performance in high-frequency applications.

Ideal for use in audio, filtering, oscillation, and time-constant circuits. Compliant with RoHS standards for eco-friendly manufacturing.

Suitable for industrial, commercial, consumer electronics, and automotive non-automotive standard use cases. This capacitor helps improve circuit stability and performance in various electronic designs.

Discover more components like this and optimize your electronics projects with Panasonic capacitors in the EnvMart catalog.
