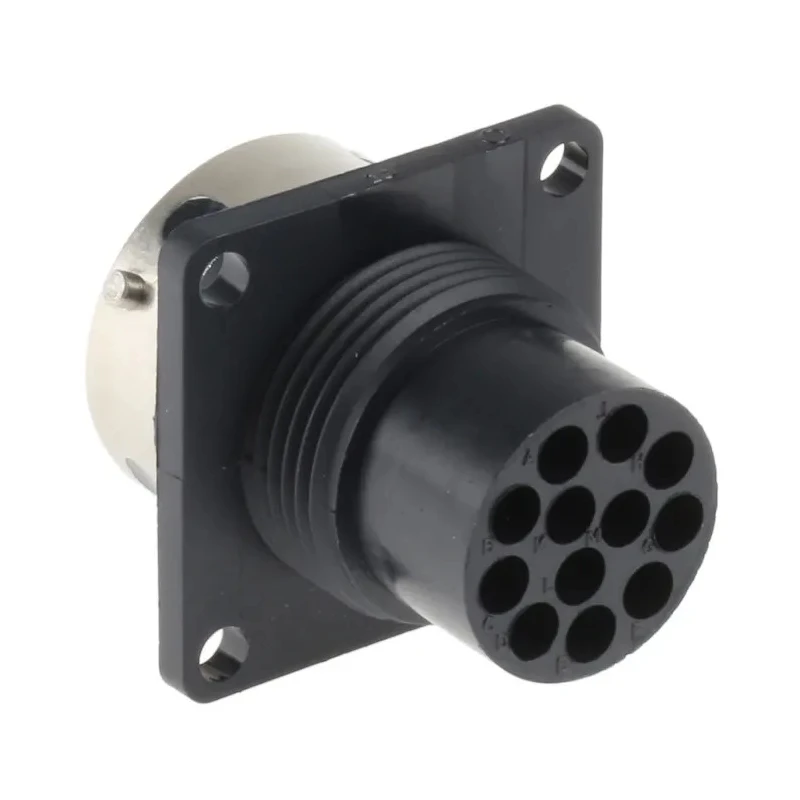

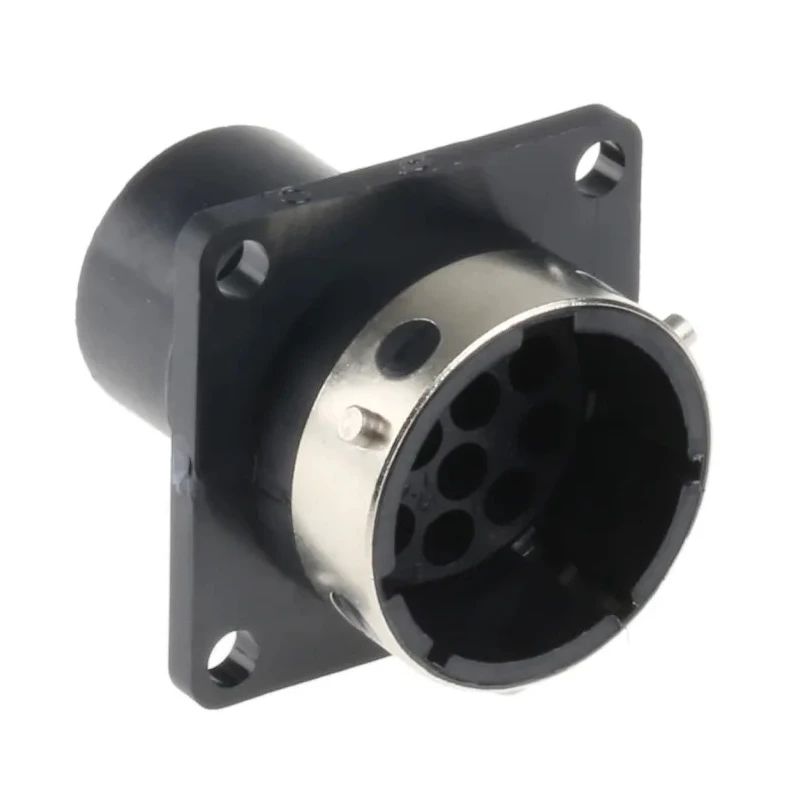

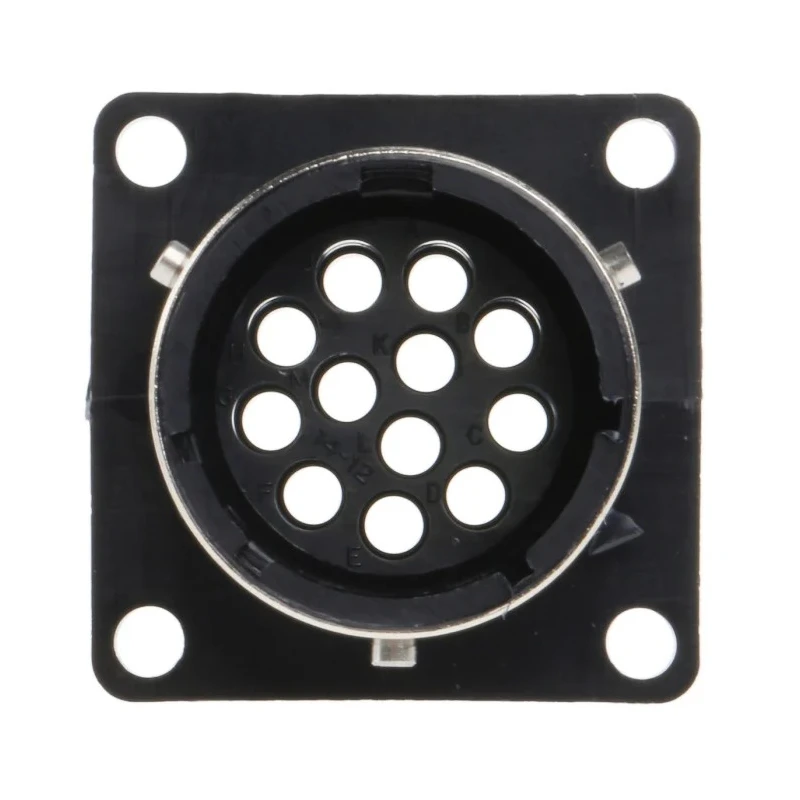

ITT Cannon Trident Ringlock Circular Connector 12 Contacts Panel Mount Socket Male IP65 Polymer TR1412RMS1NB / 192926-0460

The ITT Cannon TR1412RMS1NB / 192926-0460 Circular Connector is a high-quality industrial connector from the Trident Ringlock series, designed to provide uncompromising electrical connections in harsh and demanding environments. Featuring 12 male crimp contacts and a panel mount configuration, this connector is suited for applications requiring reliability and easy installation.

With a current rating of 16A and voltage up to 250V, this connector delivers robust power interfacing for industrial electronics, automation, and machine building. Its bayonet locking system delivers positive engagement and rapid connection or disconnection, ensuring secure electrical contacts even under vibration and shock.

The housing is crafted from black polymer (nylon UL94 V-0), offering excellent resistance to thermal and physical stresses. Nickel-plated copper alloy contacts ensure optimal electrical conductivity and durability. The connector achieves IP65 ingress protection when mated, providing reliable sealing against dust, debris, and water - vital for environments exposed to moisture and contaminants.

Operating within a wide temperature range of -55°C to 105°C, the connector fits demanding setups in machine building, process control, printing equipment, industrial robotics, and instrumentation. Its shell size of 14 mm and straight orientation match standard connector size criteria, simplifying compatibility in panel installations.

Trident Ringlock connectors are specifically designed to accept interchangeable crimp contacts and offer rapid field repairs, minimizing downtime. The shell-to-shell keying and bayonet system further enhance safety and operational reliability. The panel shell allows mating with cable mount connectors, providing versatile configurations for industrial automation.

Common use cases include robust connections in industrial electronics, robotic systems, instrumentation platforms, and manufacturing machinery. The connector's ability to withstand up to 500 mating cycles and provide UL94 V-0 flammability performance highlights its suitability for punishing conditions.

Equipped with 12 male crimp contacts and a panel mount design. Rated for 16A current and 250V voltage, providing reliable power interface. Bayonet locking mechanism ensures secure mating and quick disconnection. Constructed with polymer housing and nickel-plated copper alloy contacts for durability.

IP65 ingress protection for resistance against dust and water when properly mated. Operating temperature range from -55°C to 105°C supports demanding industrial use. Shell size of 14 mm and straight orientation fits standard connector size criteria.

Trident Ringlock series provides resistance to vibration, shock, and harsh environments. Explore more industrial connectors and the ITT Cannon brand in the Electronics & Electricals category at EnvMart.
