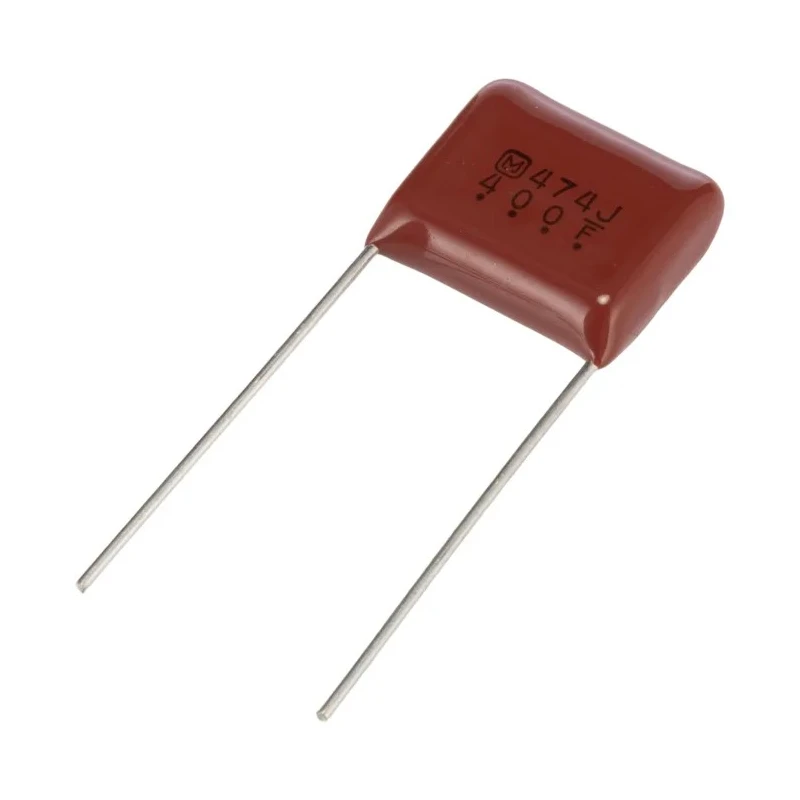

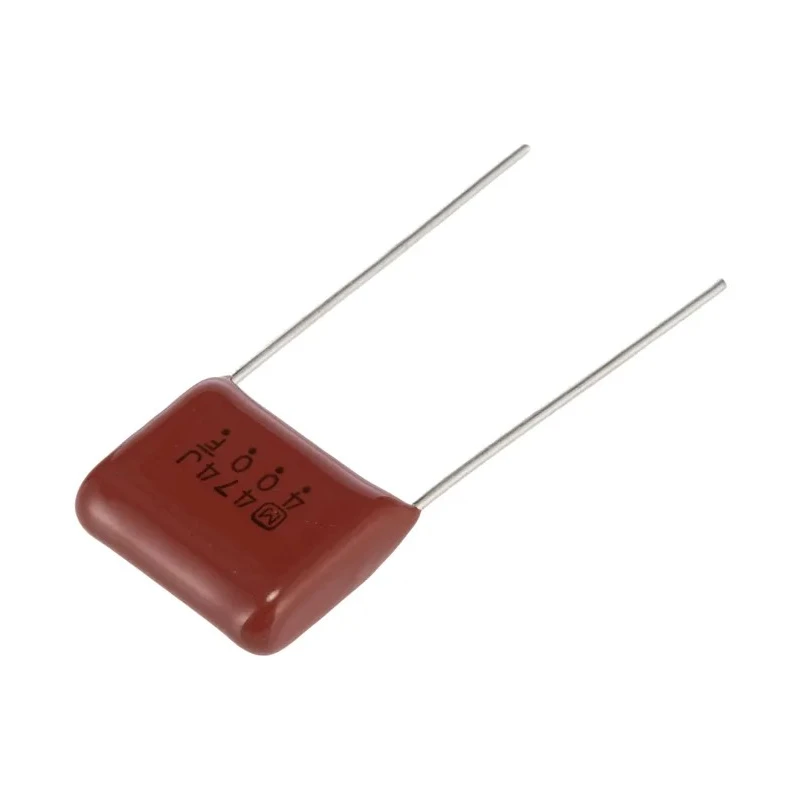

Panasonic ECQE(F) Film Capacitor 470 nF 400V AC 400V DC Through Hole 2 Pin ECQE4474JF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 17mm |
| Length | 18.5mm |
| Model | ECQE4474JF |
| Width | 7.8mm |
| Mount Type | Through Hole |
| Series | ECQE(F) |
| Maximum Operating Temperature | 105°C |
| Capacitance | 470nF |
| Pin Count | 2 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 400V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Capacitance of 470 nF with ±5% tolerance ensures accurate filtering and timing.
- Rated for 400V AC and 400V DC providing versatile voltage handling.
- Through-hole mount type with 15mm lead pitch for robust PCB installation.
- Constructed with polyester film and metallised for durability and self-healing properties.
- Flame-retardant epoxy coating enhances safety in electrical environments.
- Maximum operating temperature of 105°C for use in a wide range of conditions.
- Compliance with RoHS and automotive standard AEC-Q200 guarantees quality and environmental safety.
- Compact dimensions of 7.8mm width, 17mm height, and 18.5mm length fit tight PCB layouts.
Product Description
Panasonic ECQE4474JF is a high-performance film capacitor designed for stable electrical characteristics in automation, power supply, and communication applications. Featuring a capacitance of 470 nF and rated voltage of 400V AC and 400V DC, it supports reliable operation in demanding environments. The through-hole mount with two pins and 15mm lead pitch enables secure and durable PCB connections.
Manufactured with self-healing polyester film and metallised electrodes, this capacitor offers enhanced longevity by recovering from minor dielectric faults. The flame-retardant epoxy coating minimizes fire hazards, making it suitable for industrial and commercial electronic circuits requiring high safety standards.
Its maximum operating temperature of up to 105°C allows use in harsh temperature environments from -40°C upwards. The capacitor complies with international standards including CSA E60384-14, EN 60384-14, and UL 60384-14, and meets automotive-grade AEC-Q200 requirements.
Commonly used in power supply smoothing, timing, snubber circuits for motor drives, and audio/RF filtering, the ECQE4474JF film capacitor is essential for precise, reliable circuit performance.
Capacitance of 470 nF with ±5% tolerance. Voltage rating: 400V AC and 400V DC. Through-hole mounting with 2 pins and 15mm lead pitch. Self-healing polyester film construction for durability. Flame-retardant epoxy resin coating for safety.
Operating temperature range -40°C to +105°C. Complies with RoHS directive and automotive standard AEC-Q200.
This Film Capacitor is ideal for industrial automation, consumer electronics, and communication devices where reliable filtering and timing are critical. Explore similar Panasonic capacitors and electronic components in EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 470 nF with a tolerance of ±5%.
The maximum operating temperature for this capacitor is 105°C, allowing it to function in a wide range of conditions.
It is rated for both 400V AC and 400V DC, providing versatile voltage handling capabilities.
This unit has dimensions of 7.8mm in width, 17mm in height, and 18.5mm in length.
This model features a through-hole mounting type with a lead pitch of 15mm and a pin count of 2.
It is constructed with self-healing polyester film and metallised electrodes, and features a flame-retardant epoxy coating for added safety.
Yes, it complies with RoHS and automotive standard AEC-Q200, ensuring quality and environmental safety.
It is commonly used in power supply smoothing, timing, snubber circuits for motor drives, and audio/RF filtering.
The lead diameter for this capacitor is 0.8mm, suitable for standard PCB connections.
This capacitor is part of the ECQE(F) series, which is known for stable electrical characteristics.
The country of origin for this model is India.
The self-healing polyester film construction allows the capacitor to recover from minor dielectric faults, enhancing its longevity.
