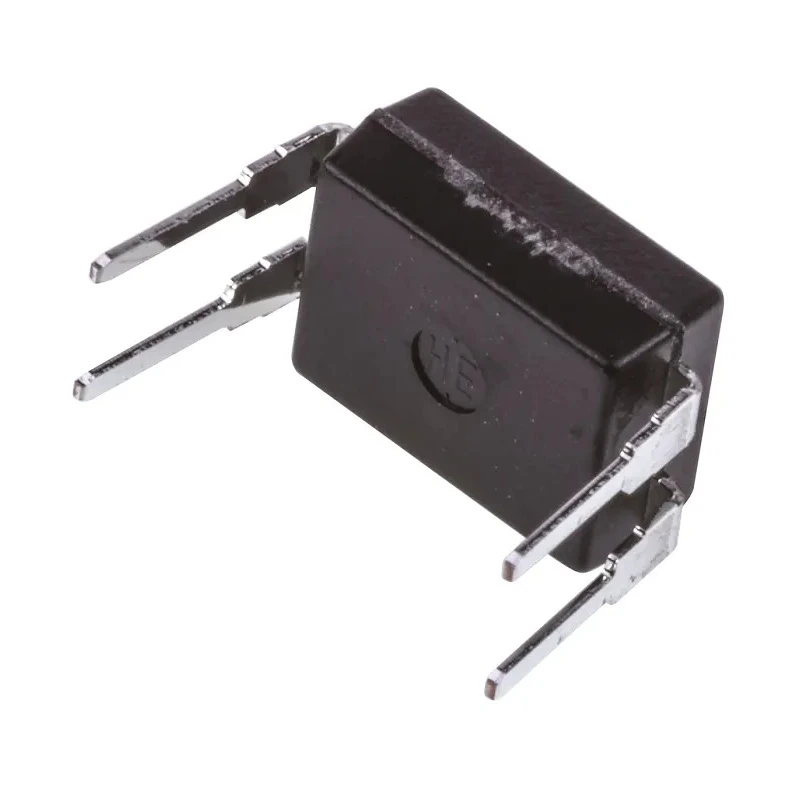

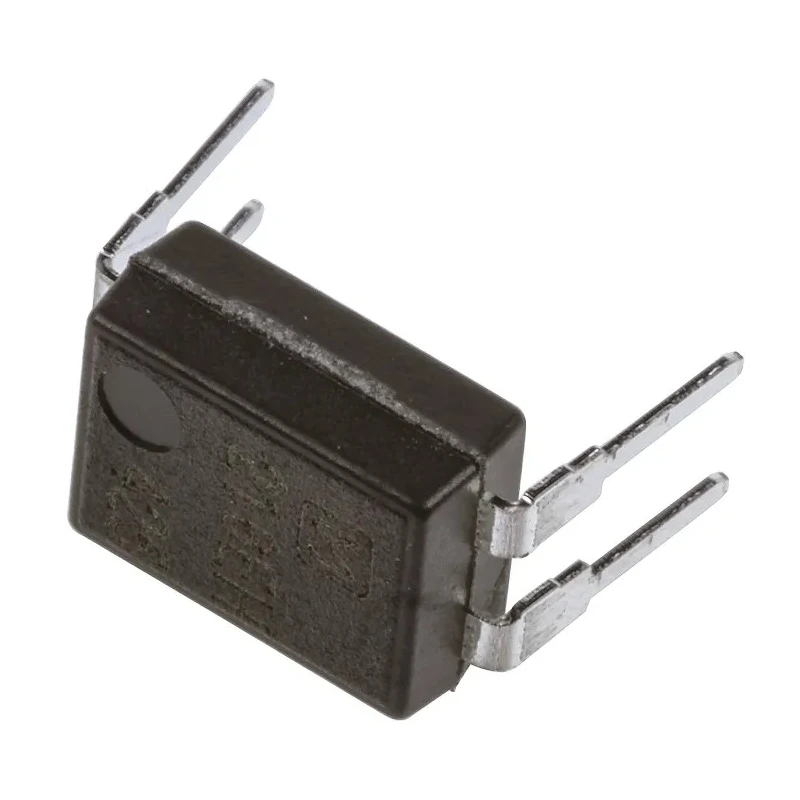

Toshiba PhotoMOS AQY Series Solid State Relay 50mA Load, PCB Mount, 600V Load, 1.5V Control AQY216EH

Free Delivery in India | Lowest Global Shipping Charges

Toshiba PhotoMOS AQY Series Solid State Relay 50mA Load, PCB Mount, 600V Load, 1.5V Control AQY216EH

Name: Toshiba PhotoMOS AQY Series Solid State Relay 50mA Load, PCB Mount, 600V Load, 1.5V Control AQY216EH
Brand: Toshiba
SKU: 214013
Price: 4.28 USD
Availability: InStock



Category Solid State Relay Brand Toshiba Condition New

Specifications

Country of Origin	Japan
Brand	Toshiba
Height	3.2mm
Length	4.8mm
Model	AQY216EH
Width	6.4mm
Mount Type	PCB
Output type	MOSFET
Series	PhotoMOS AQY
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Package Type	SOP-4
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Maximum Load Current	50mA
Standards/Approvals	cUL, RoHS, UL
Maximum Load Voltage	600V
Minimum Load Voltage	0V
Minimum Control Voltage	1.14V
Maximum Control Voltage	1.5V
Off State Leakage Current	1μA
On State Resistance	23.5Ω
Toshiba TLP220A AC Input Optocoupler, Through Hole, 4-Pin DIPBrand	Toshiba

Key Features

The relay features a low-level off-state leakage current with a maximum of 1 μA.
It uses MOSFET output technology, ensuring efficient and reliable switching.
Designed as a single-pole single-throw (SPST) contact configuration.
The package is a compact SOP-4 with dimensions of 4.8mm length, 6.4mm width, and 3.2mm height.
Operational temperature range is from -40°C to 85°C, supporting demanding industrial environments.
PCB mount type with through hole terminal style for secure installation.
On state resistance is low, rated at 23.5 ohms for energy efficiency.
Compliant with cUL, RoHS, and UL standards, ensuring quality and safety.

Product Description

Panasonic AQY216EH PhotoMOS AQY Series Solid State Relay is engineered to control low-level analog signals with maximum reliability. It supports a maximum load current of 50mA and a load voltage of up to 600V, suitable for precise switching applications in industrial and electronic equipment.

This solid state relay is designed for PCB mounting, using a through hole terminal configuration, making it easy to integrate into printed circuit boards for compact device designs.

The relay features a minimally invasive off-state leakage current of just 1 μA and a low on-state resistance of 23.5 ohms, delivering energy-efficient performance and minimal heat generation during operation. Its MOSFET output technology provides fast and quiet switching capabilities.

Encased in a SOP-4 package measuring 4.8mm in length, 6.4mm in width, and 3.2mm in height, the device is optimized for space-saving layouts. Operating temperature range from -40°C up to 85°C ensures stable performance in harsh industrial environments.

Compliance with leading safety and environmental standards such as cUL, RoHS, and UL confirms the product's quality, reliability, and environmental friendliness.

Typical applications include industrial automation systems, signal conditioning equipment, and precision control circuits requiring compact and efficient solid state switching solutions.

The relay features a low-level off-state leakage current with a maximum of 1 μA. It uses MOSFET output technology, ensuring efficient and reliable switching. Designed as a single-pole single-throw (SPST) contact configuration.

The package is a compact SOP-4 with dimensions of 4.8mm length, 6.4mm width, and 3.2mm height. Operational temperature range is from -40°C to 85°C, supporting demanding industrial environments. PCB mount type with through hole terminal style for secure installation.
