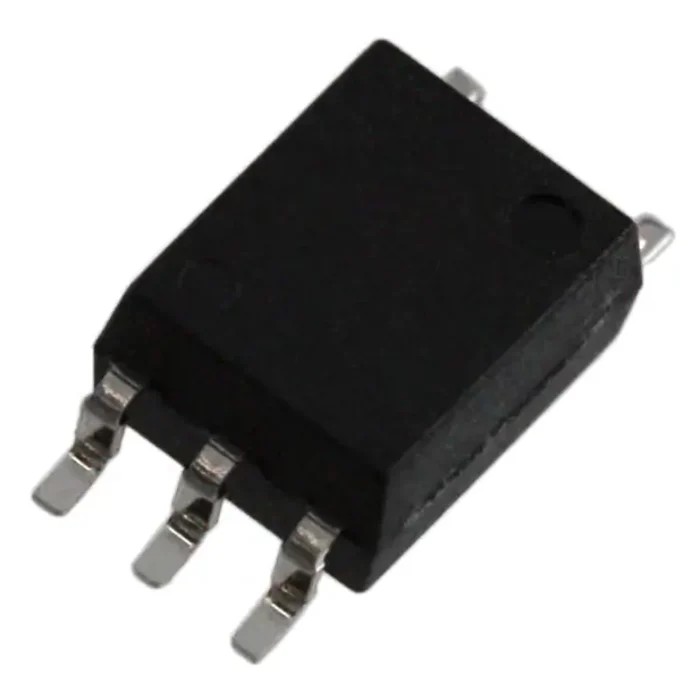

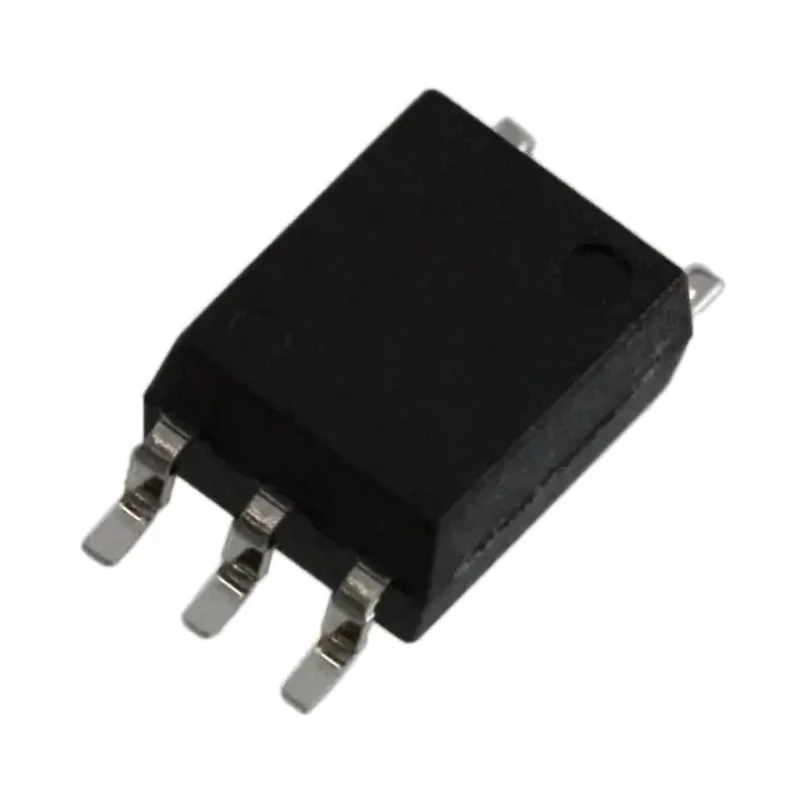

Toshiba Photocoupler Surface Mount SO 5-Pin, 1 Channel, 1.8V Forward Voltage, 20mA Input Current TLP152(TPL,E(T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Model | TLP152(TPL,E(T |
| Mount Type | Surface |
| Series | TLP |
| Maximum Operating Temperature | 100°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 20mA |
| Number Of Channels | 1 |
| Standards/Approvals | CSA, EN, UL |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 5 |
| Typical Rise Time | 18ns |
| Typical Fall Time | 22ns |
Key Features
- Features a gallium aluminum arsenide (GaAlAs) infrared LED.
- Includes an integrated high-gain, high-speed photodetector IC chip.
- Has a maximum forward voltage of 1.8 volts.
- Supports a maximum input current of 20 milliamps.
- Operates with a typical rise time of 18 nanoseconds and fall time of 22 nanoseconds.
- Functioning temperature range is from -40°C to 100°C.
- Offers high isolation voltage rated at 3750 Vrms.
- Meets CSA, EN, and UL standards.
Product Description
The Toshiba TLP152(TPL,E(T photocoupler is an advanced surface-mount optocoupler designed to provide reliable and high-speed optical isolation in electronic circuits. This device incorporates a gallium aluminum arsenide (GaAlAs) infrared light-emitting diode (LED) optically coupled with a high-gain, high-speed photodetector integrated circuit (IC) chip within a compact 5-pin small outline (SO) package.
Operating with a maximum forward voltage of 1.8 V and supporting an input current up to 20 mA, the TLP152 ensures efficient signal transmission while maintaining electrical isolation rated at 3750 Vrms. Its typical rise time of 18 ns and fall time of 22 ns enable high-speed switching applications.
Engineered for industrial environments, this photocoupler can operate over a wide temperature range from -40°C to 100°C, making it suitable for demanding applications such as industrial inverters, MOSFET gate drivers, and IGBT totem pole output stages. The compact surface-mount SO package facilitates easy assembly on printed circuit boards, enhancing design flexibility.
Gallium aluminum arsenide infrared LED for efficient optical signal transmission. Integrated high-speed photodetector IC chip with high gain. Maximum forward voltage of 1.8 V ensures low power consumption. Maximum input current rating of 20 mA supports effective LED driving.
Typical rise and fall times of 18 ns and 22 ns enable high-speed switching. Isolation voltage of 3750 Vrms provides robust electrical isolation. Wide operating temperature range from -40°C to 100°C ensures reliability. Certified to CSA, EN, and UL standards for safety and quality assurance.
Ideal for use in industrial inverters and MOSFET gate driver circuits.
This Toshiba TLP152 series photocoupler is an essential component for engineers and designers requiring dependable optical isolation in power electronics, industrial automation, and related fields. Its performance and compact footprint support modern electronic design challenges.
Explore the comprehensive range of Toshiba Optocouplers and related electronic components available at EnvMart to support your industrial and commercial applications effectively.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of the TLP152 is 1.8 volts.
It supports a maximum input current of 20 milliamps.
The typical rise time is 18 nanoseconds, and the fall time is 22 nanoseconds.
The operating temperature range is from -40°C to 100°C.
It comes in a compact 5-pin small outline (SO) package.
It offers a high isolation voltage rated at 3750 Vrms.
This model meets CSA, EN, and UL standards.
It has 1 channel.
The country of origin is India.
It features a gallium aluminum arsenide (GaAlAs) infrared LED.
It is suitable for applications such as industrial inverters and MOSFET gate drivers.
The brand is Toshiba.
