| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 3.15mm |
| Model | NCP114ASN120T1G |
| Width | 1.65mm |
| Mount Type | Surface |
| Series | NCP114 |
| Maximum Operating Temperature | 150°C |
| Package Type | TSOP |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 95μA |
| Minimum Input Voltage | 1.7V |
| Pin Count | 5 |

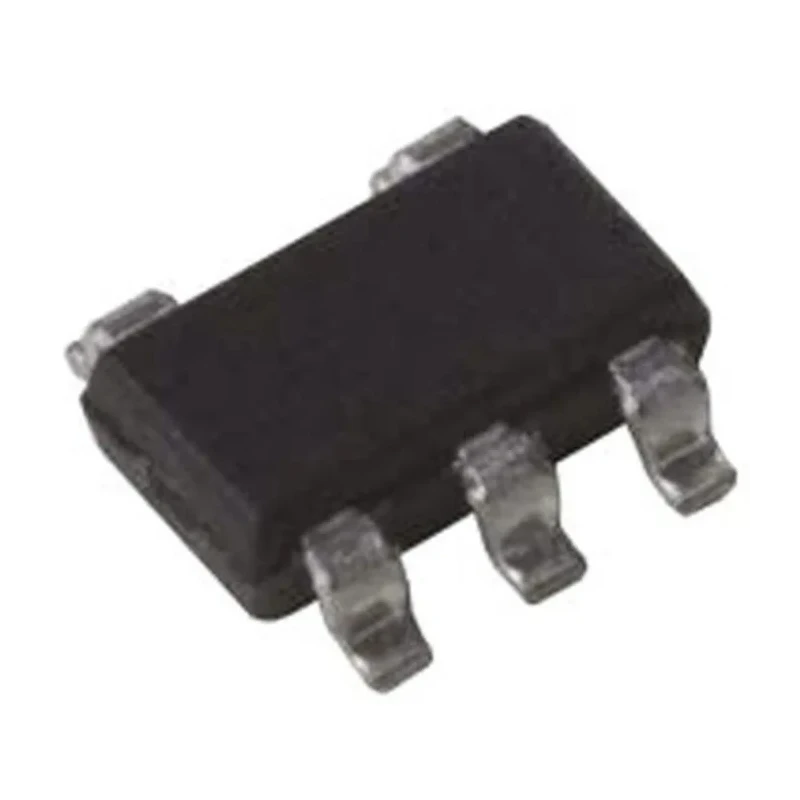

onsemi NCP114ASN120T1G is a low dropout (LDO) linear voltage regulator designed to provide efficient and stable voltage regulation in a small TSOP 5-pin surface-mount package. Operating over a wide input voltage range from 1.7V up to a maximum of 5.5V, it supports output currents typically between 250mA and 300mA, making it ideal for various power management applications.
This device features a low quiescent current of 95μA, ensuring minimal power loss and heat dissipation during operation. The robust design supports a maximum operating temperature up to 150°C, which guarantees reliable performance under demanding environmental conditions. With positive polarity and a compact footprint of 3.15mm length, 1.65mm width, and 1mm height, this regulator is suitable for integrated circuits in electronic equipment where space optimization and thermal handling are critical.
The NCP114ASN120T1G voltage regulator is part of onsemi's NCP114 series and complies with standard semiconductor quality levels though it carries no special automotive or other certifications. It is intended for use in electronic components, power and connectors, and semiconductor sectors where precision voltage control is required.
Low dropout voltage for efficient voltage regulation. Wide input voltage range from 1.7V to 5.5V. 95μA low quiescent current for power saving. Compact TSOP 5-pin surface-mount package dimensions. Maximum operating temperature of 150°C for enhanced durability.
Positive polarity suited for a range of electronic designs. Reliable operation in industrial, electronics, and power management applications.
This component supports engineers and designers in creating reliable power supply sections within embedded systems, consumer electronics, and industrial controls. It is ideal for use in voltage regulation, power management ICs, and low noise power supply systems.
