ams OSRAM Infrared, Visible Light Photodiode, 60° Angle of Half Sensitivity, Surface Mount, 5.09x4x0.85 mm SFH 2240

Free Delivery in India | Lowest Global Shipping Charges

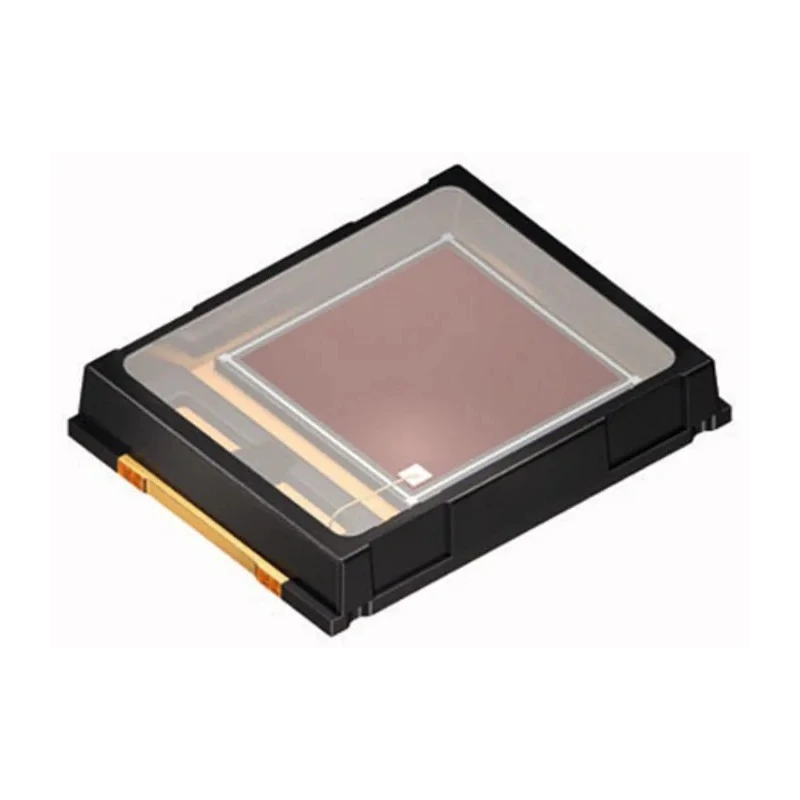

ams OSRAM Infrared, Visible Light Photodiode, 60° Angle of Half Sensitivity, Surface Mount, 5.09x4x0.85 mm SFH 2240

Name: ams OSRAM Infrared, Visible Light Photodiode, 60° Angle of Half Sensitivity, Surface Mount, 5.09x4x0.85 mm SFH 2240
Brand: ams OSRAM
SKU: 198918



Category Photodiode Brand ams OSRAM Condition New

Specifications

Country of Origin	Malaysia
Brand	ams OSRAM
Height	0.85mm
Length	5.09mm
Model	SFH 2240
Packaging	Tape & Reel
Width	4mm
Mount Type	Surface
Series	SFH
Short Circuit Current	7.3μA
Maximum Operating Temperature	85°C
Package Type	Top LED
Minimum Operating Temperature	-40°C
Polarity	Forward
Dark Current	5nA
Open Circuit Voltage	350mV
Standards/Approvals	RoHS
Number of Pins	2
Typical Fall Time	0.09μs
Wavelength of Peak Sensitivity	620nm
Spectrums Detected	Infrared, Visible Light
Breakdown Voltage	20V
Minimum Wavelength Detected	400nm
Maximum Wavelength Detected	690nm
Angle of Half Sensitivity	60 °

Key Features

The photodiode detects wavelengths from 400nm to 690nm with a peak sensitivity at 620nm.
It features a fast typical rise and fall time of 0.09 microseconds, ensuring rapid response.
The device has a compact size with dimensions 5.09mm length, 4mm width, and 0.85mm height.
Operates reliably in a temperature range from -40°C to 85°C.
Includes 2 pins for mounting and electrical connection.
Provides a short circuit current of 7.3 microamperes and an open circuit voltage of 350 millivolts.
Low dark current of 5 nanoamperes enhances signal accuracy.
It is RoHS compliant and manufactured in Malaysia, meeting standard electronic component requirements.

Product Description

The ams OSRAM SFH 2240 photodiode is a silicon PIN photodiode designed to detect infrared and visible light spectrums over a wavelength range of 400nm to 690nm, with the peak sensitivity at 620nm. Featuring a 60° angle of half sensitivity and a surface mount package type, this device ensures high linearity and fast switching times with typical rise and fall times of 0.09 microseconds.

Measuring 5.09mm in length, 4mm in width, and 0.85mm in height, the SFH 2240 is well-suited for compact applications requiring reliable photodetection. It operates effectively in a temperature range from -40°C to +85°C, making it robust for varied industrial and commercial environments.

This photodiode has a short circuit current of 7.3μA, an open circuit voltage of 350mV, and a minimal dark current of 5nA, optimizing its sensitivity and precision. It includes 2 pins for surface mounting and utilizes a forward polarity connection. The component complies with RoHS standards and is manufactured in Malaysia.

The SFH 2240 photodiode is ideal for applications in bio-monitoring, ambient light sensing, mobile phone light regulation, and air conditioning system control. Its low temperature coefficient and high linearity enable precise ambient light measurements, crucial for advanced electronics and industrial automation.

Detects infrared and visible light wavelengths ranging from 400nm to 690nm. Packaged as a surface mount Top LED photodiode with 2 pins. Fast response times with typical rise and fall times of 0.09 microseconds. Wide operating temperature range from -40°C to 85°C for diverse environment use.

RoHS compliance ensures environmentally friendly manufacturing standards. Compact dimensions: 5.09 mm length, 4 mm width, and 0.85 mm height. Low dark current of 5nA improves signal detection stability. Manufactured in Malaysia ensuring quality control and origin traceability.

Suitable for applications in bio-monitoring, mobile devices, and HVAC system control. Explore more products in the Photodiode category on EnvMart for industrial and electronics component solutions.
