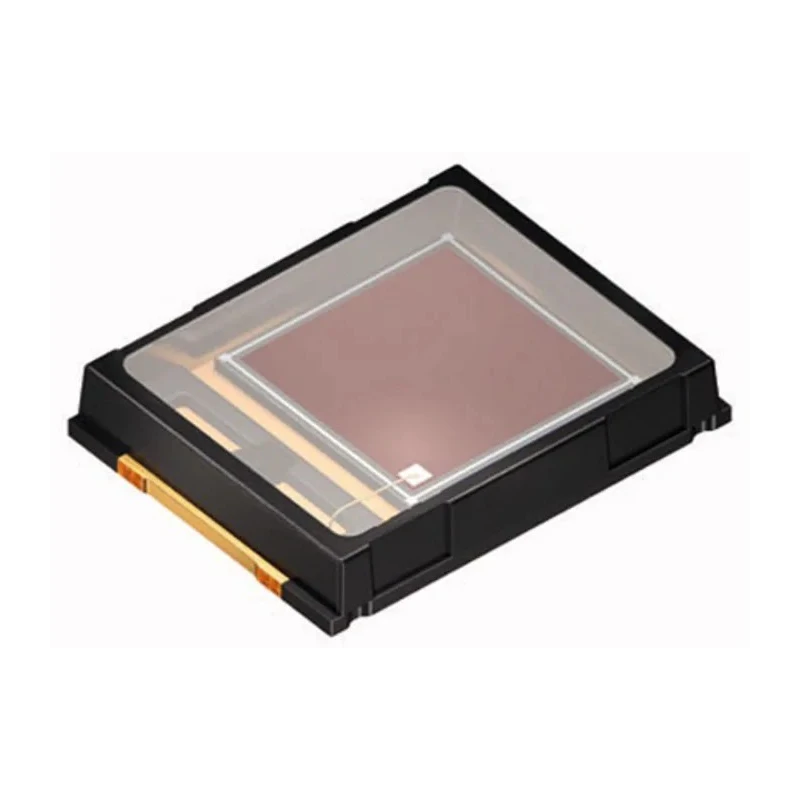

ams OSRAM Infrared Visible Light Photodiode, Surface Mount, Top LED, 60° Angle, 400-690nm SFH 2240
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | ams OSRAM |
| Height | 0.85mm |
| Length | 5.09mm |
| Model | SFH 2240 |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Surface |
| Series | SFH |
| Short Circuit Current | 7.3μA |
| Maximum Operating Temperature | 85°C |
| Package Type | Top LED |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Dark Current | 5nA |
| Open Circuit Voltage | 350mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 0.09μs |
| Wavelength of Peak Sensitivity | 620nm |
| Spectrums Detected | Infrared, Visible Light |
| Breakdown Voltage | 20V |
| Minimum Wavelength Detected | 400nm |
| Maximum Wavelength Detected | 690nm |
| Angle of Half Sensitivity | 60 ° |
Key Features
- The photodiode detects spectrums from 400nm to 690nm, with a peak sensitivity at 620nm.
- It features a top LED package and comes in tape and reel packaging for efficient assembly.
- The device operates between -40°C and 85°C, ensuring robust performance in various environments.
- It has a fast response with typical rise and fall times of 0.09μs.
- The photodiode exhibits a short circuit current of 7.3μA and a low dark current of 5nA.
- Breakdown voltage is rated at 20V, with an open circuit voltage of 350mV and forward polarity.
- The compact device measures 5.09mm in length, 4mm in width, and 0.85mm in height.
- This RoHS-compliant photodiode is suitable for bio-monitoring, ambient light sensing, and air conditioning system regulation.
Product Description
ams OSRAM SFH 2240 is a silicon PIN photodiode designed for detecting infrared and visible light across a wavelength range of 400nm to 690nm, with a peak sensitivity at 620nm. Featuring a surface mount package type with top LED configuration and a 60° angle of half sensitivity, this device offers high linearity and fast switching capabilities, characterized by typical rise and fall times of 0.09μs.
The photodiode operates reliably in temperatures from -40°C to 85°C, making it suitable for demanding industrial and commercial applications, including bio-monitoring, ambient light sensing in mobile phones, and air conditioning system regulation. With a short circuit current of 7.3μA, a low dark current of 5nA, and a breakdown voltage of 20V, the SFH 2240 delivers stable performance and sensitivity adapted to human eye response.
This RoHS-compliant component is packed in tape and reel format, facilitating automated insertion and improved production efficiency. Its compact physical dimensions of 5.09mm length, 4mm width, and 0.85mm height enable integration into space-constrained electronic assemblies.
Manufactured in Malaysia by ams OSRAM, this photodiode meets industrial standards and is an excellent solution for electronic components requiring sensitive and fast photodetection. Applications range across industrial, laboratory, telecommunications, and consumer electronics sectors.
Detects infrared and visible light spectra from 400nm to 690nm with peak sensitivity at 620nm. Top LED package with surface mount for easy PCB integration. Operating temperature range between -40°C and 85°C ensures broad environmental suitability.
Fast response times of 0.09μs rise and fall for high-speed applications. Low dark current and stable forward polarity enhance accuracy and reliability. Compact dimensions support installation in small form-factor devices.
Supplied on tape and reel packaging for efficient automated production processes. RoHS compliant and complies with relevant industrial standards. Ideal for bio monitoring, ambient light sensing, mobile phones, and HVAC system regulation.
Explore more products from ams OSRAM and other Photodiode components in our Electronics Components category to meet your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It detects wavelengths from 400nm to 690nm, with peak sensitivity at 620nm.
The typical rise and fall times are both 0.09μs, allowing for fast response in applications.
It operates reliably between -40°C and 85°C, making it suitable for various environments.
This model is supplied in tape and reel packaging, which facilitates automated assembly processes.
The photodiode exhibits a low dark current of 5nA, enhancing its accuracy and reliability.
The breakdown voltage is rated at 20V, ensuring stable performance under specified conditions.
It measures 5.09mm in length, 4mm in width, and 0.85mm in height, making it compact for integration.
The short circuit current is rated at 7.3μA, which is typical for this type of photodiode.
It features a surface mount design, suitable for easy integration into printed circuit boards.
It is suitable for applications such as bio-monitoring, ambient light sensing, and HVAC system regulation.
This model is RoHS compliant, ensuring it meets environmental safety standards.
It has 2 pins, which is typical for surface mount photodiodes.
