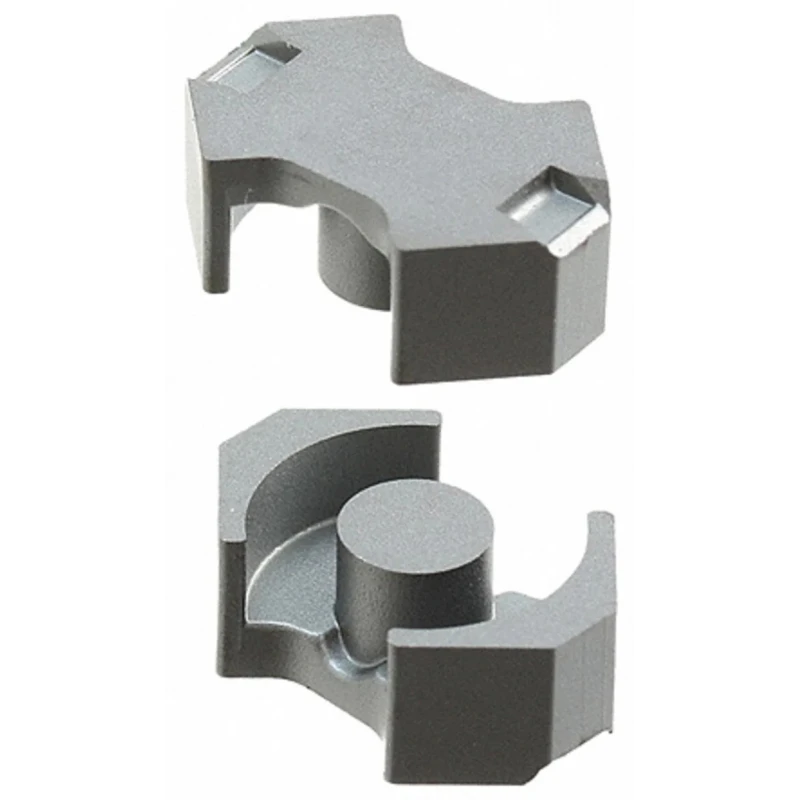

TDK Transformer Ferrite Core RM 5, T38 Material, 6700 nH AL Rating, 14.6x12.3x10.5 mm, Maximum Operating B65805J0000Y038
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TDK |
| Material | T38 |
| Length | 14.6mm |
| Model | B65805J0000Y038 |
| Depth | 10.5mm |
| Width | 12.3mm |
| Series | B65805 |
| Maximum Operating Temperature | 155°C |
| For Use With | Broadband TransFormers |
| Standards/Approvals | IEC 62317-4 |
| Core Size | RM 5 |
| AL Rating | 6700nH |
Key Features
- This ferrite core measures 14.6 mm in length, 12.3 mm in width, and 10.5 mm in depth.
- It withstands a maximum operating temperature of 155°C for reliable performance.
- Core size RM 5 ensures compatibility with various electronic components and power applications.
- The product complies with IEC 62317-4 standards ensuring quality and safety.
- Manufactured in the Czech Republic to maintain high manufacturing standards.
- Ideal for use in low loss, highly stable filter inductors and low distortion broadband transmission.
- Absence of a center hole improves performance in resonance determining inductors.
Product Description
TDK B65805J0000Y038 Transformer Ferrite Core RM 5 offers a highly efficient solution for broadband transformers and filter inductors requiring low loss and high stability. Manufactured using T38 magnetic material, this ferrite core provides an AL rating of 6700 nH, enabling precise inductance characteristics.
Measuring 14.6 mm in length, 12.3 mm in width, and 10.5 mm in depth, the core is engineered to operate reliably up to a maximum temperature of 155°C. It complies with IEC 62317-4 standards, underscoring its suitability for industrial and electronic applications.
The ferrite core is optimized for applications such as low distortion broadband transmission and resonance determining inductors within power electronics and signal processing fields. Its RM 5 core size and absence of a center hole enhance performance and reduce distortion.
Produced in the Czech Republic, the product meets stringent manufacturing criteria, making it appropriate for use in electronic manufacturing, laboratory testing, communication equipment, and industrial power supplies.
This core is designed to provide low loss and highly stable performance. Its T38 material ensures magnetic consistency and thermal tolerance. Complies with international IEC 62317-4 standards for transformer cores. Suitable for broadband transformers, filter inductors, and resonance inductors.
Compact dimensions fit diverse electronic assemblies. Manufactured to high-quality standards in the Czech Republic. Ideal for applications requiring minimal signal distortion. Explore the range of TDK Transformer Cores at EnvMart for comprehensive solutions in electronic component design and power transformer assembly.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ferrite core measures 14.6 mm in length, 12.3 mm in width, and 10.5 mm in depth.
It can operate reliably at a maximum temperature of 155°C.
The AL rating for this ferrite core is 6700 nH, which indicates its inductance characteristics.
This model is manufactured using T38 magnetic material, which ensures magnetic consistency and thermal tolerance.
It complies with IEC 62317-4 standards, ensuring quality and safety in its applications.
It is optimized for use in broadband transformers, filter inductors, and resonance determining inductors within power electronics and signal processing fields.
The core size of this ferrite core is RM 5, which ensures compatibility with various electronic components and power applications.
No, this ferrite core does not have a center hole, which enhances performance in resonance determining inductors.
It is manufactured in the Czech Republic, adhering to high manufacturing standards.
It is designed for applications requiring low loss and high stability, making it ideal for low distortion broadband transmission.
This ferrite core is specifically for use with broadband transformers, enhancing their performance.
Key features include its compact dimensions, T38 material, AL rating of 6700 nH, and compliance with IEC 62317-4 standards.
