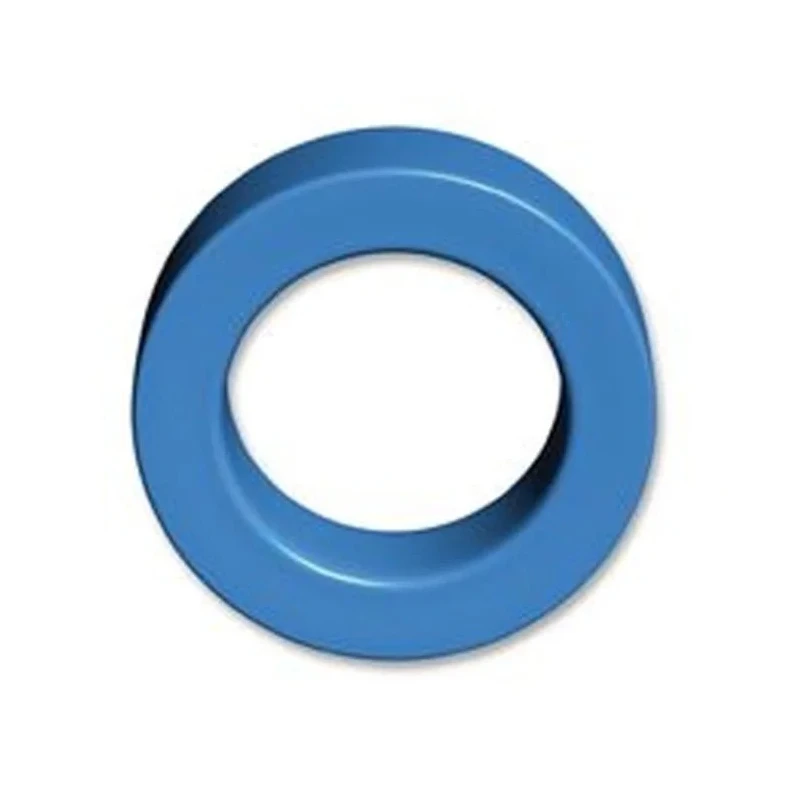

TDK Ferrite Ring Toroid Core 16.5 mm Height N87 Material 63.7 mm ID 104.8 mm OD B64290L0084X087

Free Delivery in India | Lowest Global Shipping Charges

TDK Ferrite Ring Toroid Core 16.5 mm Height N87 Material 63.7 mm ID 104.8 mm OD B64290L0084X087



Category Passive Components Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Material	N87
Height	16.5mm
Model	B64290L0084X087
Outside diameter	104.8mm
Sub Type	Toroid Core
Inside Diameter	63.7mm
Standards/Approvals	RoHS
TDK Ferrite Ring Toroid Core 16.5 mm, For	General Electronics, Emc Component, Automotive Electronics 63.7 mm ID 104.8

Key Features

Manufactured from N87 material for reliable magnetic performance.
Ideal for use in chokes, baluns, pulse transformers, and broadband transformers.
Coated with polyamide or epoxy resin providing insulation and edge protection.
Compliant with RoHS standards ensuring environmental safety.
Suitable for general electronics, EMC components, and automotive electronics applications.
Toroid core shape optimizes magnetic flux and reduces electromagnetic interference.

Product Description

TDK B64290L0084X087 Ferrite Ring Toroid Core is a high-quality component engineered for versatile use in general electronics, electromagnetic compatibility (EMC) components, and automotive electronic systems. The core features a toroidal shape with an outer diameter of 104.8 mm and an inside diameter of 63.7 mm, paired with a height of 16.5 mm providing a compact yet effective magnetic core.

The ferrite material used, N87, ensures excellent magnetic properties suitable for various industrial applications. The core is coated with polyamide or epoxy resin. This coating not only offers robust insulation but also provides mechanical protection for the edges of the core, enhancing durability and handling safety during manufacturing and installation.

These toroid cores are commonly utilized in choke coils, baluns, pulse transformers, and broadband transformers where controlling electromagnetic interference and improving signal integrity is critical. Their design facilitates effective magnetic flux management while reducing losses and EMI emissions.

Conforming to RoHS standards, the product guarantees compliance with environmental regulations limiting hazardous substances, making it an eco-friendly choice for modern electronics manufacturing.

The TDK ferrite ring core caters to demanding industrial sectors including automotive electronics, general electronics manufacturing, and EMC components where reliability and performance are paramount.

Manufactured using N87 ferrite material ensuring consistent magnetic performance. Polyamide or epoxy resin coating provides electrical insulation and edge protection. Appropriate for a range of applications including chokes, baluns, and transformers.

Dimensions optimized for effective magnetic flux and compact design. Meets RoHS environmental and safety regulations. Designed and produced by TDK, a leader in electronic components. Explore more electronic passive component options in the EnvMart catalog to find compatible parts for your industrial and commercial electronics projects.
