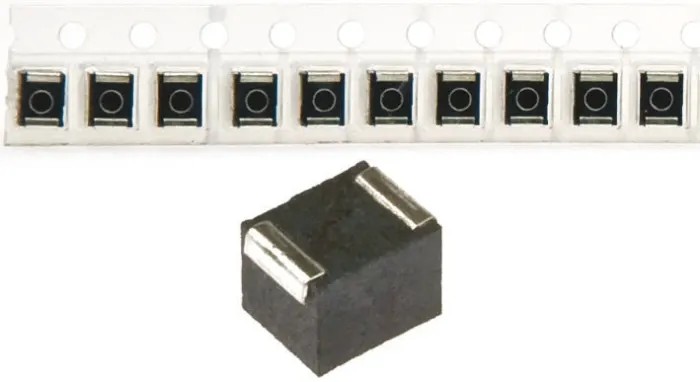

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±5 % 40 mA Idc Q20 NLV32T-101J-PF

Free Delivery in India | Lowest Global Shipping Charges

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±5 % 40 mA Idc Q20 NLV32T-101J-PF



Category Surface Mount Inductors Brand TDK Condition New

Specifications

Country of Origin	Japan
Brand	TDK
Height	2.2mm
Length	3.2mm
Model	NLV32T-101J-PF
Depth	2.5mm
Series	NLV-PF
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	100μH
Standards/Approvals	RoHS
Package/Case	1210
Maximum DC Current	40mA
Pin Count	2
Maximum DC Resistance	10Ω
Inductance Tolerance	±5 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	10MHz
Minimum Quality Factor	20
Inductor Construction	Wirewound
Applications include	TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc

Key Features

Features a ferrite core for enhanced magnetic properties.
Constructed with high-quality wirewound technology for stable inductance.

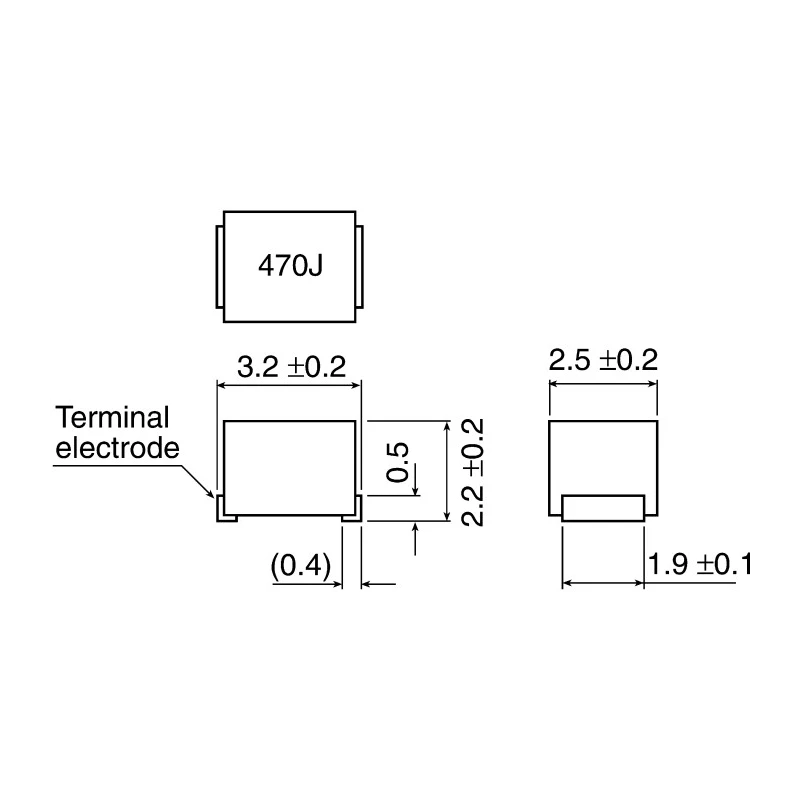

Package size is 1210 with dimensions 3.2mm length, 2.5mm depth, and 2.2mm height.
Designed for operation between -40°C to +105°C for reliability in various environments.
Provides a minimum quality factor (Q) of 20 and a maximum self-resonant frequency of 10 MHz.
RoHS compliant and moulded with a thermoplastic resin exterior for durability.
Suitable for surface mount terminations with 2 pins for easy PCB installation.
Applications include TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, and more.

Product Description

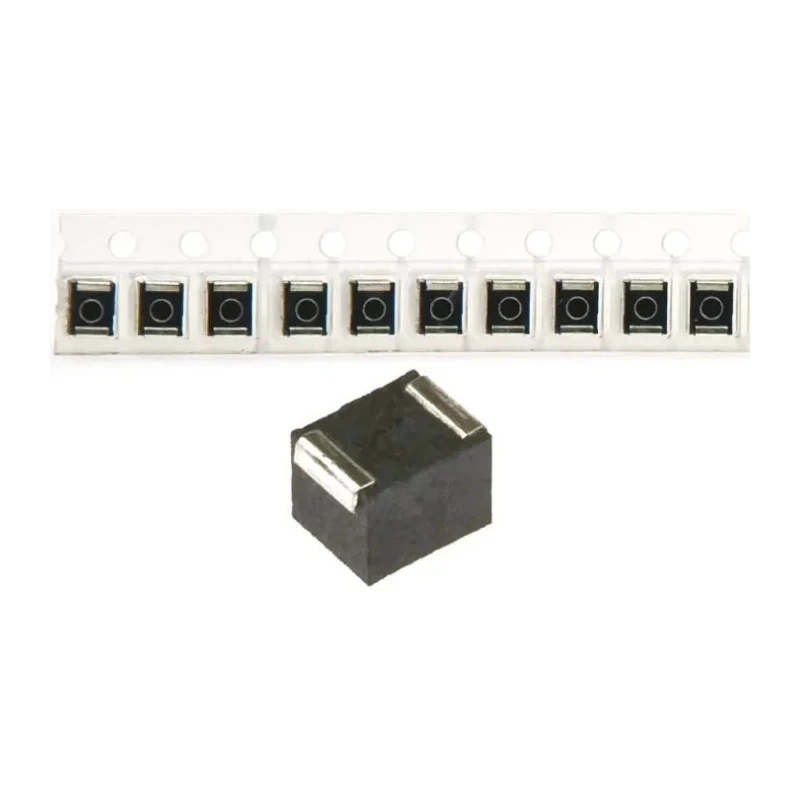

TDK NLV32T-101J-PF is a 1210 size shielded wirewound surface mount inductor featuring a ferrite core, providing 100 μH inductance with a ±5 % tolerance and a maximum DC current rating of 40 mA. This inductor is designed with high-quality wirewound construction ensuring high performance and stability across a range of operating conditions.

Its compact 1210 package, measuring 3.2mm in length, 2.5mm in depth, and 2.2mm in height, makes it ideal for dense PCB layouts. The thermoplastic resin moulding provides excellent heat resistance, supporting operation from -40°C to +105°C. The device offers a minimum quality factor (Q) of 20 and can handle frequencies up to 10 MHz with minimal signal loss, thanks to its shielded ferrite core.

Termination is by surface mount style with 2 pins, facilitating efficient assembly in automated manufacturing processes. The inductor complies with RoHS standards, reflecting its environmental safety and regulatory compliance. It is well-suited for multiple industrial and commercial applications including televisions, video cassette recorders (VCRs), digital cameras, xDSL modems, car audio systems, electronic control units (ECUs), and hard disk drives (HDDs), where precise signal conditioning is essential.

Features a ferrite core for enhanced magnetic properties. Constructed with high-quality wirewound technology for stable inductance. Package size is 1210 with dimensions 3.2mm length, 2.5mm depth, and 2.2mm height. Designed for operation between -40°C to +105°C for reliability in various environments.

Provides a minimum quality factor (Q) of 20 and a maximum self-resonant frequency of 10 MHz. RoHS compliant and moulded with a thermoplastic resin exterior for durability. Suitable for surface mount terminations with 2 pins for easy PCB installation.

Applications include TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, and more.

This TDK NLV32T-101J-PF inductor is a reliable and versatile component widely used in electronic circuit design across various sectors such as consumer electronics, automotive electronics, telecommunications, and computer hardware manufacturing. Explore more high-quality components in the Surface Mount Inductors category on EnvMart.
