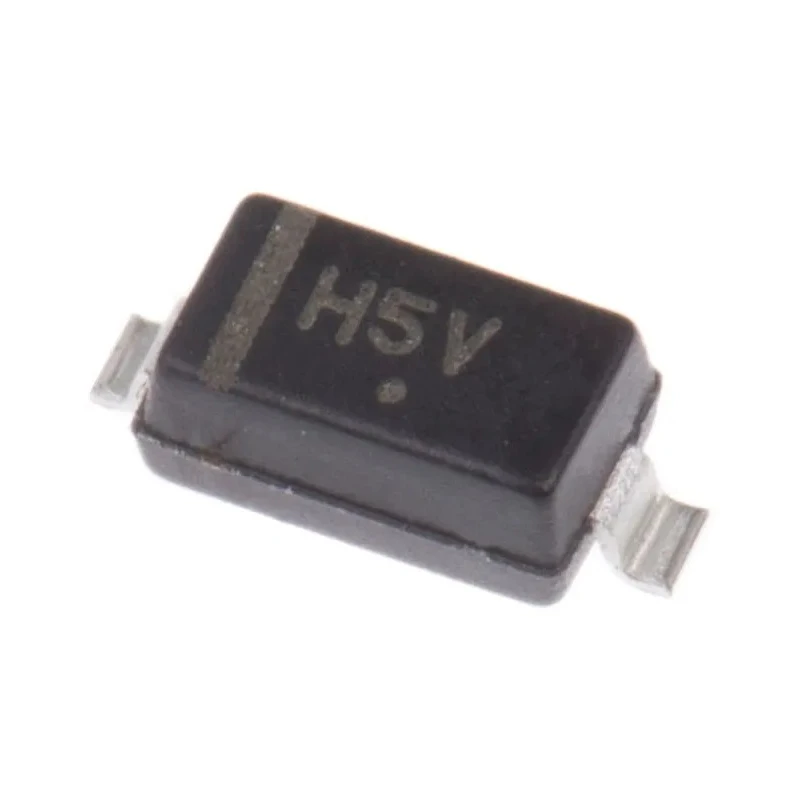

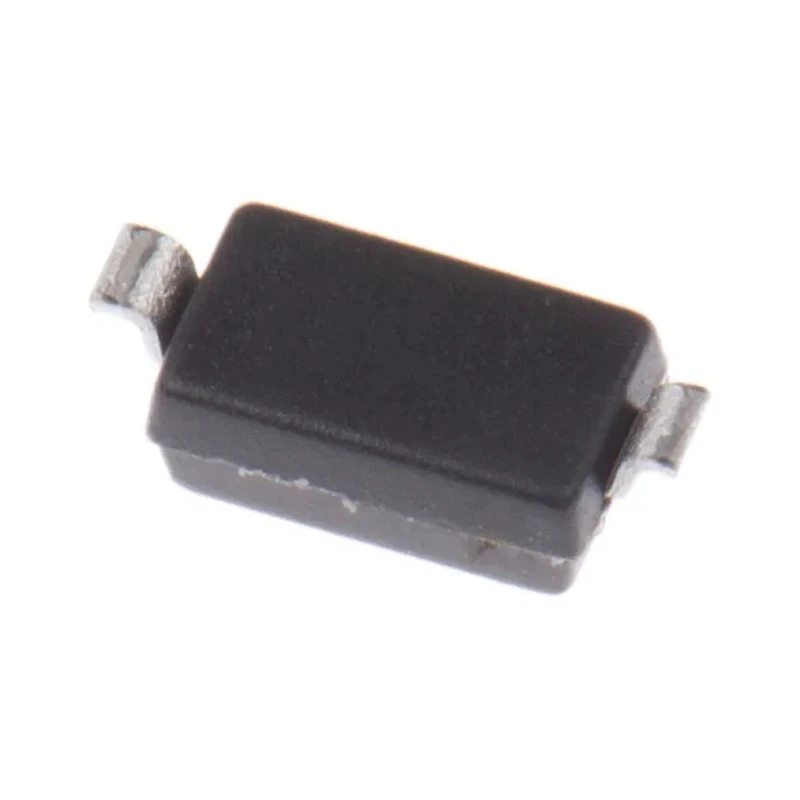

onsemi 1.15 V Zener Diode Single 500 mW 5 % Tolerance Surface Mount 2-Pin SOD-123 MMSZ5245BT1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 1.15 V Zener Diode Single 500 mW 5 % Tolerance Surface Mount 2-Pin SOD-123 MMSZ5245BT1G

Name: onsemi 1.15 V Zener Diode Single 500 mW 5 % Tolerance Surface Mount 2-Pin SOD-123 MMSZ5245BT1G
Brand: onsemi
SKU: 196990
Price: 0.05 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.35mm
Length	3.86mm
Model	MMSZ5245BT1G
Mount Type	Surface
Series	MMSZ52
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	8.5mA
Maximum Reverse Leakage Current	100nA
Nominal Zener Voltage Vz	15V
Zener Type	Voltage Regulator
Maximum Zener Impedance	16Ω
Surface Mount case	SOD-123
15V Zener diode,MMSZ5245B 500mWBrand	ON Semiconductor

Key Features

Single element diode configuration with 2-pin surface mount design.
Operates at a nominal Zener voltage of 15 V with 5% tolerance.
Maximum power dissipation capacity of 500 mW suitable for compact electronics.
Test current of 8.5 mA and maximum Zener impedance of 16 Ω ensures stable voltage regulation.
Supports operating temperature range from -55°C to 150°C.
Compact SOD-123 package dimensions with 3.86 mm length and 1.35 mm height.
Maximum reverse leakage current is low at 100 nA for improved reliability.
Complies with RoHS standards for environmental safety.

Product Description

onsemi MMSZ5245BT1G is a high-performance Zener diode designed for voltage regulation applications in electronic circuits. This single diode device features a nominal Zener voltage of 15 V with a tolerance of ±5%, allowing precise voltage control.

The device comes in a compact surface mount SOD-123 2-pin package, measuring 3.86 mm in length and 1.35 mm in height, making it suitable for high-density PCB layouts. It supports a maximum power dissipation of 500 mW on FR-4 or FR-5 boards, ensuring capability for moderate power handling.

The diode operates reliably within a temperature range of -55°C to 150°C, making it suitable for diverse industrial environments. Its low maximum reverse leakage current of 100 nA and maximum Zener impedance of 16 Ω contribute to efficient voltage regulation and minimal power loss.

This component complies with RoHS environmental standards and does not conform to specialized automotive requirements. Its 8.5 mA test current rating confirms stable performance for typical electronic designs.

Applications include use as a voltage regulator in industrial electronics, power management circuits, and discrete semiconductor assemblies. The small SMD footprint facilitates integration into compact devices requiring regulated voltage references.

Single element diode configuration with 2-pin surface mount design. Nominal Zener voltage: 15 V with 5% tolerance. Maximum power dissipation: 500 mW. Test current: 8.5 mA for stable electrical characteristics. Temperature range: -55°C to 150°C operation capability.

Compact SOD-123 package for space saving on circuit boards. Low maximum reverse leakage current of 100 nA. RoHS compliant for environmental safety. Suitable for industrial and electronic component applications. Explore more semiconductor and Zener diode options in EnvMart's comprehensive catalogue for industrial, manufacturing, and electronic design needs.

Explore more products in our Zener Diodes category.
