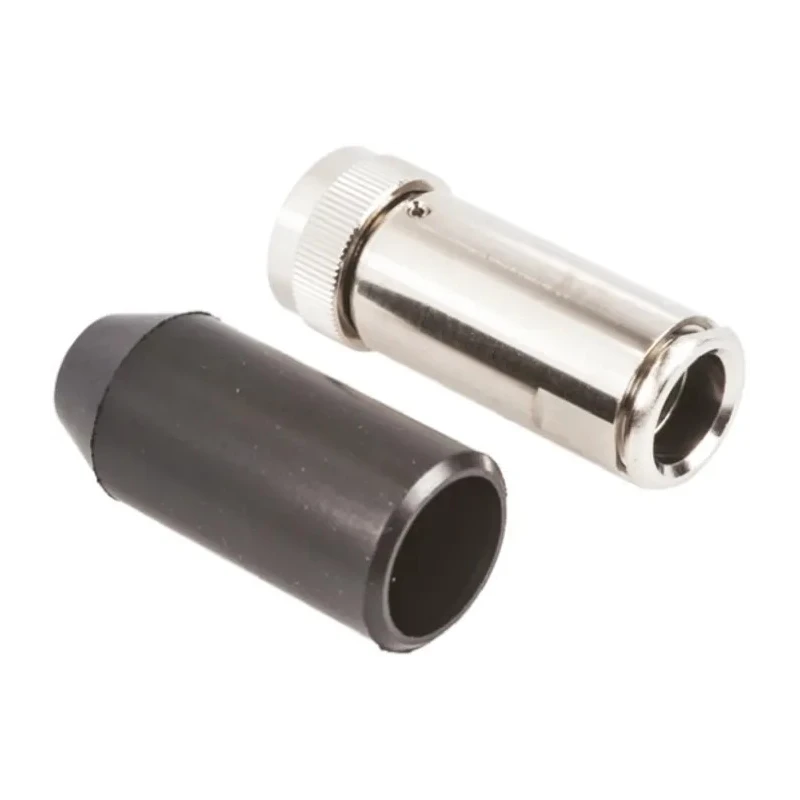

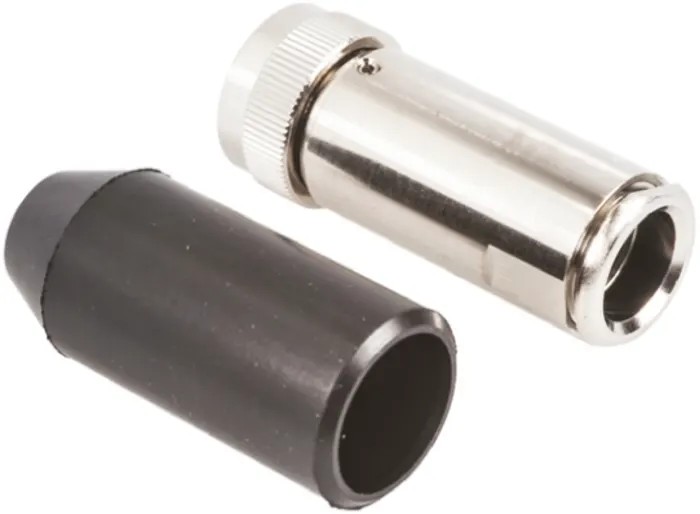

Hirose Miniature Circular Connector 20 Contacts, Cable Plug, Female, IP67, IP68, 100V, 2A, HR22 Series
Specifications
| Country of Origin | Indonesia |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | HR22 |
| IP Rating | IP67, IP68 |
| Mount Type | Cable |
| Housing Material | Brass |
| Contact Material | Bronze |
| Series | HR22 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 20 |
| Contact Plating | Silver |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Shell Size | 12 |
| Mating Type | Screw Lock |
| Connector Size | Miniature |
| Plug/Socket | Plug |
Key Features
- The connector supports a voltage of 100V and a current rating of 2A.
- It features a screw lock mating type for secure connections.
- The shell size is 12 with a straight orientation for easy cable assembly.
- Contact material is bronze with silver plating for optimal conductivity and corrosion resistance.
- Housing is made of brass, ensuring durability and strength.
- Termination is by crimp type, providing reliable contact performance.
- Operating temperature ranges from -25°C to 85°C suitable for various environments.
- The connector is part of the HR22 series, noted for compact design and waterproof capabilities.
Product Description
Hirose HR22-12WTPA-20SC(73) is a miniature industrial circular connector designed for demanding environments requiring reliable and waterproof connectivity. It is a 20-contact female cable plug rated for 100V and 2A current, making it suitable for electronic power and connector applications.
The connector features a brass housing with nickel-plated zinc alloy shell, delivering robust protection against mechanical and environmental stresses. Its PBT insulator and silver-plated bronze contacts ensure excellent conductivity and durability.
Equipped with a screw lock mating mechanism, this connector prevents accidental disconnection due to vibration, enhancing operational reliability in industrial automation and machine tool motor interfaces.
With an IP67 and IP68 rating, this connector provides superior water and dust resistance for use in harsh conditions. It operates effectively within -25°C to 85°C temperature range, suitable for various industrial and manufacturing environments.
The compact shell size 12 and straight orientation provide easy cable management and assembly. Its crimp termination ensures secure electrical contact, minimizing signal loss and maintenance requirements.
Supports 20 contacts for multiple signal or power connections. Miniature size suitable for space-constrained applications. Female cable plug configuration designed for reliable mating. Screw lock mating type for secure connections.
Durable brass housing and silver-plated bronze contacts. Operating temperature range from -25°C to 85°C. Waterproof with IP67 and IP68 ratings. Manufactured in Indonesia adhering to quality standards.
This Hirose circular connector is ideal for industrial automation, machine tool motor controls, electrical power distribution, and other commercial electronic component applications requiring high reliability and environmental protection.
Browse the wide range of Industrial Circular Connectors at EnvMart for advanced connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a voltage of 100V and a current rating of 2A.
The Hirose HR22 connector has an IP67 and IP68 rating, providing excellent water and dust resistance.
The housing is made of brass, while the contacts are bronze with silver plating for optimal conductivity and corrosion resistance.
It operates effectively within a temperature range of -25°C to 85°C, suitable for various environments.
This connector supports 20 contacts, allowing for multiple signal or power connections.
It features a crimp termination type, ensuring reliable contact performance.
The shell size of this connector is size 12, designed for compact applications.
This model uses a screw lock mating mechanism to prevent accidental disconnection due to vibration.
The connector has a straight orientation, facilitating easy cable assembly.
This connector is manufactured in Indonesia.
It is suitable for industrial automation, machine tool motor controls, and electrical power distribution.
This connector is classified as a miniature connector, ideal for space-constrained applications.
