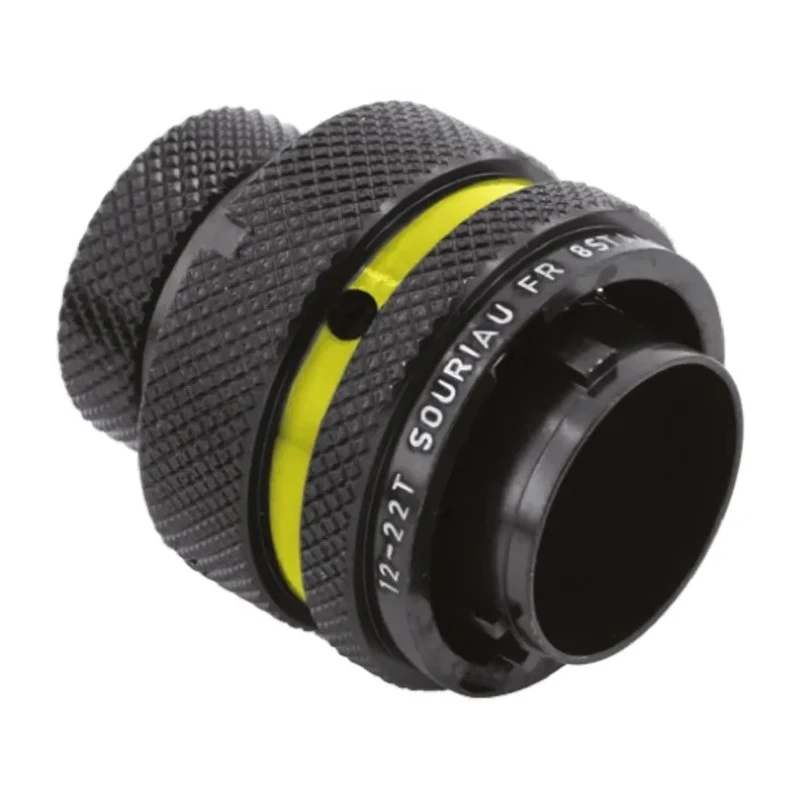

Souriau Sunbank by Eaton Circular Connector 37 Contacts Cable Standard Plug Male IP67 1000V Bayonet 8STA61435PA
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1000V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 5A |
| Model | 8STA61435PA |
| IP Rating | IP67 |
| Mount Type | Cable |
| Body | Aluminium alloy, conductive black zinc plated |
| Housing Material | Aluminium |
| Contact Material | Copper |
| Series | 8STA |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 37 |
| Contact Gender | Male |
| Shell Size | 14 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Coding | A |
Key Features
- Constructed with lightweight aluminium housing with conductive black zinc plating.
- Designed for motorsport and military applications requiring robust, vibration-resistant connectors.
- Features bayonet mating type for quick 1/3 turn positive locking with audible click.
- Gold plated copper alloy contacts ensure reliable electrical performance.
- Operates reliably between -55°C and 175°C temperature range.
- IP67 rated for protection against dust ingress and water immersion up to 1 metre for 30 minutes.
- Connector size standard with straight orientation and colour coded band for easy identification.
- Rated at 1000V voltage and 5A current capacity.
Product Description
Souriau Sunbank by Eaton 8STA61435PA circular connector is an industrial-grade cable mount plug connector with 37 contacts designed to perform reliably under harsh and demanding conditions. Constructed from lightweight aluminium alloy with conductive black zinc plating, this standard size connector offers robust protection and durability, making it ideal for motorsport, military, UAV, and other high-vibration environments.
The 8STA series connectors comply with MIL-DTL-38999 specifications and incorporate a quick bayonet mating system that requires only a 1/3 turn with an audible click, facilitating rapid and secure connections. Its straight orientation and colour-coded banding system allow for effortless and error-free mating in complex wiring assemblies.
Electrically, the connector supports a voltage rating of 1000V and a current rating of 5A, with gold plated copper alloy contacts ensuring superior conductivity and corrosion resistance. The connector is IP67 rated, offering dust-tight protection and water immersion defense up to a 1-meter depth for at least 30 minutes. It operates reliably over a broad temperature range from -55°C to 175°C.
The plug connector is designed for cable mounting and comes complete with contacts and an extraction tool, simplifying installation and maintenance tasks. Its compact, lightweight design along with shock resistance of 300g for 3 milliseconds and vibration tolerance at 147m/s² (10 to 2000 Hz) makes it well suited for industrial, laboratory, construction, automotive, aerospace, and military applications.
Lightweight aluminium housing with conductive black zinc plating for durability. Bayonet quick mating lock providing secure connection. Gold plated copper contacts for high reliability. IP67 rating for protection against dust and water ingress.
Wide operating temperature range from -55°C to 175°C. Shock and vibration resistant for harsh environments. Standard size 14 with 37 contacts and colour-coded banding for easy identification. Supports 1000V voltage and 5A current carrying capacity.
Complete with contacts and extraction tool for ease of use.
This connector is ideal for applications demanding robust, reliable circular connectors such as in motorsports, military equipment, UAV systems, ground vehicles, and infantry interconnections. Explore the Electronics & Electricals category for more industrial circular connector solutions at EnvMart.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 1000V voltage and has a current capacity of 5A.
It has an IP67 rating, providing protection against dust ingress and water immersion up to 1 meter for 30 minutes.
The connector is constructed from lightweight aluminium alloy with conductive black zinc plating, and the contacts are made from gold plated copper alloy.
It operates reliably between -55°C and 175°C.
This connector features 37 contacts.
It uses a bayonet mating type, allowing for a quick 1/3 turn connection with an audible click.
It is suitable for motorsport, military, UAV, and other high-vibration environments.
The connector has a straight orientation, which aids in easy installation.
The shell size of this model is 14.
Yes, it comes complete with contacts and an extraction tool for ease of use during installation and maintenance.
It has a shock resistance of 300g for 3 milliseconds.
It is designed to tolerate vibrations at 147m/s² across a frequency range of 10 to 2000 Hz.
