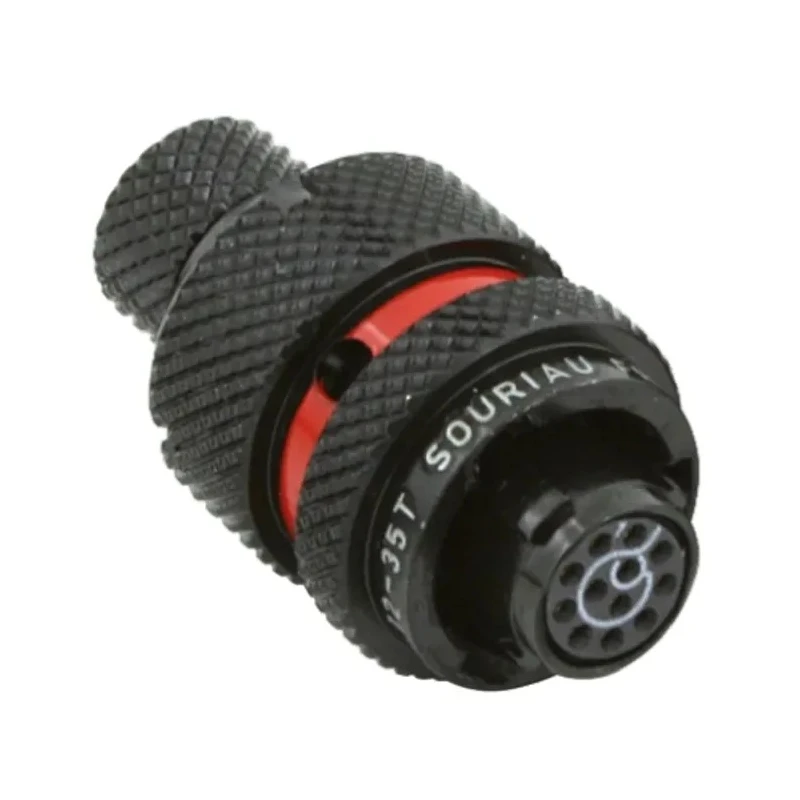

Souriau Sunbank by Eaton Circular Connector, 12 Contacts, Cable Mount, Standard Size, Plug Female, IP67 8STA60812SN
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1000V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 45A |
| Model | 8STA60812SN |
| IP Rating | IP67 |
| Mount Type | Cable |
| Body | Alluminium alloy, conductive black zinc plated |
| Housing Material | Aluminium |
| Contact Material | Copper |
| Series | 8STA |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Shell Size | 8 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Coding | N |
Key Features
- Durable aluminium housing with conductive black zinc plating.
- Gold plated copper alloy contacts provide excellent conductivity.
- IP67 rated for water and dust ingress protection.
- Operates reliably from -55°C to 175°C temperature range.
- Compact and lightweight design for motorsport and industrial use.
- Quick mating bayonet lock with 1/3 turn and audible click.
- Complies with MIL-DTL-38999 specifications for rugged performance.
- Colour coded banding system for easy identification.
Product Description
Souriau Sunbank by Eaton 8STA60812SN circular connector is a high-performance connector designed primarily for motorsports and robust industrial applications. This plug connector features 12 female contacts configured for cable mounting with a standard size shell size 8, ensuring compatibility with multiple wiring systems.
Featuring an aluminium alloy housing with conductive black zinc plating, it provides excellent resistance against corrosion and mechanical wear. The gold plated copper alloy contacts ensure reliable electrical connections with high conductivity and durability.
Rated at IP67, this connector guarantees waterproof and dustproof performance, capable of withstanding immersion up to 1 meter for 30 minutes. It operates effectively over a wide temperature range from -55°C to 175°C, making it suitable for extreme environments often encountered in motorsport and military applications.
Its quick mating bayonet lock requires just a 1/3 turn with an audible click, allowing fast and secure connections. The connector also incorporates a colour coded banding system for straightforward identification, minimizing connection errors.
This product conforms to MIL-DTL-38999 military specifications, providing shock resistance up to 300g for 3 milliseconds and vibration resistance at 147m/s² from 10 to 2000Hz. These features ensure reliable operation under severe mechanical stress and vibration conditions.
The Souriau 8STA series is ideally suited for Formula 1, MotoGP, WRC, NASCAR, and other motorsport applications, as well as military, UAV, ground vehicles, and infantry interconnection systems where size, weight, and reliability are critical design factors.
Durable aluminium housing with conductive black zinc plating. Gold plated copper alloy female contacts. IP67 rated for protection against dust and water ingress. Wide operating temperature range from -55°C to 175°C. Quick mating bayonet lock for fast, secure connections.
Colour coded bands for easy identification. Shock and vibration resistant to MIL-DTL-38999 specifications. Ideal for motorsport, military, and industrial use. Explore Souriau Sunbank by Eaton’s extensive range of Industrial Circular Connectors on EnvMart for reliable, high-quality connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has an IP67 rating, providing protection against dust and water ingress, and can withstand immersion up to 1 meter for 30 minutes.
It operates effectively over a wide temperature range from -55°C to 175°C, making it suitable for extreme environments.
This connector features 12 female contacts configured for cable mounting.
The housing is made of aluminium alloy with conductive black zinc plating, and the contacts are made of gold plated copper alloy.
It is rated for a maximum current of 45A and a voltage of 1000V.
It uses a quick mating bayonet lock that requires just a 1/3 turn with an audible click for secure connections.
The shell size of this model is standard size 8.
Yes, it conforms to MIL-DTL-38999 military specifications, ensuring rugged performance under severe conditions.
It is ideally suited for motorsport applications such as Formula 1 and MotoGP, as well as military and industrial uses.
This model is classified as a plug connector with a straight orientation.
The connector incorporates a colour coded banding system for easy identification, which helps minimize connection errors.
It is designed to withstand shock resistance up to 300g for 3 milliseconds and vibration resistance at 147m/s² from 10 to 2000Hz.
