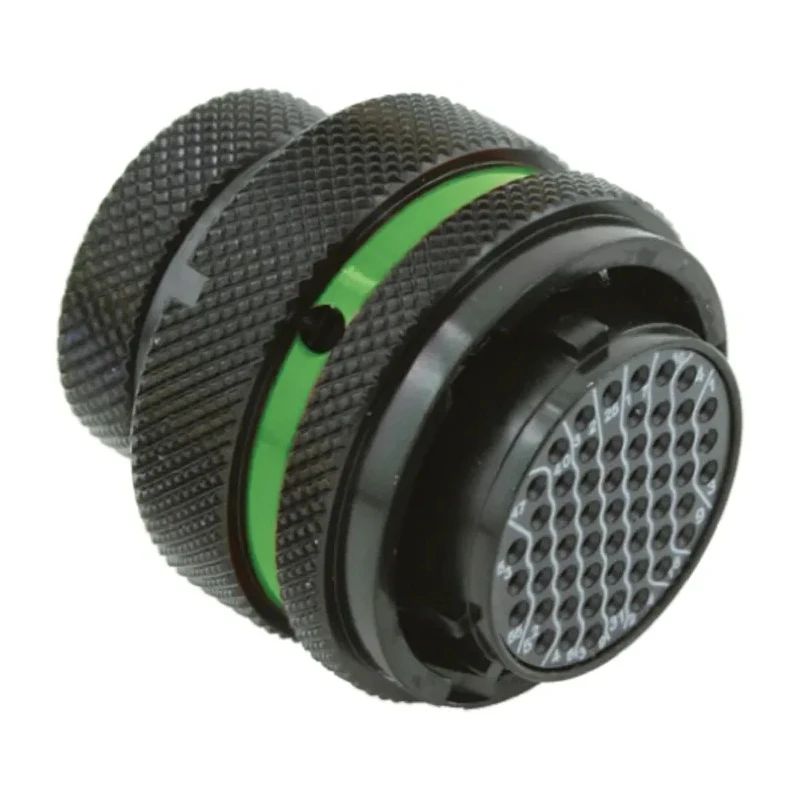

Souriau Sunbank by Eaton Circular Connector, 55 Contacts, Cable Mount, Standard Size, Plug Female, IP67, 1000V 8STA61635SD
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1000V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 5A |
| Model | 8STA61635SD |
| IP Rating | IP67 |
| Mount Type | Cable |
| Body | Aluminium alloy, conductive black zinc plated |
| Housing Material | Aluminium |
| Contact Material | Copper |
| Series | 8STA |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 55 |
| Contact Gender | Female |
| Shell Size | 16 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Coding | D |
Key Features
- Offers 55 gold-plated copper alloy contacts ensuring superior conductivity and corrosion resistance.
- Features a compact, lightweight aluminium housing with conductive black zinc plating.
- Rated IP67 for protection against dust and water immersion up to 1 metre for 30 minutes.
- Operates reliably from -55°C to 175°C, suitable for extreme temperature conditions.
- Designed with a quick mating bayonet lock that mates with 1/3 turn and produces an audible click.
- Meets durability requirements with shock resistance of 300g for 3ms and vibration tolerance up to 147 m/s².
- Ideal for motorsport, military, UAVs, ground vehicles, and other rugged industrial environments.
- Standard connector size 16 with D coding ensuring correct mating and orientation.
Product Description
Souriau Sunbank by Eaton 8STA61635SD circular connector plug female is a premium industrial-grade connector featuring 55 gold-plated copper alloy contacts housed in a durable aluminium alloy body with conductive black zinc plating. This cable-mount, standard size 16 connector is engineered for high reliability in extreme conditions, supporting operation from -55°C to 175°C and rated IP67 for protection against dust ingress and water immersion up to 1 meter for 30 minutes.
Designed primarily for demanding motorsport applications such as Formula 1, Moto GP, WRC, and Nascar, as well as military and UAV systems, the 8STA series connectors provide exceptional shock and vibration resistance. The connector mates via a quick bayonet lock system requiring only a 1/3 turn and produces an audible click, ensuring secure and rapid connections.
The colour-coded banding allows for easy identification and correct mating. The connector features a female contact gender configuration and D coding to prevent mismatching. The design is lightweight yet robust, meeting MIL-DTL-38999 derived specifications for harsh environments and maintaining EMI-RFI shielding integrity.
Key features include 300g shock resistance for 3 ms, vibration endurance up to 147 m/s² between 10 and 2000 Hz, and 100% scoop proof contacts. Supplied complete with high-quality contacts and an extraction tool, this connector series is ideal for industrial, laboratory, motorsport, military, UAV, agricultural, and rugged commercial applications that require reliability in environmental extremes.
55 gold-plated copper contacts ensure excellent electrical performance. Lightweight aluminium alloy body with conductive black zinc plating for robust protection. IP67 rated for dust-tight and water immersion protection.
Wide operating temperature range from -55°C to 175°C. Quick mating bayonet lock system with audible 1/3 turn click. Excellent shock and vibration resistance suitable for motorsport and military use. Colour coded for easy identification and orientation.
Compatible with MIL-DTL-38999 derived specifications. Complete with contacts and extraction tool for maintenance.
This Souriau Sunbank by Eaton 8STA61635SD connector is a high-performance product from a renowned brand, engineered to provide dependable connections in the harshest environments. Whether used in industrial automation, motorsport electronics, or military equipment, it offers unmatched reliability and durability. Explore more connectors and related products in the Industrial Circular Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 175°C.
This connector is rated IP67, providing protection against dust and water immersion up to 1 meter for 30 minutes.
It features 55 gold-plated contacts made of copper alloy.
It uses a quick bayonet lock mating mechanism that requires a 1/3 turn and produces an audible click for secure connection.
The current rating for the 8STA61635SD connector is 5A.
The body is made of aluminium alloy with conductive black zinc plating, while the contacts are made of copper with gold plating.
The minimum operating temperature is -55°C.
This connector is suitable for demanding environments such as motorsport, military, UAVs, and rugged industrial applications.
The shell size of this model is 16.
It features D coding to ensure correct mating and orientation, preventing mismatching.
The connector has a shock resistance of 300g for 3 milliseconds.
It is supplied complete with high-quality contacts and an extraction tool for maintenance.
