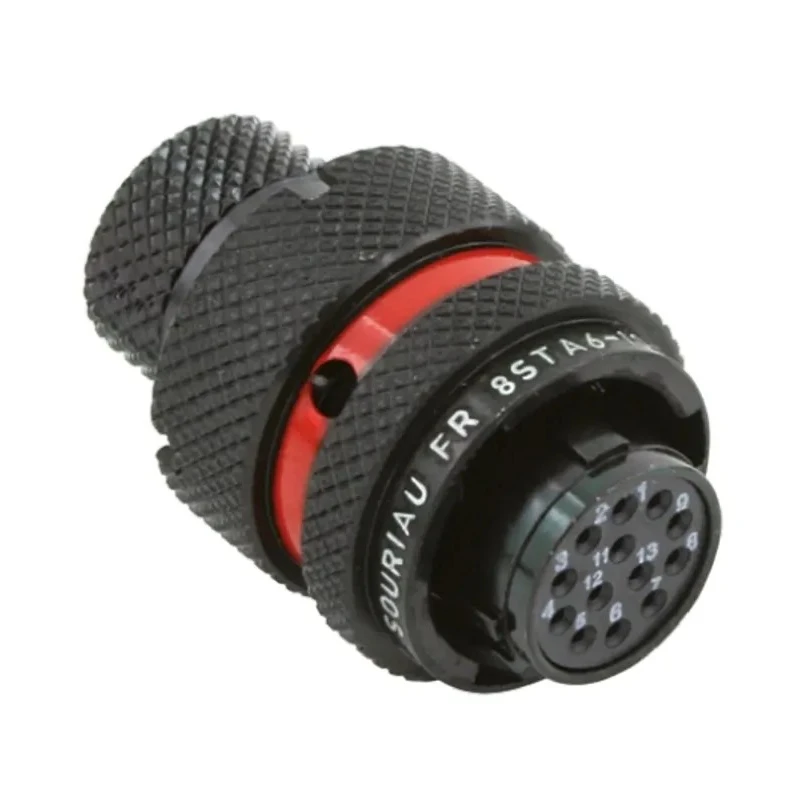

Souriau Sunbank by Eaton Circular Connector, 13 Contacts, Cable Mount, Standard Size 10 Plug, Female Contact 8STA61035SN

Souriau Sunbank by Eaton 8STA61035SN is a 13-contact circular connector designed for cable mount applications, offering a standard size 10 plug with female contacts. Rated for IP67, it withstands harsh environmental conditions including water immersion and vibration. Operating on a 1000V voltage rating with a 5A current capacity, this connector provides reliable performance in demanding industrial and motorsport contexts.

The connector incorporates a bayonet mating mechanism, allowing for quick and secure 1/3 turn mating with an audible click confirmation to prevent accidental disconnections. Its aluminium alloy housing with conductive black zinc plating ensures durability and lightweight design. Gold-plated copper contacts provide excellent conductivity and corrosion resistance, vital for high-performance applications.

Designed to endure shock resistance of 300g for 3ms and vibration up to 147m/s2 from 10 to 2000Hz, the 8STA series connectors meet the rigorous demands of motorsport and military sectors. The colour coded banding system simplifies connector identification and enhances operational efficiency.

The IP67 rating guarantees protection against dust and water ingress, suitable for immersion up to 1 metre for at least 30 minutes. Operating temperature range from -55°C to 175°C makes it suitable for extreme environmental conditions. This connector is ideal for use in Formula 1, Moto GP, WRC, Nascar, and other motorsports, as well as military UAVs, ground vehicles, and infantry applications where size, weight, and durability are crucial.

Featuring EMI-RFI shielding, this connector maintains signal integrity in environments with electrical noise. Supplied complete with necessary contacts and extraction tool, the 8STA61035SN model is a robust and versatile choice for industrial, laboratory, construction, automotive, and aerospace sectors requiring compact, reliable circular connectors.

Features a bayonet mating type for quick 1/3 turn connection with audible click. Designed for high vibration and shock environments with resistance up to 300g for 3ms. Constructed with durable aluminium alloy housing and gold plated copper alloy contacts.

Rated IP67 for protection against water immersion up to 1 metre for 30 minutes. Operates reliably in temperatures ranging from -55°C to 175°C. Suitable for motorsport and military applications requiring lightweight, compact connectors.

Includes colour coded banding system for easy identification. Provides EMI-RFI shielding to ensure signal integrity in harsh conditions. Complies with MIL-DTL-38999 standards and designed primarily for motorsport markets.
