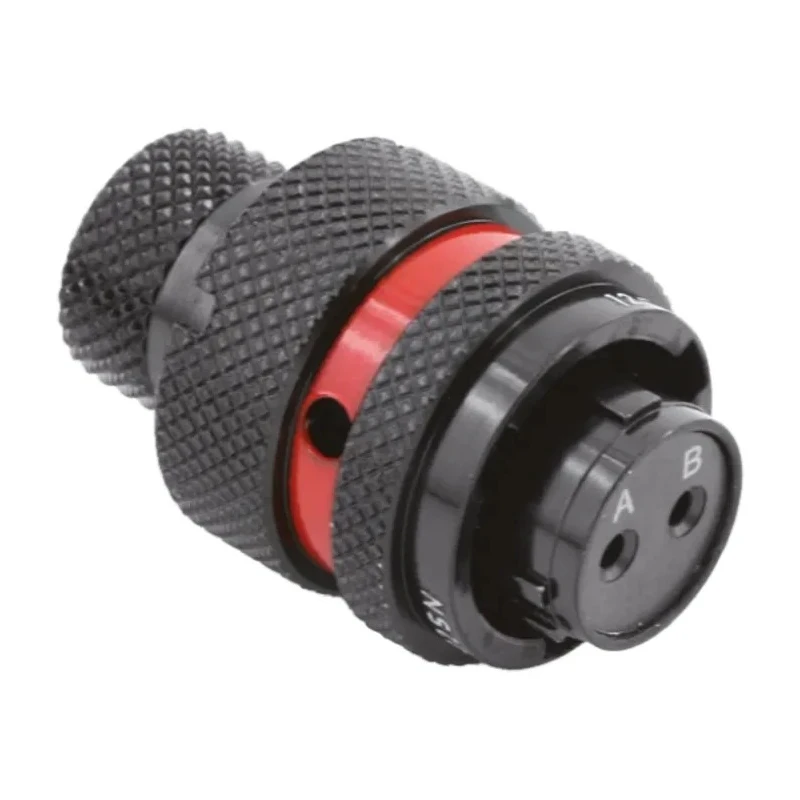

Souriau Sunbank by Eaton Circular Connector, 2 Contacts, Cable Mount, Standard Size 10, Plug Female, IP67 8STA61002SN

Souriau Sunbank by Eaton 8STA61002SN Circular Connector is a 2-contact female cable plug connector designed for demanding industrial and motorsport applications requiring durability and reliability under harsh conditions.

This 8STA series connector features a robust aluminium alloy housing with conductive black zinc plating that provides exceptional resistance to corrosion and mechanical stress. The connector meets MIL-DTL-38999 derived standards and is highly compact and lightweight.

The design incorporates gold plated copper contacts that offer excellent electrical conductivity and long-term resistance against oxidation. The cable mount plug connector is IP67 rated, ensuring full protection from dust ingress and temporary water immersion up to 1-meter depth for 30 minutes.

The connector supports a maximum voltage of 1000V and a current rating of 13A, making it suitable for high performance electronic systems. It employs a quick bayonet mating system with a quarter turn plus audible click for secure and fast connection.

This connector supports a wide operating temperature range from -55°C to +175°C and is resistant to shock up to 300g for 3 milliseconds and vibration from 10 to 2000 Hz, fulfilling critical requirements in motorsport such as Formula 1, Moto GP, WRC, Nascar, and military UAV or ground vehicle applications.

The colour coded banding system allows for easy identification and error-free mating of connectors in complex wiring harnesses. The female plug connector is designed with crimp termination for secure and reliable cable assembly.

Compact and lightweight design ideal for high-vibration environments. Aluminium alloy housing with conductive black zinc plating for durability. Gold plated copper alloy contacts for superior electrical performance. IP67 sealed for dust and temporary immersion protection.

Quick bayonet lock with 1/3 turn and audible click mating. Wide operating temperature range from -55°C to 175°C. Shock resistance 300g for 3 ms and vibration resistance from 10 to 2000 Hz. Colour coded banding for easy identification and mating.

Suitable for motorsport, military, aerospace, and industrial uses. Includes contacts and extraction tool.

Choose Souriau Sunbank by Eaton circular connectors for high quality, rugged, and reliable electrical connections in critical applications. Explore EnvMart for more industrial connector solutions.
