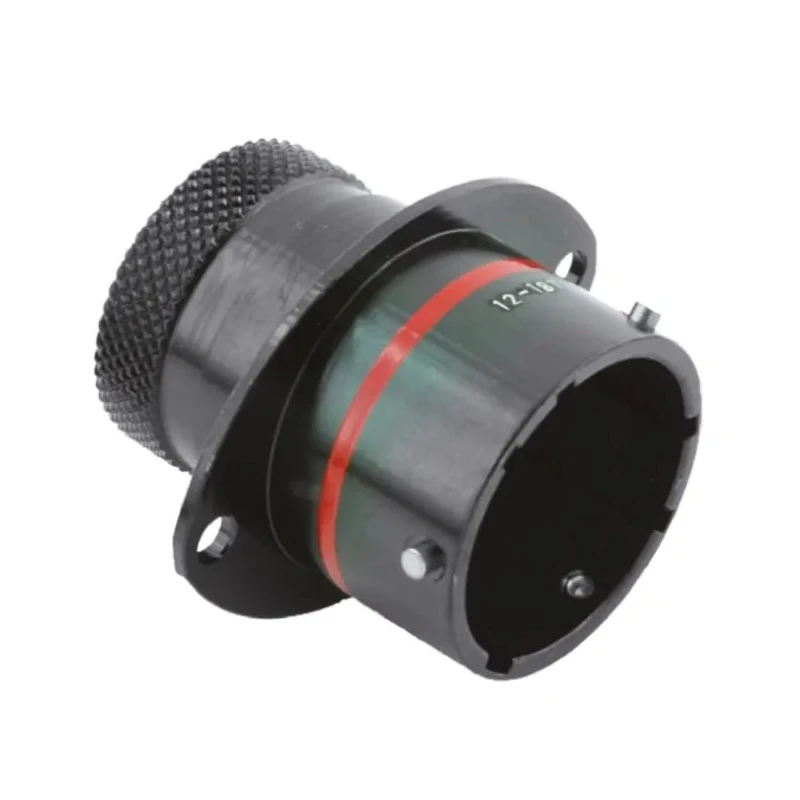

Souriau Sunbank by Eaton Circular Connector 8 Contacts Panel Mount Socket Male IP67 1000V 13A 8STA01608PN

Souriau Sunbank by Eaton 8STA01608PN circular connector offers a durable and lightweight solution with 8 gold plated copper contacts arranged in a standard shell size 16 housing. Designed as a panel mount socket with male contacts, this connector provides IP67 ingress protection, making it suitable for industrial, military, and motorsport use cases where resistance to vibration, shock, and harsh environments is critical.

The connector features a quick bayonet mating type that secures connections with a 1/3 turn and an audible click, facilitating quick assembly and disassembly. The aluminum alloy housing is finished with conductive black zinc plating for added EMI-RFI shielding and durability. Operating voltage reaches up to 1000 volts and supports currents up to 13 amperes, accommodating demanding electrical requirements.

Its compact design and shock resistant properties (300g for 3ms) alongside wide operating temperature tolerance from -55°C to 175°C ensure reliable performance under extreme conditions. The crimp termination enhances connection reliability, while the connector's straight orientation supports easy layout integration. The 8STA series connectors are commonly used in Formula 1, Moto GP, WRC racing, military UAVs, ground vehicles, and other applications where size, weight, and vibration tolerance are key design constraints.

Sourced from France, the 8STA01608PN model provides a robust panel mount circular connector ideal for electronic components requiring high performance connectivity in harsh and demanding operational environments.

Certified IP67 rated for resistant water and dust protection. Features 8 gold plated copper contacts ensuring durable conductivity. Designed with a bayonet mating type for quick and secure connection. Constructed with a lightweight aluminium alloy housing with conductive black zinc plating.

Suitable for harsh environments requiring vibration and shock resistance. Operates at voltages up to 1000V and currents up to 13A. Wide operating temperature range from -55°C to 175°C. Compact size 16 shell with straight orientation and crimp termination type.

Connector socket configured with male contacts. Ideal for motorsport and military applications needing robust, lightweight connectors. Explore more options within the Industrial Circular Connectors category on EnvMart for high quality connectivity solutions.
