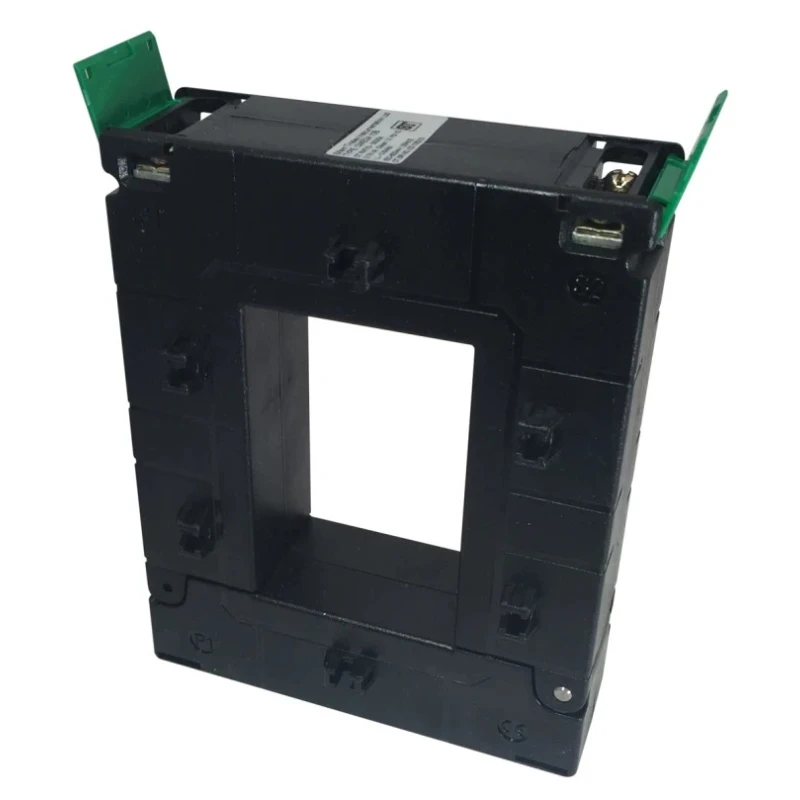

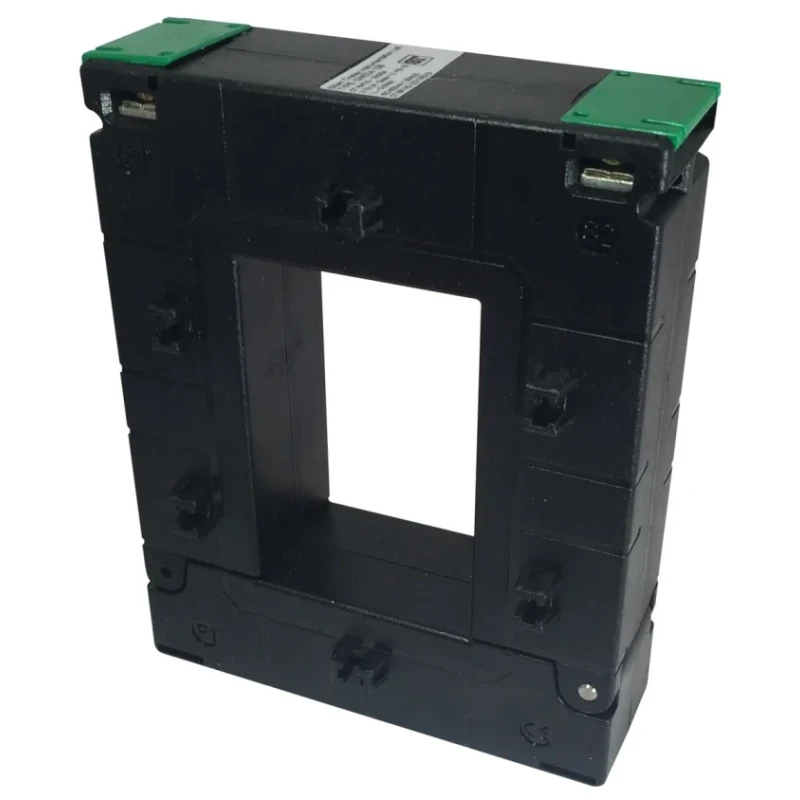

Sifam Tinsley OMEGA 10 Series Current Transformer 5000 A 5A Secondary Current 30mm Bore XS02-325075S 000000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sifam Tinsley |
| Model | XS02-325075S 000000 |
| Depth | 64mm |
| Mount Type | Surface |
| Series | OMEGA 10 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 20°C |
| Bore Diameter | 30mm |
| Secondary current | 5A |
| Insulation Class | E |
| Standards/Approvals | UL 94V-O, EN 60044-1, IEC 61869-1 |
| Primary Current | 5000A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
Key Features
- Compliant with IEC 60044-1 and UL 94V-O standards.
- Features flame retardant grade enclosure for enhanced safety.
- Operates within temperature range of 20°C to 70°C.
- Supports system voltage up to 720 V maximum.
- Installation without breaking the conductor due to split core design.
- Suitable for distribution systems and generator set monitoring.
- Designed for overload protection and control panel integration.
- Operates at frequencies between 50Hz and 60Hz.
Product Description
Sifam Tinsley XS02-325075S 000000 OMEGA 10 Series Current Transformer is engineered for precise current measurement in industrial and commercial electrical systems. With a primary current rating of 5000 A and a 5 A secondary, it ensures reliable current sensing with a compact 30mm bore diameter facilitating easy installation on surface mount points.
This Current Transformer is constructed with a flame retardant grade enclosure conforming to UL 94V-O standards, offering safety and durability under demanding operational environments. The device operates efficiently within a temperature range of 20°C to 70°C and supports system voltages up to 720 V max.

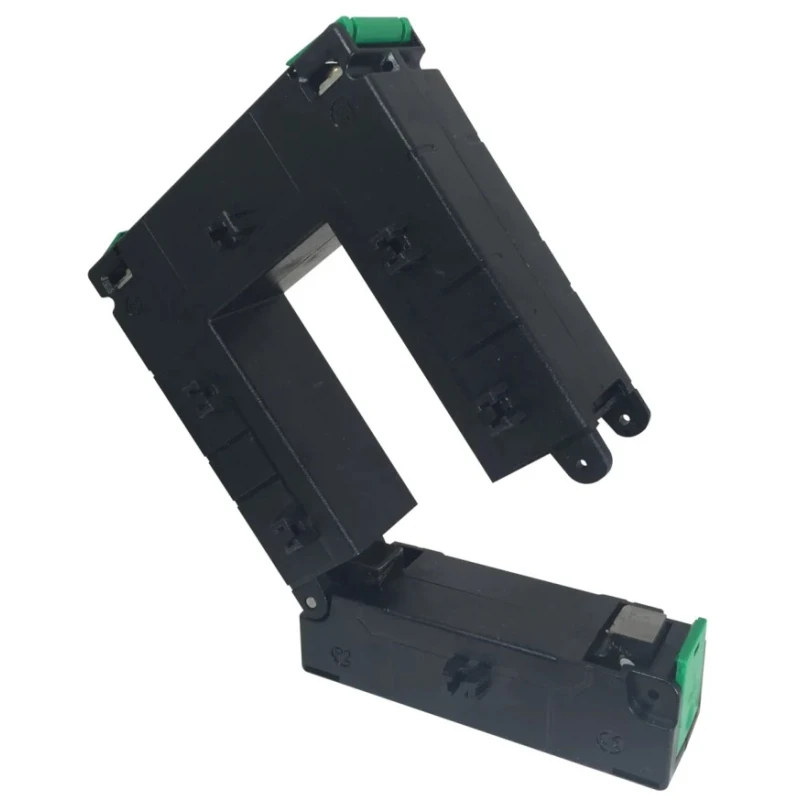

Designed as a split core unit, it allows installation without the need to break the conductor, significantly reducing commissioning time and effort. It meets international standards IEC 60044-1 and BS7626 for performance and safety.
Accuracy classes of 0.5, 1, and 2 provide options for various precision requirements. The OMEGA 10 series transformers are ideal for applications such as distribution systems, generator sets, control panels, and overload protection devices. It is suited for use in industrial automation, electrical power monitoring, and energy management systems operating at 50 to 60Hz frequencies.
Compliant with IEC 60044-1 and UL 94V-O flame retardant standards. Split core design for easy installation and maintenance. Wide operating temperature range: 20°C to 70°C. Supports system voltages up to 720 V maximum. Available accuracy classes suitable for precise current monitoring.
Compact 30mm bore diameter for versatile mounting. Ideal for distribution and generator set monitoring. Ensures reliable overload protection and control panel integration. Operates efficiently at 50-60Hz frequencies.
This product is made in India and is new, suitable for various electrical automation and control gear applications. Browse our Electronics & Electricals category for more industrial electrical components and devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this current transformer is 5000 A.
This model has a secondary current output of 5 A.
The maximum operating temperature for this unit is 70°C.
It complies with UL 94V-O, EN 60044-1, and IEC 61869-1 standards.
The bore diameter of this current transformer is 30mm.
This model operates efficiently at frequencies between 50 Hz and 60 Hz.
It features a split core design that allows for installation without breaking the conductor, facilitating easier setup.
The minimum operating temperature for this current transformer is 20°C.
This unit supports surface mounting.
This series is suitable for applications such as distribution systems, generator sets, control panels, and overload protection devices.
The insulation class of this current transformer is Class E.
This product is manufactured in India.
