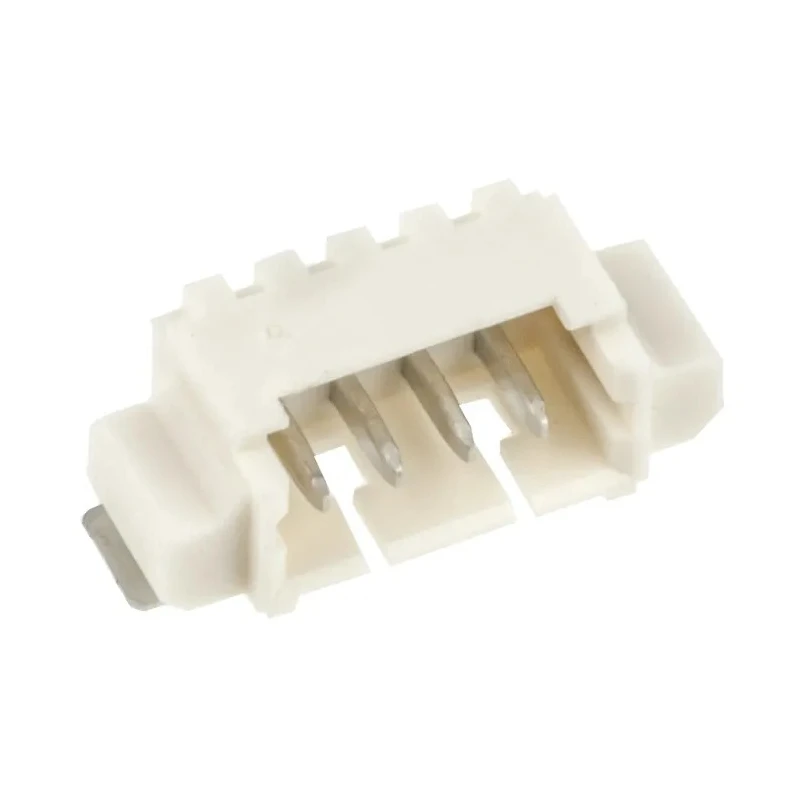

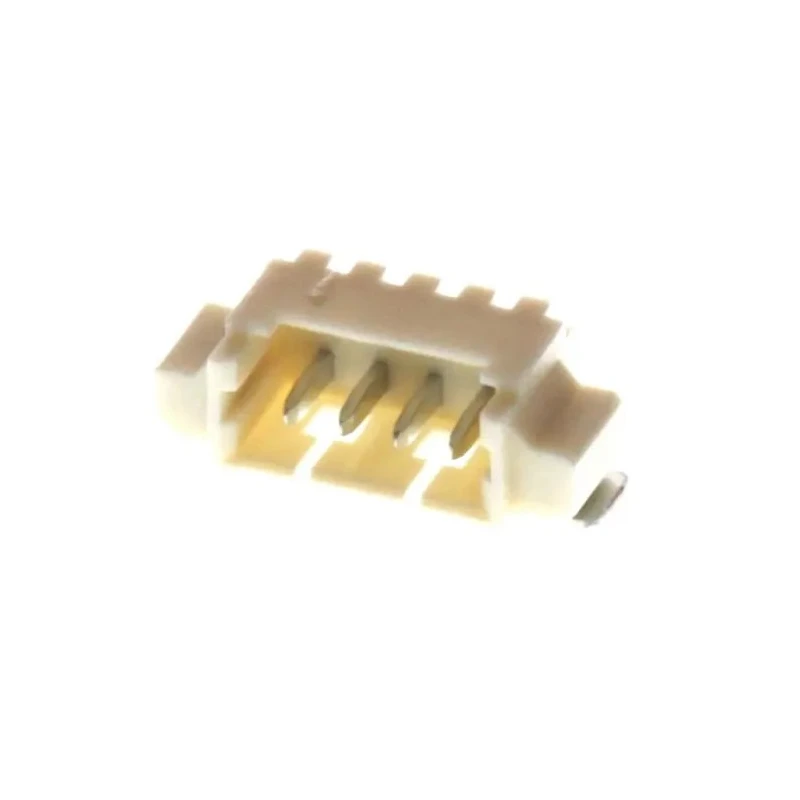

Molex PicoBlade Series Right Angle Surface PCB Header, 4 Contact(s), 1.25 mm Pitch, 1 Row, Shrouded 53261-0471

Molex 53261-0471 PicoBlade Series Right Angle Surface PCB Header is a high-quality electronic connector designed for reliable wire-to-board connections. This header features 4 male contacts arranged in a single row with a compact 1.25 mm pitch, saving valuable PCB space. The shrouded housing made from high-temperature thermoplastic provides durable protection and ensures safe handling.

Designed to accommodate currents up to 1A and voltages up to 125V per contact, this PCB header is suitable for low-power electronic applications. Its right-angle orientation enables better fitting in space-constrained areas, providing flexibility in PCB design. The friction locking mechanism engages securely to prevent accidental disconnections caused by vibration or handling.

Featuring phosphor bronze contact material with tin plating, the contacts offer excellent corrosion resistance and long service life. The header's surface mount design allows strong solder connections to PCBs, enhancing mechanical stability and electrical performance.

Operating in temperature ranges from -40°C to 105°C, this Molex header can withstand extreme environments typically encountered in industrial and commercial applications. It is widely used in security systems, telecommunications, medical equipment manufacturing, and automotive industries where reliable interconnection is critical.

The Molex PicoBlade connector family, including the 53261 series, is engineered to provide up to 45% PCB space savings compared to larger pitch connectors while maintaining a high current rating. This makes it an excellent choice for modern compact electronics.

The right-angle configuration allows for compact and efficient PCB layouts. The shrouded design protects contacts from damage and interference, improving signal integrity. Corrosion-resistant tin-plated phosphor bronze contacts ensure durability.

Thermoplastic housing tolerates extreme operating temperatures for versatile applications. Friction lock provides secure mating connection to withstand vibration and mishandling.

This Molex PCB Header is an essential component for designers and manufacturers requiring a space-efficient, reliable, and robust connector solution for low-power electronic assemblies.
