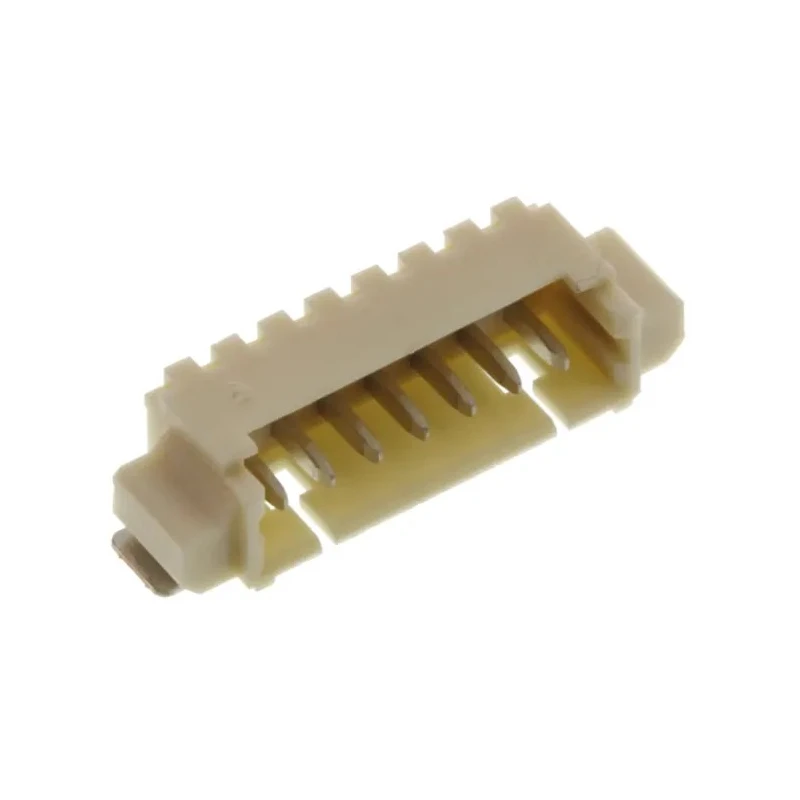

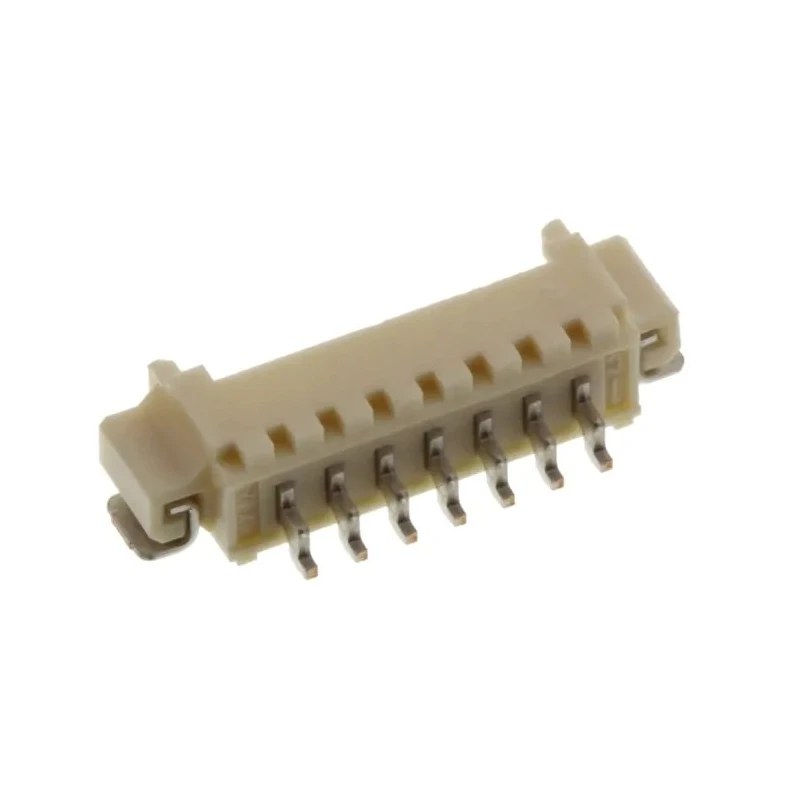

Molex PicoBlade Series Right Angle Surface PCB Header 7 Contact 1.25 mm Pitch 1 Row Shrouded 53261-0771
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact 1.25 mm pitch design saves up to 45% PCB space compared to 2.00 mm systems.
- 7 male contacts provide a reliable electrical connection with 1 A current capacity.
- Right angle orientation ideal for surface mounting applications requiring space efficiency.
- Polyamide housing material ensures robustness and electrical insulation.
- Phosphor bronze contacts plated with tin for corrosion resistance and conductivity.
- Shrouded design enhances connector protection and prevents accidental unmating.
- Solder termination type suitable for SMT with solder tabs for strain relief and secure PCB retention.
- Operating temperature range from -40°C to 105°C supports demanding environmental conditions.
Product Description
Molex 53261-0771 PicoBlade Series Right Angle Surface PCB Header is a high-quality PCB connector engineered for wire-to-board interconnections with a compact 1.25 mm pitch. This model features 7 male contacts arranged in a single row with a right angle orientation, optimizing PCB real estate and enabling secure, friction-lock mating with its shrouded housing.
The connector’s polyamide housing offers durability and excellent insulation, while the phosphor bronze contacts plated with tin ensure reliable conductivity and resistance to corrosion. Solder termination with dedicated solder tabs provides superior retention on the PCB and strain relief to prevent joint cracking from mechanical stress during assembly or use.
Operating effectively across a temperature range of -40°C to 105°C, this PCB header is ideally suited for industrial, automotive, medical, and audio/video equipment where space savings and dependable wire-to-board connections are crucial. The PicoBlade system allows up to 45% reduced PCB space compared to larger 2.00 mm pitch connectors without compromising on performance, maintaining a 1 A current rating.
The shrouded design combined with a friction locking mechanism prevents accidental disconnection due to vibration or mishandling, enhancing reliability in harsh environments. This connector is surface-mounted and manufactured in Malaysia, assuring stringent quality standards.
Compact design with 1.25 mm pitch for space efficiency. 7 male contacts supporting 1 A current load. Right angle orientation suits SMT surface mounting. Durable polyamide housing with shrouded protection. Phosphor bronze contacts with tin plating for conductivity and corrosion resistance.
Secure solder termination with strain relief solder tabs. Operates from -40°C to 105°C for demanding applications. Friction locking mechanism prevents accidental unmating. Ideal for automotive, industrial, and medical device interconnections.
Explore related PCB Headers and connectors for electronics assembly in the EnvMart catalogue to complete your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this header is 1.25 mm, which allows for a compact design that saves up to 45% PCB space compared to 2.00 mm systems.
This model features 7 male contacts arranged in a single row, providing a reliable electrical connection.
The connector supports a current capacity of 1 A, making it suitable for various applications.
It operates effectively within a temperature range of -40°C to 105°C, suitable for demanding environmental conditions.
This model features a solder termination type with dedicated solder tabs for secure PCB retention and strain relief.
The housing is made of polyamide, which provides durability and excellent electrical insulation.
The header has a right angle orientation, ideal for surface mounting applications that require space efficiency.
The contacts are made of phosphor bronze and are plated with tin to enhance conductivity and corrosion resistance.
This model features a shrouded design, which enhances connector protection and prevents accidental unmating.
The Molex PicoBlade Series header is manufactured in Malaysia, ensuring adherence to stringent quality standards.
This PCB header is suitable for applications in industrial, automotive, medical, and audio/video equipment, where reliable wire-to-board connections are crucial.
