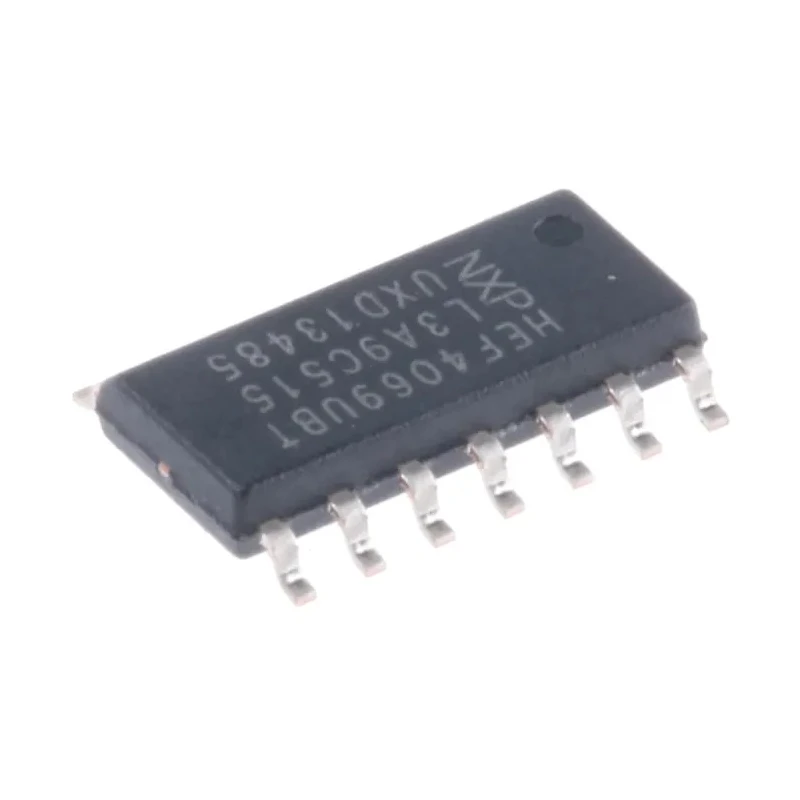

Nexperia Hexagon Unbuffered Inverter 6 Elements 14-Pin SOIC HEF4069UBT,652

Nexperia HEF4069UBT,652 Hexagon Unbuffered Inverter is a 6-element CMOS logic IC packaged in a 14-pin SOIC surface mount form factor. It operates with a wide voltage range of 3V to 18V and delivers a maximum propagation delay time of 90ns at a load capacitance of 50pF, making it suitable for diverse timing and switching applications in electronic circuits.

This device supports operating temperatures between -40°C and 125°C, providing reliable performance in harsh industrial and commercial environments. The inverter functions without Schmitt Trigger inputs, enabling standard unbuffered switching behavior at a maximum supply voltage of 15V. Maximum high and low-level output currents are -4.2mA and 4.2mA, respectively.

The compact dimensions of 8.75mm length, 4mm width, and 1.45mm height allow space-efficient PCB layouts. It meets the JEDEC JESD 13-B approval standards, ensuring compliance with industry requirements for logic ICs.

The HEF4069UB series is widely used in industrial automation, consumer electronics, instrumentation, and communication systems requiring CMOS logic inverters with multiple elements in a single chip.

Wide operating voltage range from 3 to 18 volts. Compact 14-pin SOIC surface mount package. High operating temperature range from -40°C to 125°C. Maximum propagation delay of 90ns ensures fast switching. Reliable JEDEC JESD 13-B standards compliance.

6 inverter elements integrated to optimize board space. Designed for industrial and commercial electronic applications.

This product is manufactured in Thailand and represents a dependable choice for logic inverter requirements in electronics design and development. Browse EnvMart’s comprehensive semiconductor catalog for more Nexperia logic devices and related components.
